Challenges of Urban Environments

Urban settings brim with hurdles that can obstruct GPS signal reception.

Signal Obstructions

Signal blockages pose a major worry in cityscapes. Towering edifices and thick constructions can hinder the straight path between the GPS antenna and satellites. This leads to signal attenuation and multipath effects. Consequently, accuracy diminishes. Sometimes, signals vanish entirely.

• Buildings: Skyscrapers and lofty structures create substantial barriers. They restrict satellite visibility. Plus, signals ricochet off surfaces. This triggers multipath interference.
• Trees: Thick leaves in city parks and along roads can hamper GPS signals too. This happens especially in spots with tall, lush trees.
• Bridges and Overpasses: These features cause brief signal interruptions. As devices pass beneath, connectivity falters temporarily.

Electromagnetic Interference

Electromagnetic interference (EMI) presents another hefty obstacle in urban zones. A flood of gadgets and high-frequency machines produces considerable noise. This disrupts the faint GPS signals. As a result, the signal-to-noise ratio drops. Decoding satellite data becomes tricky for the receiver.

• Electronic Devices: Phones, Wi-Fi routers, and other tech emit radio waves. These can clash with GPS signals noticeably.
• High-Frequency Machinery: Industrial tools and radio broadcasters generate potent EMI. Nearby GPS reception suffers accordingly.
• Power Lines and Substations: Electrical setups add to the interference. This effect intensifies close to such infrastructure.

GPS Installation Tips for Urban Settings

To counter urban challenges, several smart practices can optimize installation. These tips focus on using quality equipment, conducting regular maintenance, utilizing signal boosters, managing cables effectively, and ensuring adequate training and awareness among users.

Use Quality Equipment

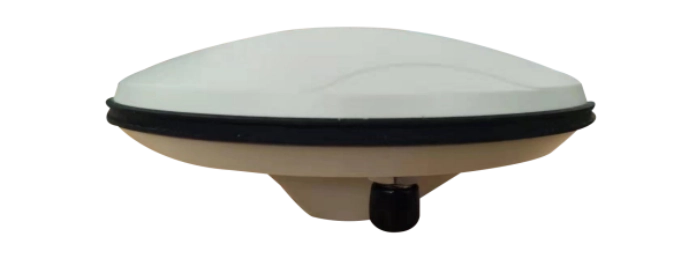

Spending on premium GPS antennas built for tough use is vital. Seek sturdy, weather-resistant traits that endure rough conditions. Quality equipment reduces upkeep woes over time.

• Industrial-Grade Antennas: Pick antennas crafted for rugged environments. They resist withstand vibration, temperature variations, and exposure to the elements..
• GNSS Antennas: Opt for GNSS antennas supporting various satellite networks (GPS, GLONASS, Galileo, BeiDou). They deliver enhanced precision and dependability.
• Active GPS Antennas: Choose active GPS antennas. These amplify signals adeptly. They overcome weakening from blockages and noise.

Regular Maintenance

Plan frequent check-ups to keep your antenna tip-top. Look for barriers, confirm solid mounts, and check links. Steady care wards off wear-related troubles.

• Visual Inspections: Examine antennas often for dents, rust, or loose parts. This keeps them in prime shape.
• Obstruction Removal: Clear debris like branches or snow around the antenna. This restores clear signal paths.
• Connection Verification: Confirm all cables stay tight and rust-free. This ensures smooth signal flow.

Utilize Signal Boosters

In spots with feeble signals, employ boosters to lift reception. These tools strengthen GPS signals cleanly, preserving precision.

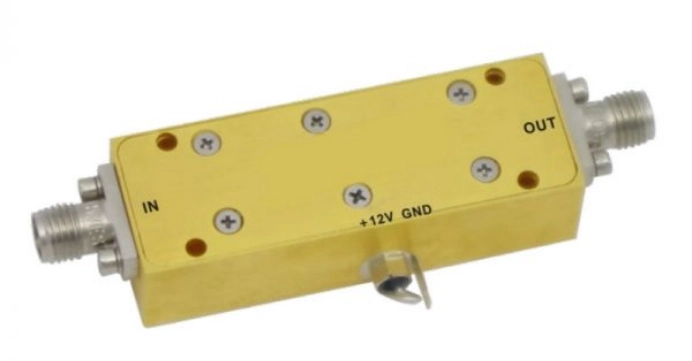

• Inline Amplifiers: Fit amplifiers between antenna and receiver. They heighten signal power and improve noise ratios.
• Low Noise Amplifiers (LNAs): Use LNAs to enhance weak signals quietly. They keep added noise low, ensuring clear data.
• Note that RFecho has Low Noise Amplifiers.

Cable Management

Arrange and shield cables with trays or pipes. Tidy cabling not only looks nicer. It also prevents signal drops from damage or weak joins.

• Cable Routing: Guide cables far from interference sources like power lines or gadgets. This cuts disruption risks.
• Cable Shielding: Use shielded cables to curb signal leaks. They guard against outside noise well.
• Secure Connections: Tighten and seal all cable links. This blocks moisture and keeps signals strong.

Training and Awareness

Ensure your crew grasps why GPS antenna placement and care matter. Boosting awareness about barriers and noise equips them to spot and flag issues early.

• Educational Programs: Hold sessions to teach GPS basics and placement tips. This builds team savvy.
• Reporting Protocols: Set clear steps for flagging signal woes or blockages. Quick fixes follow naturally.
• Documentation: Keep thorough records of antenna spots, care timetables, and fix guides. They simplify lookups.

Key Considerations for Effective Antenna Placement

Smart antenna siting relies on vital elements like clear views, height boosts, noise dodging, right angles, and solid testing. These factors maximize GPS precision and trustworthiness in cities.

Line of Sight

Your antenna craves an open sky view. Steer clear of tall builds or gear that might block signals. A cleverly placed antenna links to many satellites at once. This is key for spot-on results.

• Rooftop Mounting: Placing antennas on roofs offers a wide sky view. It cuts building-related blocks sharply.
• Strategic Positioning: Set antennas away from building rims. This avoids signal bounces and distortions.
• Open Spaces: Use parks or squares for clear sky access. They reduce obstructions nicely.

Height and Elevation

Raising the antenna markedly improves signal catch. Roof mounts or high platforms lessen barriers. A rise of 2-3 meters can transform performance.

• Elevated Platforms: Fix antennas on tall stands or masts. This lifts them above ground clutter effectively.
• Rooftop Masts: Add masts on roofs to top obstacles like HVAC units. It works wonders.
• Vertical Clearance: Keep enough height from nearby builds. This slashes signal cuts.

Avoiding Interference

Place the antenna distant from EMI-emitting devices. High-frequency tools, radios, and lights can muddle reception. A swift noise check saves future grief.

• Distance from EMI Sources: Keep a safe gap from power lines, transformers, or tech. This lowers interference odds.
• Shielding: Add shielding to fend off EMI from nearby gear. It protects well.
• Frequency Filtering: Use filters to block stray signals. They keep GPS frequencies clear.

Orientation

Aligning the antenna per its specs is crucial. Many work best in set directions for peak signal grab. Always check the maker’s advice.

• North Alignment: Point antennas north as advised. This often maximizes satellite hits.
• Tilt Adjustment: Tweak the angle to catch more satellites. It varies by location.
• Polarization Matching: Match antenna polarization to incoming signals. This ensures top signal flow.

Testing and Calibration

After installation, thorough testing is a must. Track signal strength and precision often to nab issues early. Tools like signal strength meters aid tweaks and fixes.

• Signal Strength Monitoring: Use signal strength meters to gauge GPS levels. They pinpoint weak zones fast.
• Accuracy Testing: Run precision checks to spot errors. This keeps data true.
• Calibration: Tune the GPS setup regularly. It locks in reliable results.

RFecho: Your Reliable GPS Antenna Supplier

RFecho stands tall as a prime provider of high-performing antennas and RF parts, including GPS antennas for diverse uses. With years of know-how and a drive for fresh ideas, RFecho offers a broad array of GPS antennas. They’re built to tackle tough urban settings.

• RFecho provides GPS antennasdesigned for satellite positioning systems such as GPS, GALILEO, and GLONASS.
• The company offers active antennas integrated with low-noise amplifiers for high gain and compact design.
• RFecho has a wide range of antennas available, and is equipped to provide custom antenna solutions for specific project needs.

Conclusion

In industrial zones where steady positioning and navigation reign supreme, where you place your GPS antenna shapes its success hugely. By weighing factors like clear views, height, and noise risks, firms can sharpen GPS precision and system strength. With thoughtful prep and action, companies can harness their GPS setups fully. This ensures smooth links and trusty tracking, even in tough spots. By choosing quality gear, sticking to regular checks, and building team smarts, you craft a sturdy GPS backbone. It fuels your work goals solidly. As industrial tech marches forward, smart GPS antenna siting stays a bedrock of smooth operations.
