New Flat-Panel Technology Could Replace Conventional Antennas Used in Wireless Communication

In a recent breakthrough, researchers at USA’s Los Alamos National Laboratory, have developed a new mirror reflector solution to replace the 3-D dishes and microwave horns installed on rooftops and cell towers. The new flat-panel mirror solution is compact, versatile and better adapted for modern communication technologies.

The new reflectors, according to Abul Azad, of the MPA-CINT group at Los Alamos National Laboratory, offers lightweight, low-profile alternatives to conventional antennas. This can be a potential boon for satellites, where minimizing weight and size is crucial. The panels could be easily incorporated onto surfaces of buildings or terrestrial vehicles as well.

Most reflectors are reciprocal: in the case of a bathroom mirror, for example, if you can see someone reflected in it, they can see you too. The new reflector design breaks reciprocity, effectively turning it into a one-way mirror.

The flat-panel reflector can be controlled electronically, which means its characteristics can be reconfigured on the fly. This opens the window for beam steering, customized focusing, and other functions that are difficult to achieve with conventional antenna designs. Miniaturized versions could improve chip-based circuitry by ensuring that signals go only to the intended components and don’t lead to inadvertent signals in other parts of the circuit, a problem that chip designers often have to worry about.

The reflectors are composed of an array of finely structured electronic components on a planar surface. Applying signals to the components allows the 2-D reflector to perform much like a 3-D antenna, and in some cases do things no conventional antenna could do. This sort of a device is known as a “metasurface” because its characteristics can be electronically changed to act in different ways without modifying the physical shape of the surface.

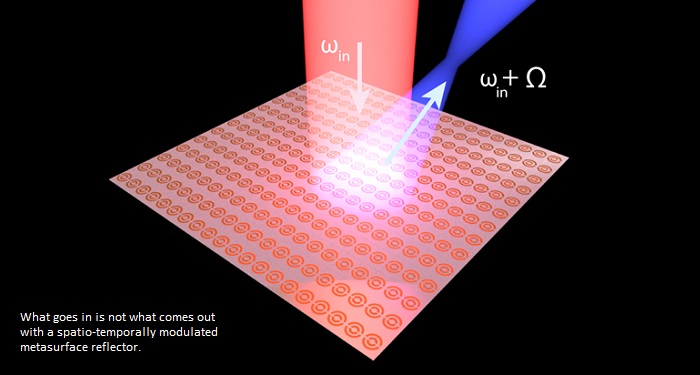

By applying electrical signals to the reflector components, the researchers managed to modulate the metasurface to control the direction and frequency of reflected light. The nonreciprocal response of the reflector can help prevent antennas from picking up echoes from their outgoing broadcasts and protect delicate circuitry from powerful, potentially damaging incoming signals.

According to Diego Dalvit, of the T-4 group at Los Alamos, the researchers have demonstrated the first dynamic metasurface capable of achieving extreme non-reciprocity by converting microwaves into plasmons, which are electric charge waves on the reflector’s surface. This is key to controlling the way the reflectors function.

The new Los Alamos reflector platform opens exciting opportunities in various applications, including adaptive optics that can account for distortions that disrupt signals, one-way wireless transmission, and novel antenna designs.

The research was funded through the Laboratory Directed Research and Development program at Los Alamos National Laboratory.

Click here to read the published research paper.
