0.8 GHz to 18 GHz 2 WAY OPD-0818-2-S With SMA Female Connectors - RFecho

OPD-0818-2-S (1)

OPD-0818-2-S (1)

OPD-0818-2-S (1)

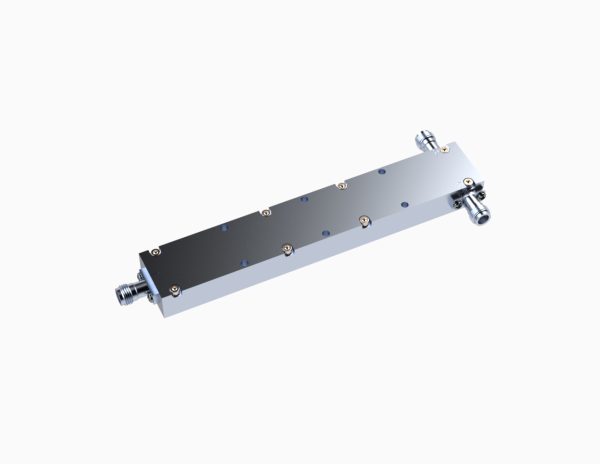

0.8 GHz to 18 GHz 2 WAY OPD-0818-2-S With SMA Female Connectors

0 out of 5

( There are no reviews yet. )

SKU: OPD-0818-2-S Categories: 2 Way RF Power Divider, RF Power Dividers, Routing

Add To Quote List

Description
Additional information
Reviews (0)

Description

Outline

PDF

Band Pass Filter Datasheet (Click to download)

Additional information

Min. Frequency (GHz)	0.6
Max. Frequency (GHz)	18
Amplitude Balance (dB) Max	±0.5
Excess Insertion Loss (dB)	2
Phase Balance (°) Max	±5
Input Power (W) Max	1
