1.0mm 110 GHz, 0.009″ Accept Pin Diameter, Thread-In Step-Thread Male Connector
This Model D101-P09-Y05-A is a Male connector. 1.0mm connector is rugged and durable, featuring a 360° raised grounding ring and operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, and the industry’s lowest VSWR 1.2:1, insertion loss 0.6 dB, and RF leakage ≤ -100 dB.
1.00mm (W) Connector offer the frequency range from DC to 110 GHz, with Thread-In Step-Thread mounting 1.00mm (W) Connector has an accept pin diameter of 0.009″inches.
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
1.00mm (W) Connector |
|
|
1.0mm 110 GHz, 0.009″ Accept Pin Diameter, Thread-In Step-Thread Male Connector |
|
|
D101-P09-Y05-A |
|
|
This Model D101-P09-Y05-A is a Male connector. 1.0mm connector is rugged and durable, featuring a 360° raised grounding ring and operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, and the industry’s lowest VSWR 1.2:1, insertion loss 0.6 dB, and RF leakage ≤ -100 dB. 1.00mm (W) Connector offer the frequency range from DC to 110 GHz, with Thread-In Step-Thread mounting 1.00mm (W) Connector has an accept pin diameter of 0.009″inches. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
DC |
|
Max. Frequency (GHz) |
110 |
|
Flange (inch) |
NA |
|
Mounting |
Thread-In Step-Thread |
|
Accept Pin Diameter (inch) |
0.009″ |
|
Gender |
Male |
|
Features |
|
|
Low VSWR |
|
|
Free through 110 GHz |
|
|
Applications |
|
|
Telecom Communication |
|
|
Sub-assemblies |
|
|
Radio equipment and instruments |
|
|
Wireless Communication |
|
|
Test Labs |
|
|
Instrumentations |
|

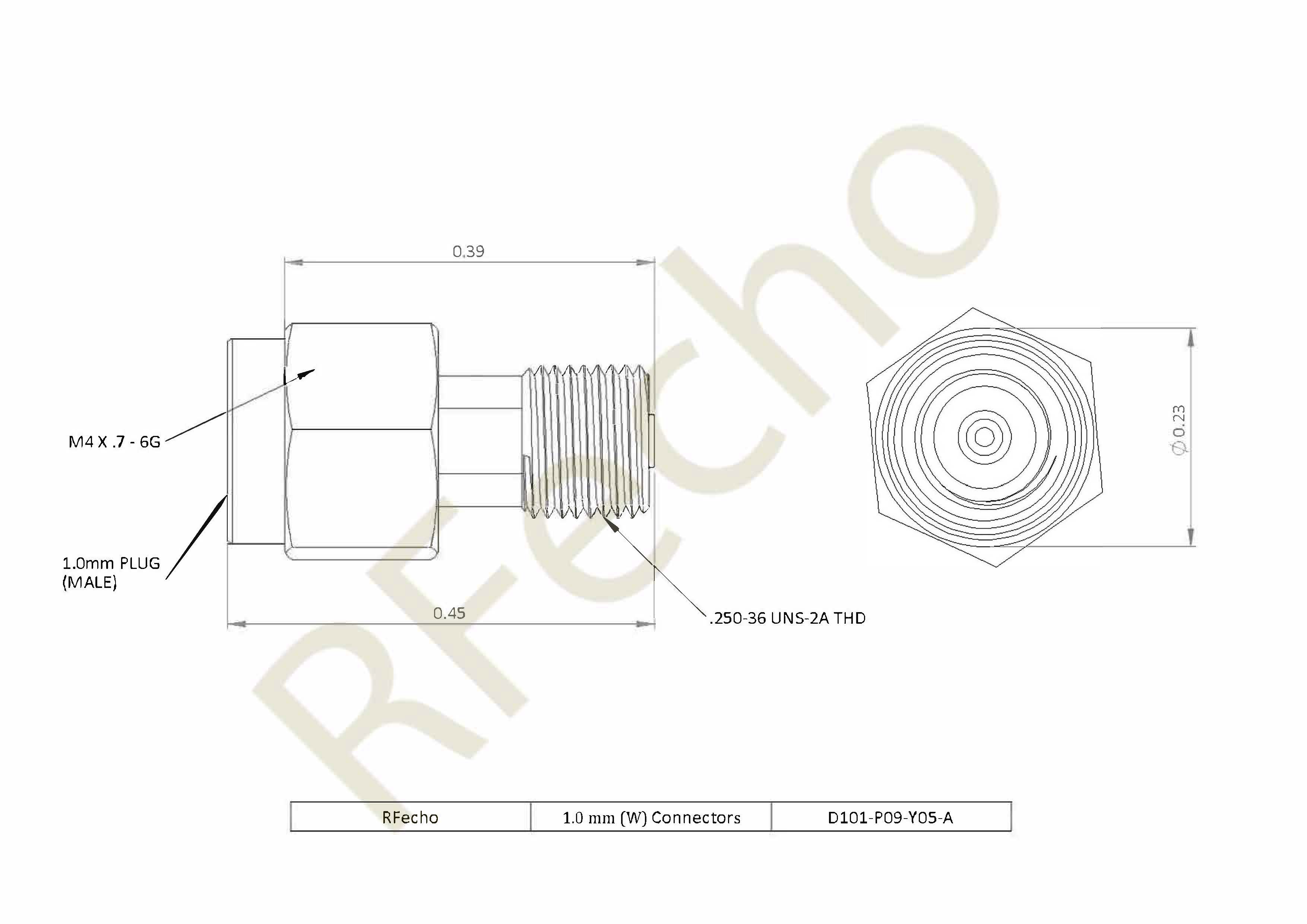

Outline

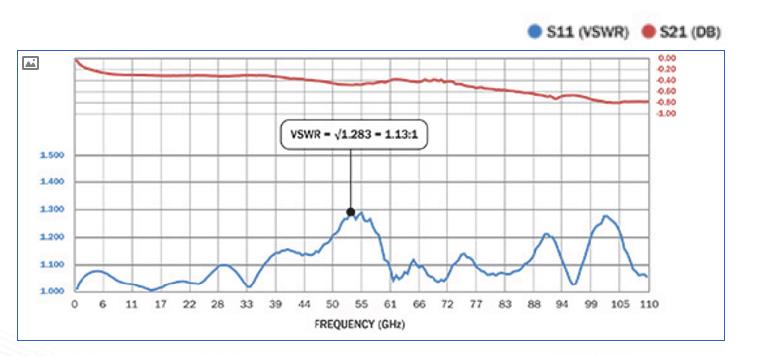

Plot
Additional information
| Min. Frequency (GHz) | DC |
|---|---|
| Max. Frequency (GHz) | 110 |
| Flange (inch) | |
| Mounting | |
| Accept Pin Diameter (inch) | |
| Gender |
