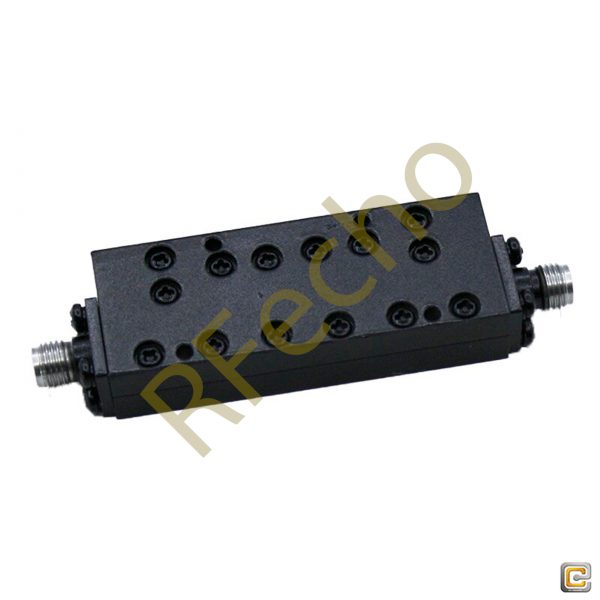

High Pass RF Microwave Filter 1.25GHz to 12GHz Cavity RF High Pass Filter rejection ≥ 50dB @ DC～0.98GHz with SMA Female Connector

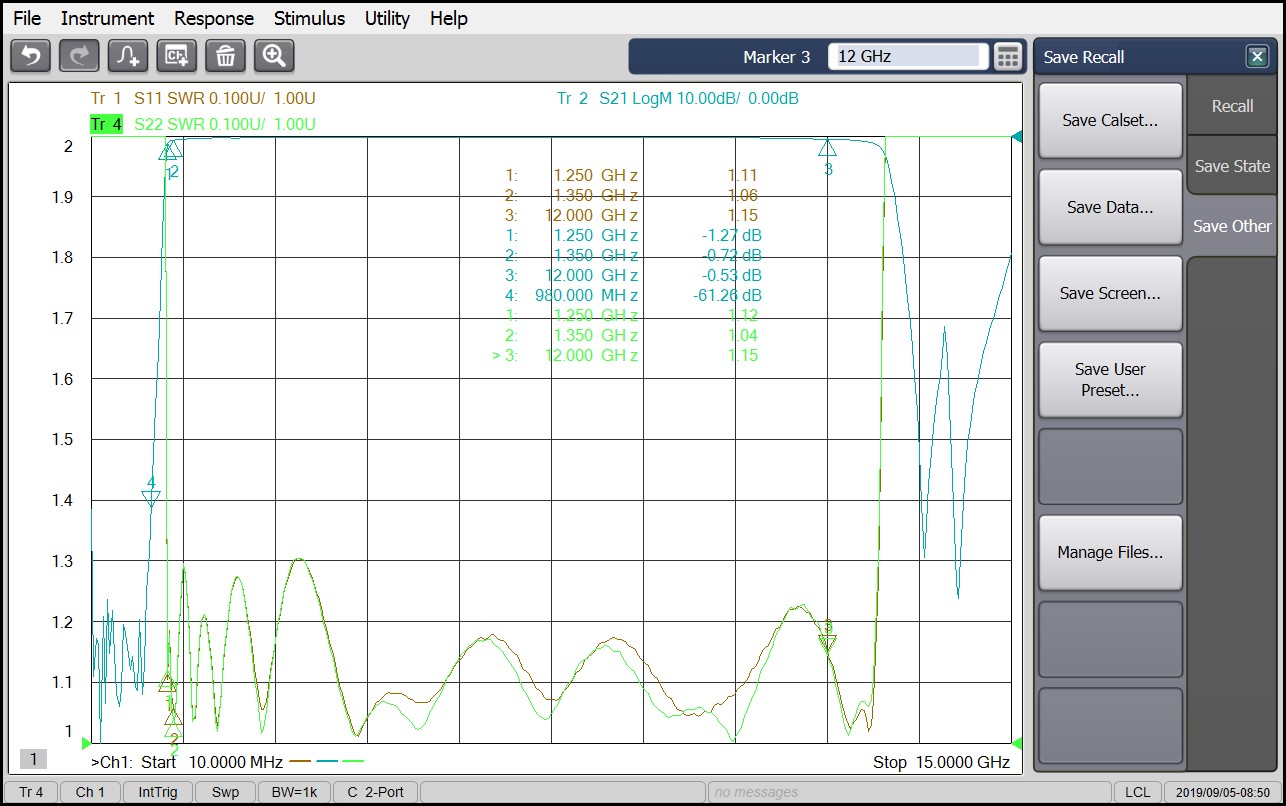

High Pass RF Microwave Cavity Filter model OHP: 1250-12000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This High Pass RF Microwave Cavity Filter Manufactured with a passband frequency from 1.25GHz to 12GHz and a Cut-off frequency 1.25GHz. Our Cavity RF High Pass Filter provides a nominal insertion loss of ≤1.5dB @ 1.25GHz – 1.35GHz | ≤1.0dB @ 1.35GHz – 12GHz across its passband and a typical rejection of ≥50dB @ DC – 0.98GHz. Since the high end cutoff frequency of High Pass RF Microwave Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Cavity RF High Pass Filter has Passband VSWR of ≤1.5:1 and power handling of ≤15W. High Pass RF Microwave Filter is manufactured with SMA Female Connector and Net weight of 0.0314Kg.
1.25GHz to 12Hz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 1.25GHz to 12GHz High Pass RF Microwave Filter is ready for shipping worldwide after purchase. Additional specs of this Cavity RF High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.
