OPD-15265-3-S (1)

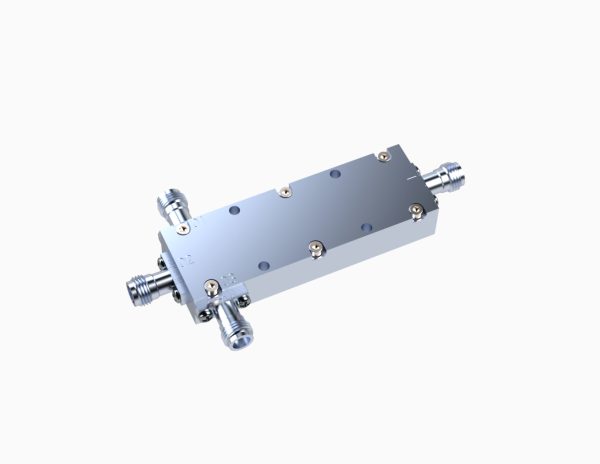

1.5 GHz to 26.5 GHz 2 WAY OPD-0616-3-S With SMA Female Connectors

300kHz to 3 GHz Power 2 WAY ODP-0033-2-HI-S With SMA Female Connectors
0.6 GHz to 16 GHz 2 WAY OPD-0616-3-S With SMA Female Connectors
0 out of 5
( There are no reviews yet. )

SKU: OPD-0616-3-S Categories: 3 Way RF Power Divider, RF Power Dividers, Routing
Add To Quote List

Description

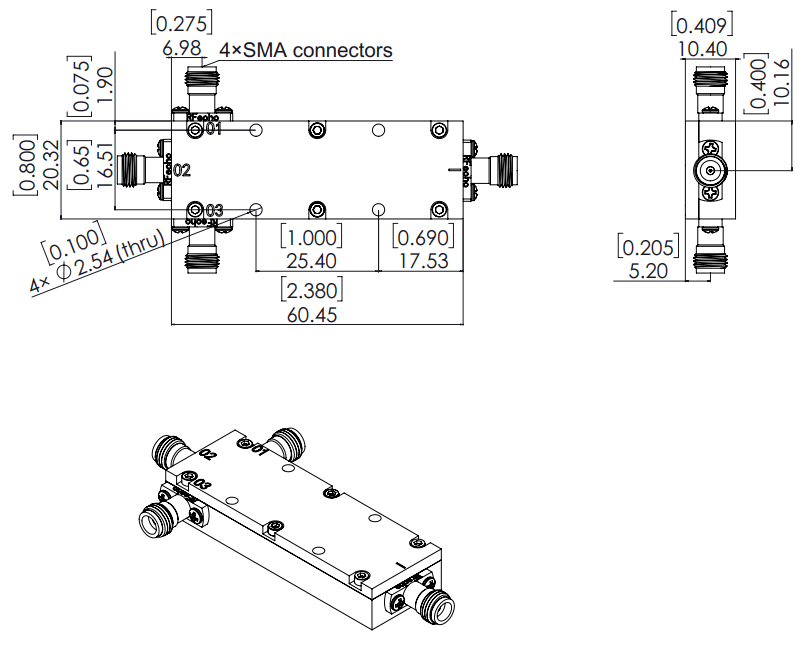

Outline

PDF

Band Pass Filter Datasheet (Click to download)

Additional information

Min. Frequency (GHz)

1.5
Max. Frequency (GHz)

26.5
Amplitude Balance (dB) Max

±0.9
Excess Insertion Loss (dB)

3
Phase Balance (Degrees)

±12
Input Power (W) Max

1
