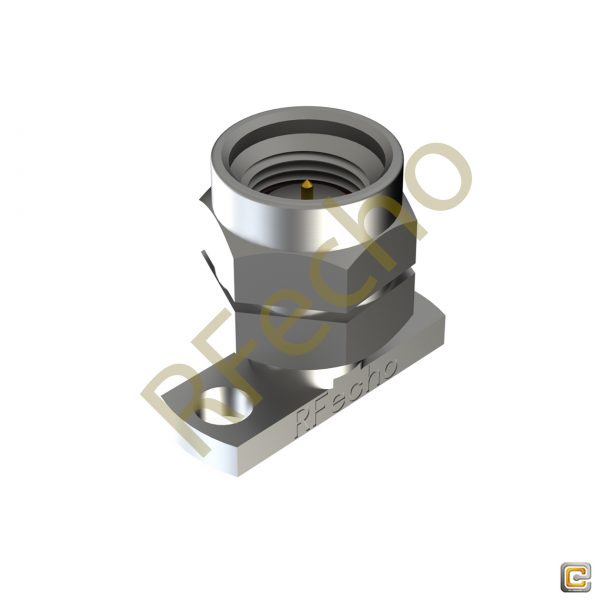

1.85mm 67 GHz, 0.009″ Accept Pin Diameter, 2 Hole 0.550″ Long Mounting Flange Male Connector
Model D181-P09-F05 is a Male connector. 1.85mm (V) Connectors are durable, operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, having the low VSWR and RF leakage ≤ -100 dB.
1.85mm (V) Connectors offers the frequency range from DC to 67GHz. 1.85mm (V) Connectors have 2 Hole 0.550″ Long mounting. This model of 1.85mm (V) Connectors provide the Accept Pin Diameter of 0.009″ inches.
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
1.85mm (V) Connectors |
|
|
1.85mm 67 GHz, 0.009″ Accept Pin Diameter, 2 Hole 0.550″ Long Mounting Flange Male Connector |
|
|
D181-P09-F05 |
|
|
Model D181-P09-F05 is a Male connector. 1.85mm (V) Connectors are durable, operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, having the low VSWR and RF leakage ≤ -100 dB. 1.85mm (V) Connectors offers the frequency range from DC to 67GHz. 1.85mm (V) Connectors have 2 Hole 0.550″ Long mounting. This model of 1.85mm (V) Connectors provide the Accept Pin Diameter of 0.009″ inches. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
DC |
|
Max. Frequency (GHz) |
67 |
|
Flange (inch) |
0.550″ Long |
|
Mounting |
2 Hole |
|
Accept Pin Diameter (inch) |
0.009″ |
|
Gender |
Male |
|
Features |
|
|
Low VSWR |
|
|
Free through 67 GHz |
|
|
Applications |
|
|
Telecom Communication |
|
|
Sub-assemblies |
|
|
Radio equipment and instruments |
|
|
Wireless Communication |
|
|
Test Labs |
|
|
Instrumentations |
|

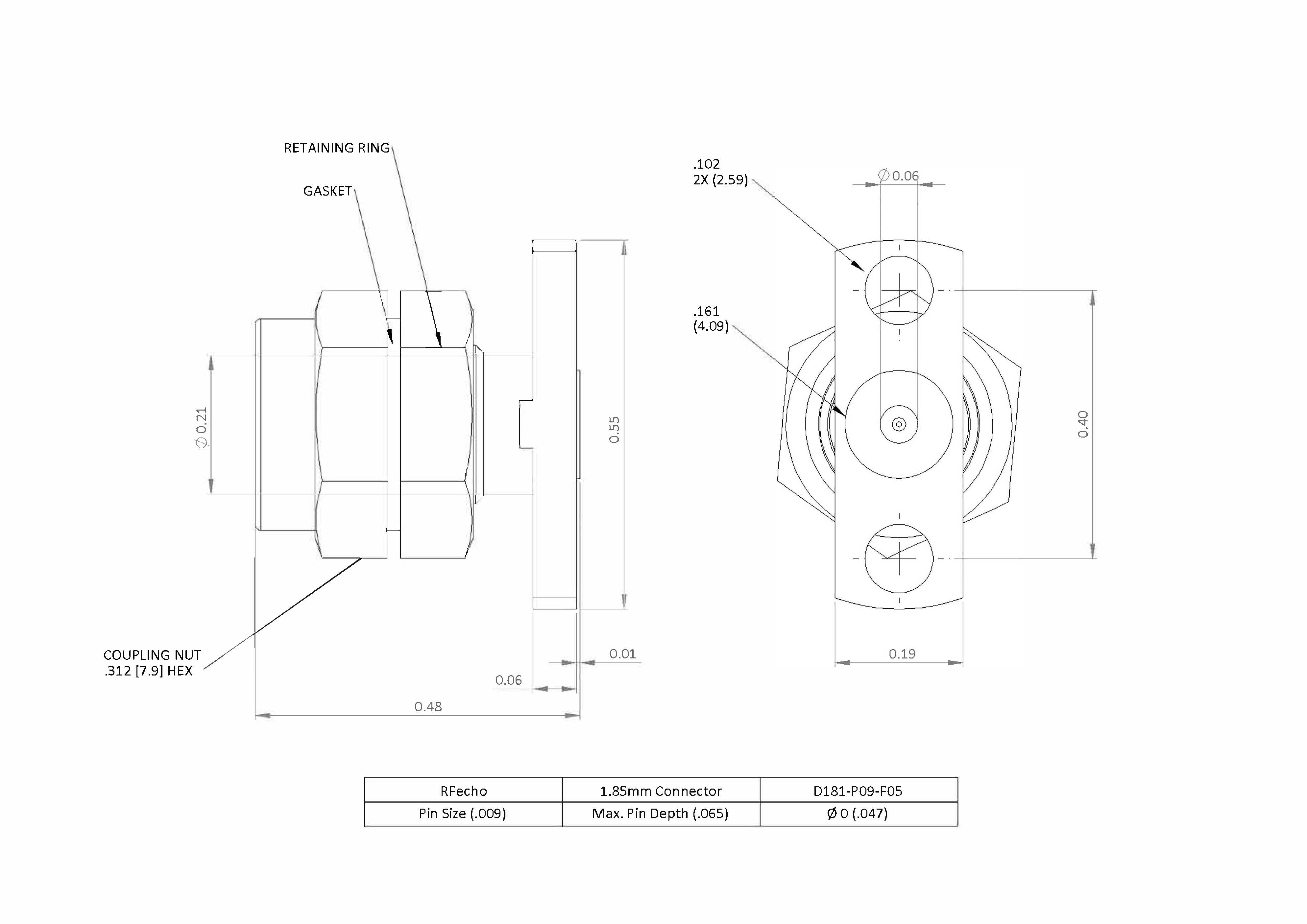

Outline

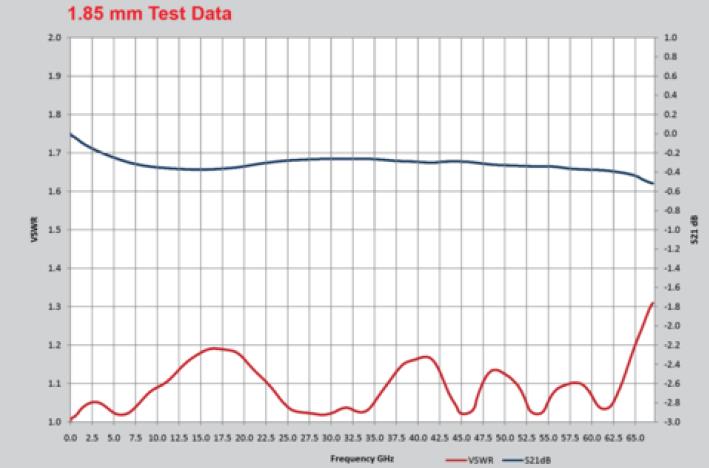

Plot
Additional information
| Min. Frequency (GHz) | DC |
|---|---|
| Max. Frequency (GHz) | 67 |
| Flange (inch) | |
| Mounting | |
| Accept Pin Diameter (inch) | |
| Gender |
