110GHz-170GHz ，VSWR（Max）:1.06， Waveguide Load 82505
The waveguide load frequency covers 500GHz, with complete matching loads, excellent performance, small voltage standing wave ratio and power up to 30KW. The basic materials are copper, aluminum and stainless steel, and the surface treatment methods include gold plating, silver plating, nickel plating, passivation and conductive oxidation.
The application information includes: waveguide load is necessaryfor checking the working ability andverification of various microwaveimpedance measuring instruments(including panoramic voltagestandingwave coefficient (KCBH)measuring instruments),and can be customized according tocustomer requirements.
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
Waveguide Load |
|
|
110GHz-170GHz ，VSWR（Max）:1.06， Waveguide Load |
|
|
82505 |
|
|
The waveguide load frequency covers 500GHz, with complete matching loads, excellent performance, small voltage standing wave ratio and power up to 30KW. The basic materials are copper, aluminum and stainless steel, and the surface treatment methods include gold plating, silver plating, nickel plating, passivation and conductive oxidation. The application information includes: waveguide load is necessaryfor checking the working ability andverification of various microwaveimpedance measuring instruments(including panoramic voltagestandingwave coefficient (KCBH)measuring instruments),and can be customized according tocustomer requirements. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
110 |
|
Max. Frequency (GHz) |
170 |
|
waveguide |
WR6 |
| VSWR（Max） |
1.06 |
|
Features |
|
|
Rich product types |
|
|
The frequency covers 500GHz |
|
|
Can be customized according to user needs |
|

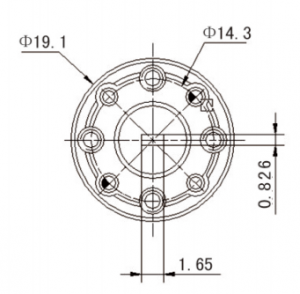

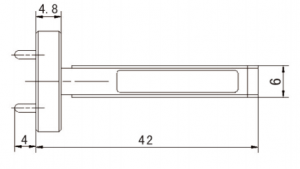

Outline
Additional information
| Min. Frequency (GHz) | 110 |
|---|---|
| Max. Frequency (GHz) | 170 |
| VSWR（Max） | 1.06 |
| Waveguide |
