6 GHz to 18 GHz, 12 dBi to 17 dBi Gain,2 -2.92mm Connectors, Dual Polarized Horn Antenna ODPA-60180-40mm

HOT

6 GHz to 18 GHz, 12 dBi to 17 dBi Gain,2 -2.92mm Connectors, Dual Polarized Horn Antenna ODPA-60180-40mm

$2585

Product Introduction

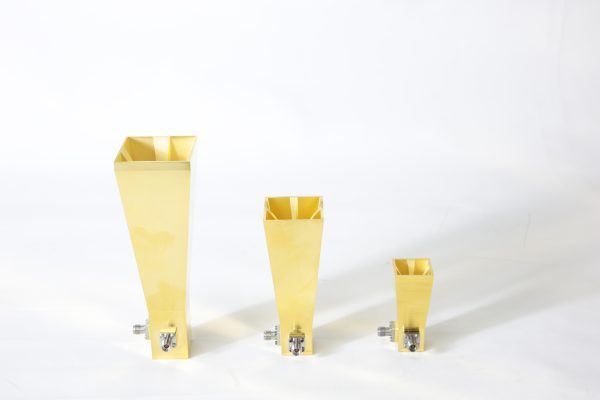

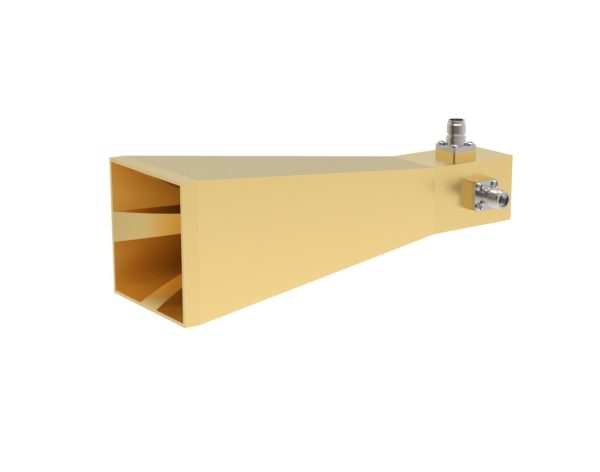

RFecho’s ODPA-60180-40mm Dual-Polarized Horn Antenna is an innovative solution in the microwave measurement field. This antenna covers a wide frequency range from 6 GHz to 18 GHz, suitable for C, X, and Ka bands. Its gain ranges from 12 dBi to 17 dBi, meeting diverse application needs. Notably, the antenna has a cross-polarization isolation better than 30 dB, ensuring the accuracy and reliability of measurement results. To further enhance performance and flexibility, this model is equipped with two 3.5mm connectors and can continuously handle up to 100W of power. This antenna not only demonstrates excellent structural stability but also supports simultaneous measurements of horizontal and vertical polarizations, making it a preferred choice for antenna measurements and other high-precision applications.

Key Features

Gain Range: 12 dBi to 17 dBi
Cross pol. Isolation: Better than 30 dB
Frequency Coverage: 6 GHz to 18 GHz, suitable for C, X, and Ka bands
Connectors: Equipped with two 3.5mm connectors
Max Power: 100W continuous
Structural Stability: Good structural stability ensures high cross-polarization isolation

Primary Applications

Antenna Measurements: Supports simultaneous measurements of horizontal and vertical polarizations, suitable for RCS and high-precision applications.

SKU: ODPA-60180-40mm Categories: Dual Polarized Horn Antenna, RF Antenna

Description

This RFecho quad ridged  Antenna with dual-polarization covers the frequency range from 6 GHz to 18 GHz and is designed for the measurement of antennas in the MW range. This Dual Polarized Horn Antenna covers the C band, Xband, and Ka-band,  the ODPA-60180-40mm can be used as low power radiators.  with a maximum continuous power handling capability of 50W.

Good structural stability guarantees cross-polarization isolation is better than 30dB.

Two connectors input permit simultaneous measurements for both horizontal and vertical polarizations for linearly polarized waves.  Dual Polarized Horn Antenna having the gain from 12 dBi to 17 dBi and the VSWR of <2.0:1, More Rfecho RF Antenna.

SPEC

Dual Polarized Horn Antenna

6 GHz to 18 GHz,12 dBi to 17 dBi Gain, 30 dB Isolation, C band, X band, and Ku band, 2 -2.92mm Connectors, Dual Polarized Horn Antenna

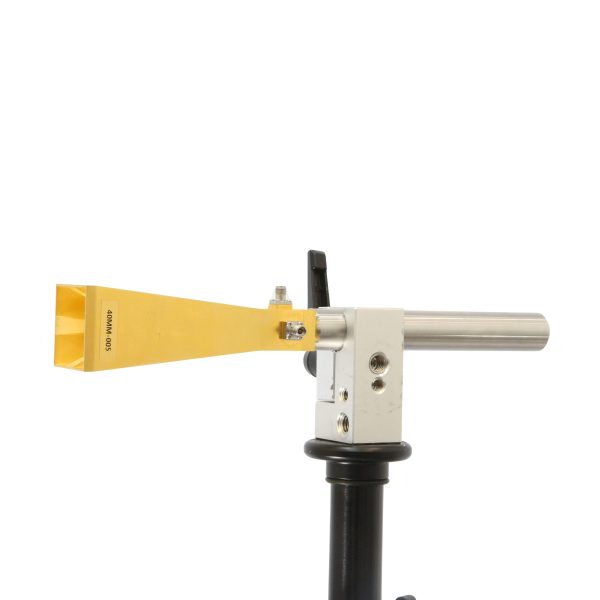

ODPA-60180-40mm quad ridged horn antenna with two polarizations

Property

Value

Min. Frequency (GHz)

6

Max. Frequency (GHz)

18

Min. Gain (dBi)

12

Max. Gain (dBi)

17

VSWR (Max.)

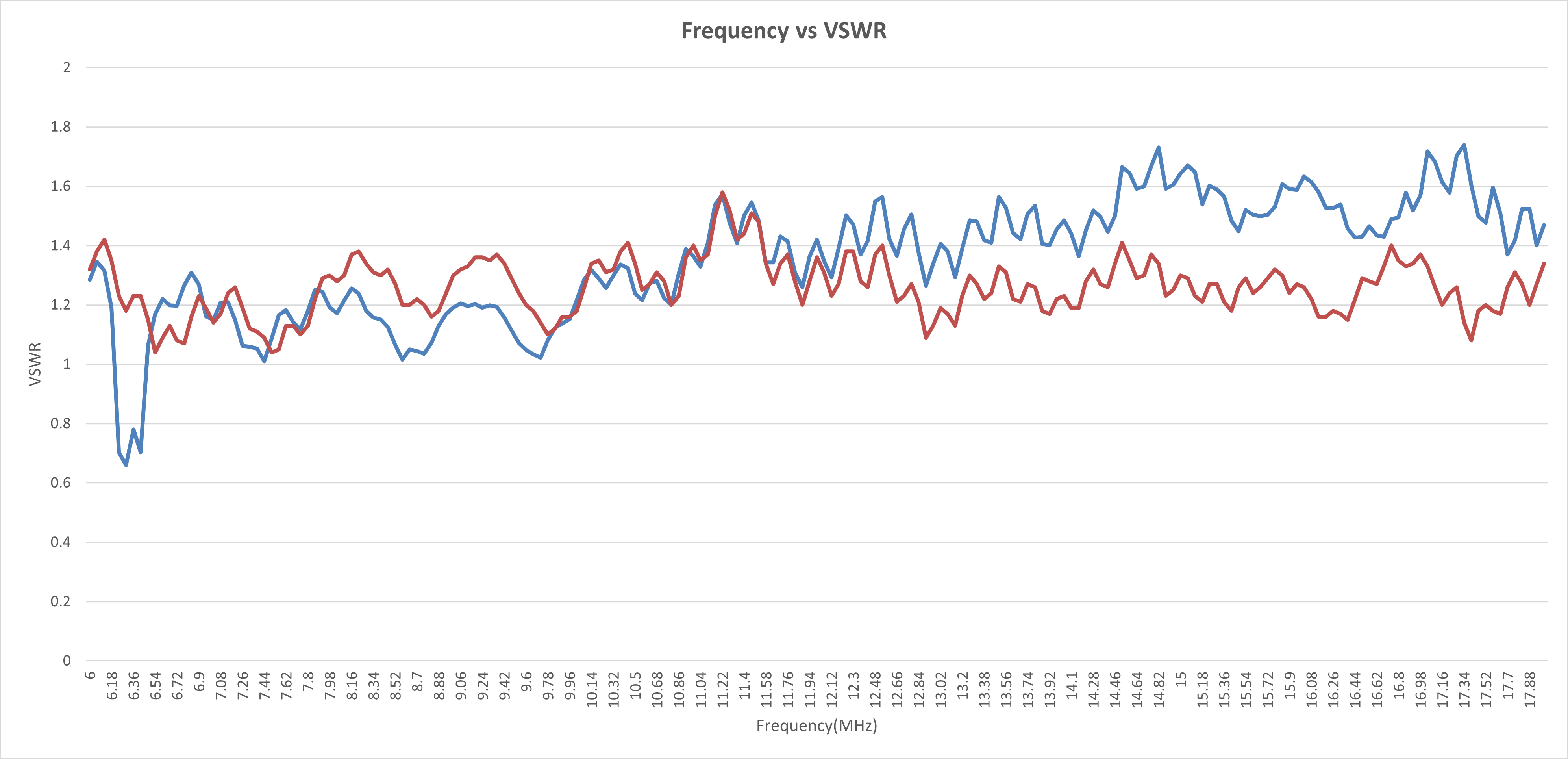

2.0:1

Continuous Power (W) (Max.)

50

Impedance (?)

50

Connection Type

2.92mm

Cross Polar Isolation (dB)

>30

Band Type

C band, X band and Ku band

PDF

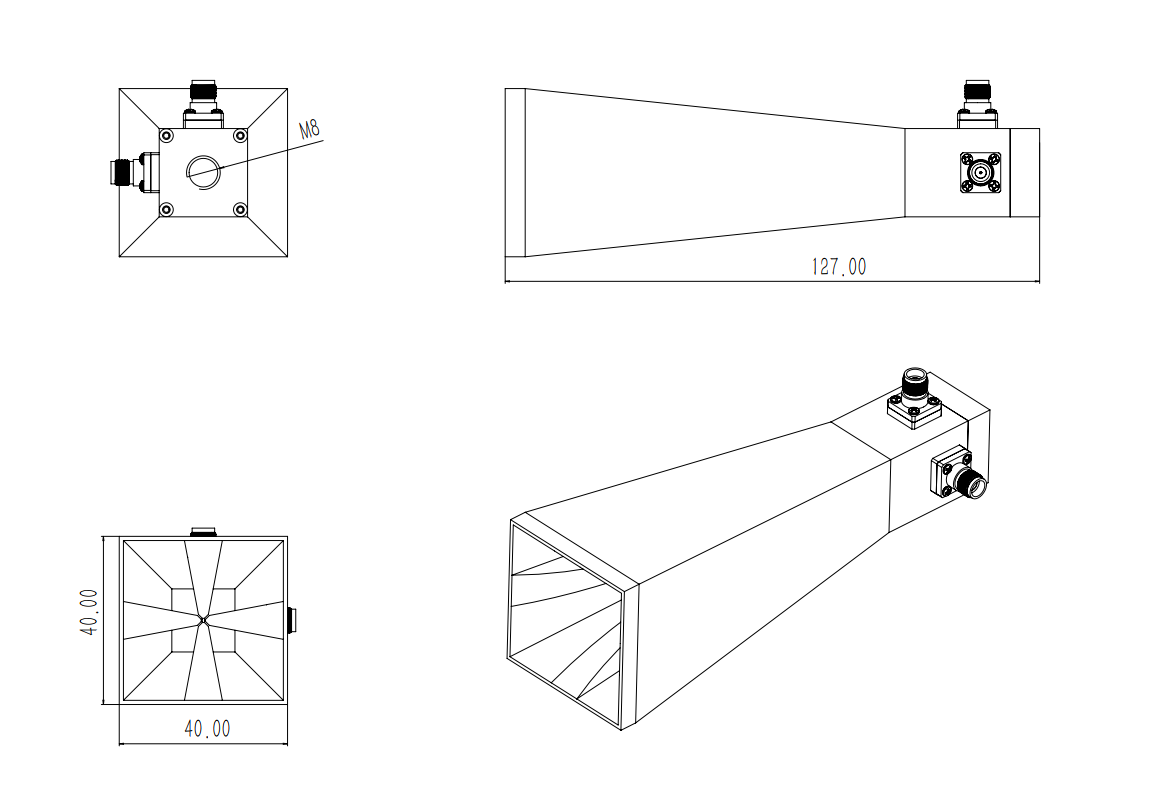

Outline

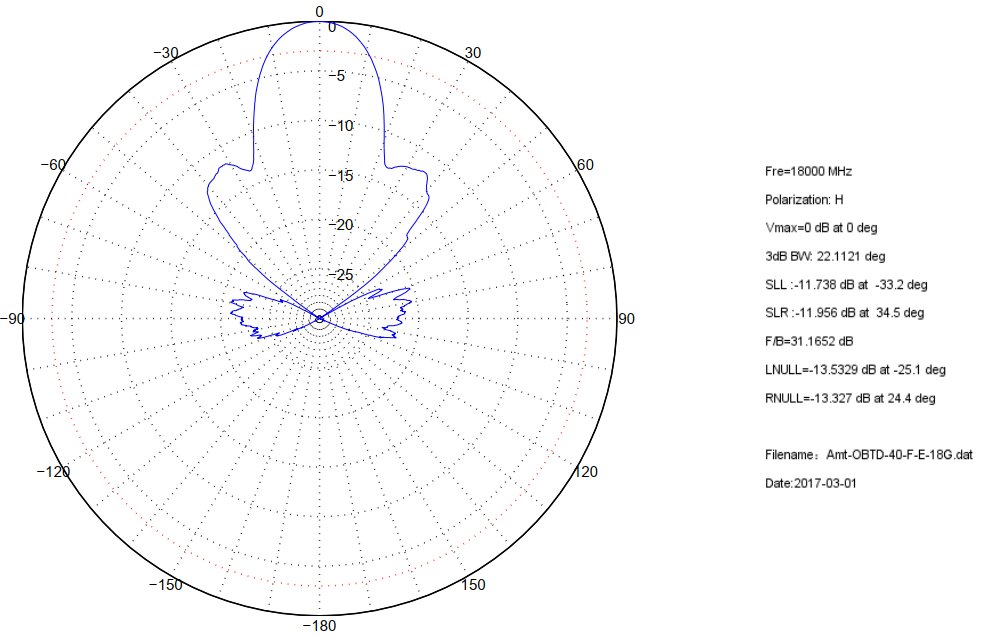

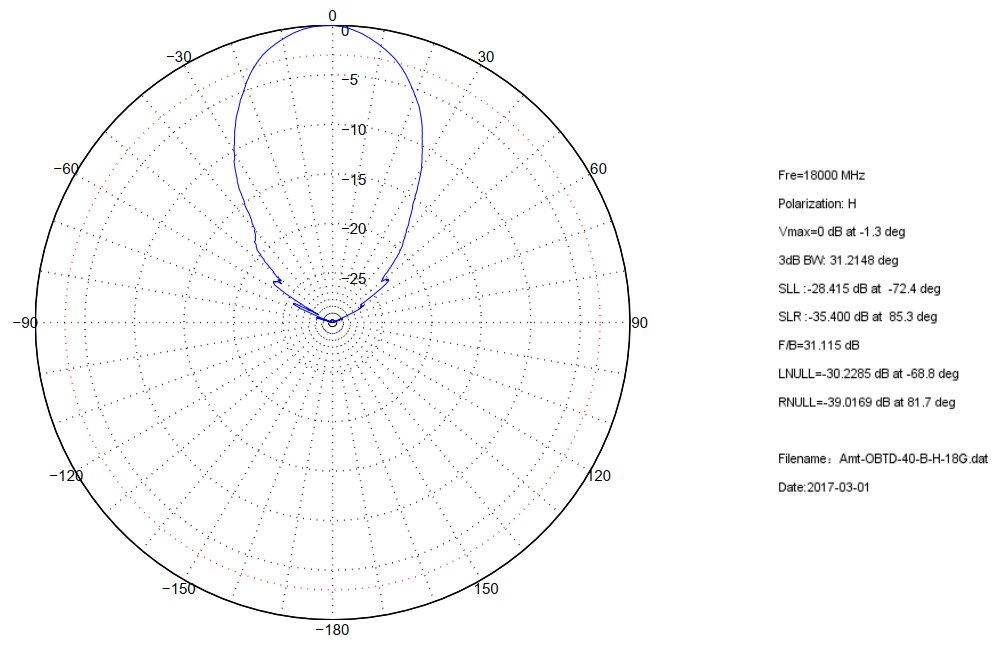

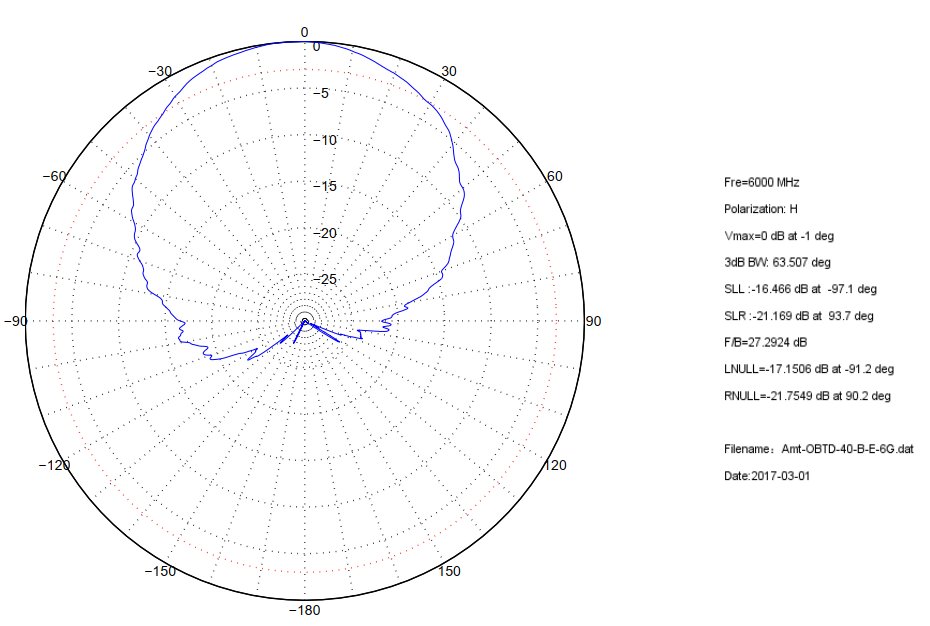

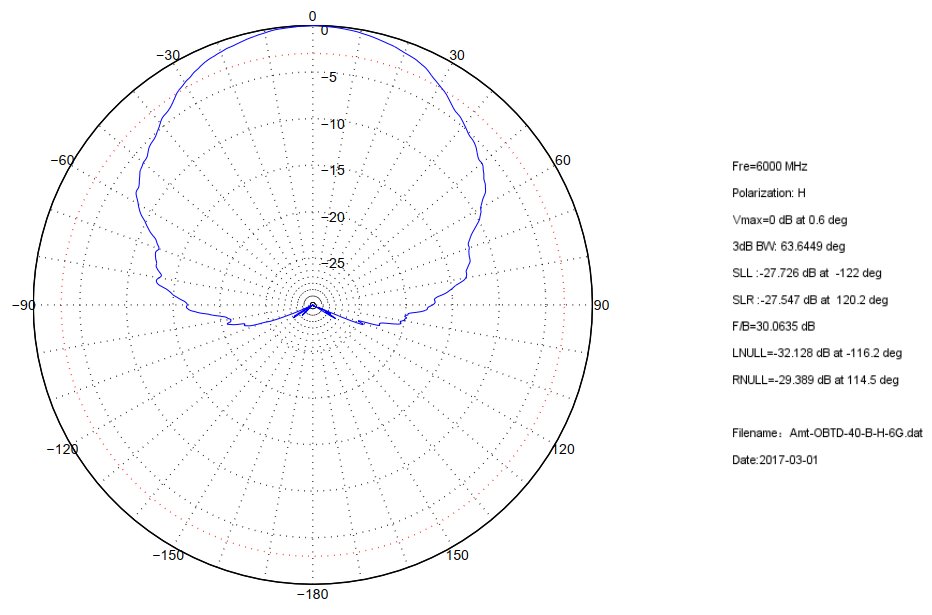

Plot

Additional information

Min. Frequency (GHz)

6

Max. Frequency (GHz)

18

Min. Gain (dBi)

12

Max. Gain (dBi)

17

Continuous Power (W) (Max.)

50

Band Type

C band, X band and Ku band

Connection Type

2 -2.92mm Connectors

Impedance (Ω)

50

Cross Polar Isolation (dB)

>30
