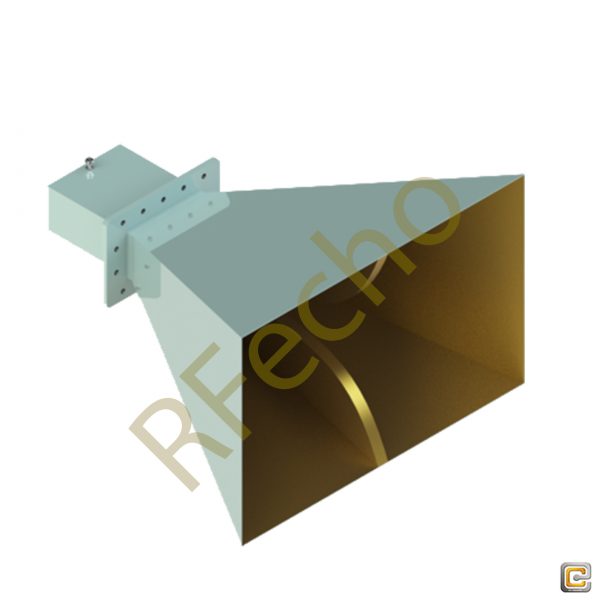

13 dBi Gain, 0.8 GHz to 2 GHz, Multi Octave Horn Antenna
The RFecho Multi Octave Horn Antenna OBH-80D-15 is a broadband antenna that offers excellent performance over the frequency range from 0.8 GHz to 2 GHz. The input handling capability high gain of 13dBi, Low VSWR 2, cross polar isolation of 50dB and up to 10 watts make this horn antenna an excellent general use performer.
Multi Octave Horn Antenna offer a very low VSWR in their nominal frequency range and a very broad bandwidth. The increasing gain with frequency helps to compensate cable losses. RFecho Multi Octave Horn Antenna have the impedance of 50. The antenna supports Single Linear polarized waveforms.
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
Multi Octave Horn Antenna |
|
|
13 dBi Gain, 0.8 GHz to 2 GHz, Multi Octave Horn Antenna |
|
|
OBH-80D-15 |
|
|
The RFecho Multi Octave Horn Antenna OBH-80D-15 is a broadband antenna that offers excellent performance over the frequency range from 0.8 GHz to 2 GHz. The input handling capability high gain of 13dBi, Low VSWR 2, cross polar isolation of 50dB and up to 10 watts make this horn antenna an excellent general use performer. Multi Octave Horn Antenna offer a very low VSWR in their nominal frequency range and a very broad bandwidth. The increasing gain with frequency helps to compensate cable losses. RFecho Multi Octave Horn Antenna have the impedance of 50. The antenna supports Single Linear polarized waveforms. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
0.8 |
|
Max. Frequency (GHz) |
2 |
|
Gain(dBi) |
13 |
|
VSWR (Max.) |
2 |
|
Polarization |
Single Linear |
|
Cross Polar Isolation (dB) |
50 |
|
Impedance (?) |
50 |
|
Features |
|
|
Linear polarized with high polarization purity |
|
|
Frequency from 0.8 GHz to 2 GHz |
|
|
Low return loss / VSWR |
|
|
Wide bandwidth |
|
|
Uniform Gain |
|
|
High Power Handling Capability |
|

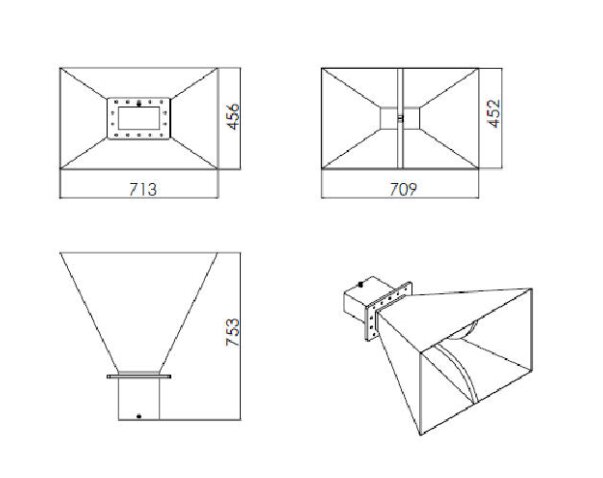

Outline
Additional information
| Min. Frequency (GHz) | 0.8 |
|---|---|
| Max. Frequency (GHz) | 2 |
| Gain (dBi) | 13 |
| VSWR (Max.) | |
| Cross Polar Isolation (dB) | |
| Polarization | |
| Impedance (Ω) |
