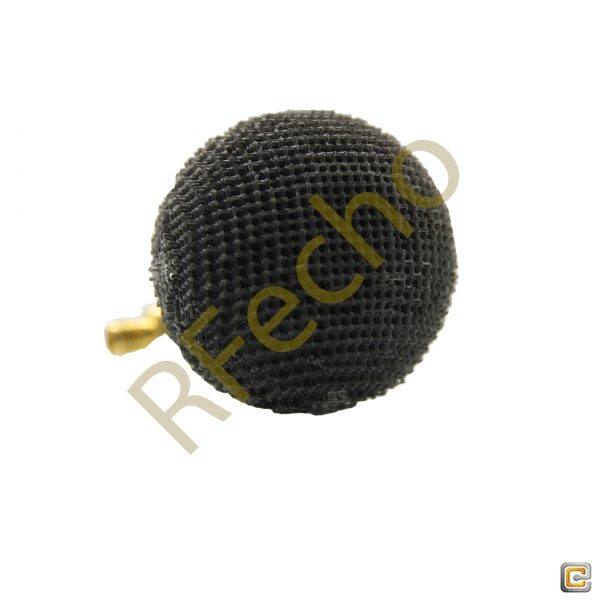

15 dBi Gain, 17.6 GHz to 26.7 GHz, 20 dB Return Loss, Luneburg Lens AntennaSKU: OLLA-176267
Luneburg lens antenna is a spherical dielectric lens antenna, which focuses microwaves to the focal point through dielectric. Luneburg lens antenna is widely used in microwave,millimeter wave, mobile communication, satellite communication and radio astronomy due to its high gain, low profile and multi-feed multi-beam operation.

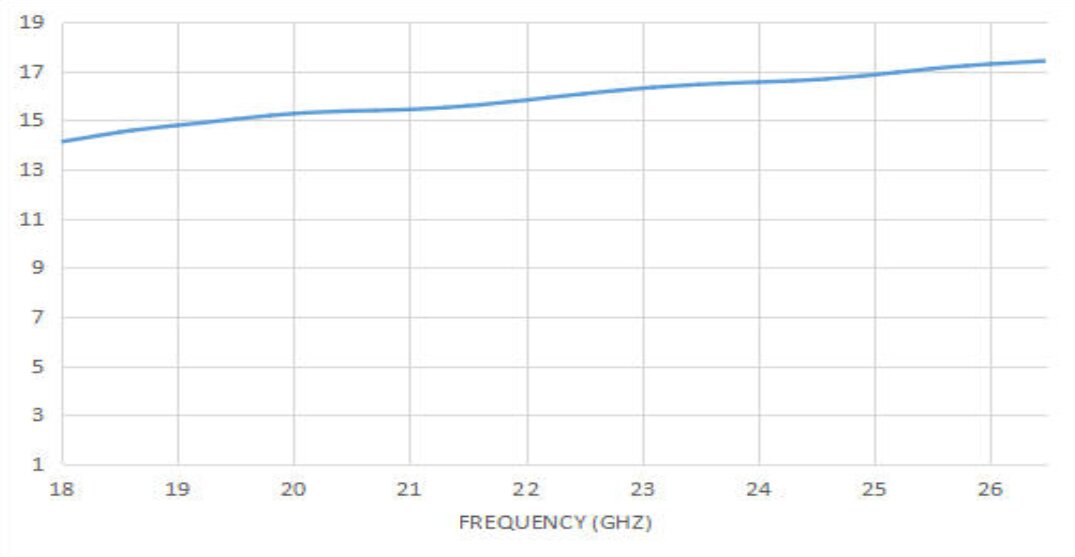

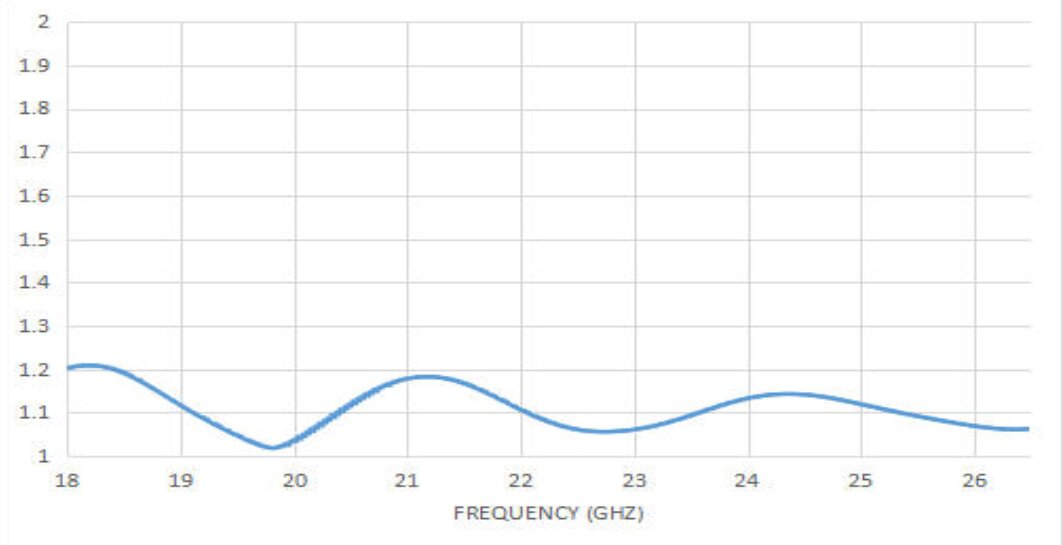

Luneburg Lens Antenna covers the frequency range from 17.6 GHz to 26.7 GHz and offers the nominal gain of 15 dBi where the return loss is 20 dB. HPBW is 30°@21GHz. Luneburg Lens Antenna operates in all polarization.
- Store Name: RFecho
- Vendor: RFecho
- Address: Beijing / 北京, Beijing, Building 58# Caihuying Fengtai District, 12 Floor Caifuxihuan
- No ratings found yet!
