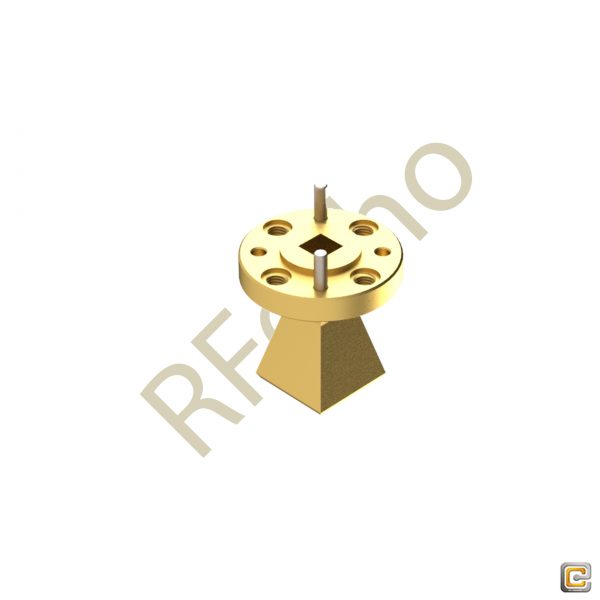

15 dBi Gain, 50 GHz to 75 GHz, WR-15 Waveguide Millimeter SGH Antenna OLB-15-15
Original price was: $812.$690Current price is: $690.
Frequency: 50-75GHz
Gain: 15dBi.
VSWR: 1.3Typ.
HPBW 3 dB Beamwidth: H 30° / V 30°
Waveguide: WR-15
Material: Cu
High Return Loss
Flange: UG-385/U
This Millimeter SGH Antenna supports linear polarized waveforms Linear.
- Description
- Datasheet

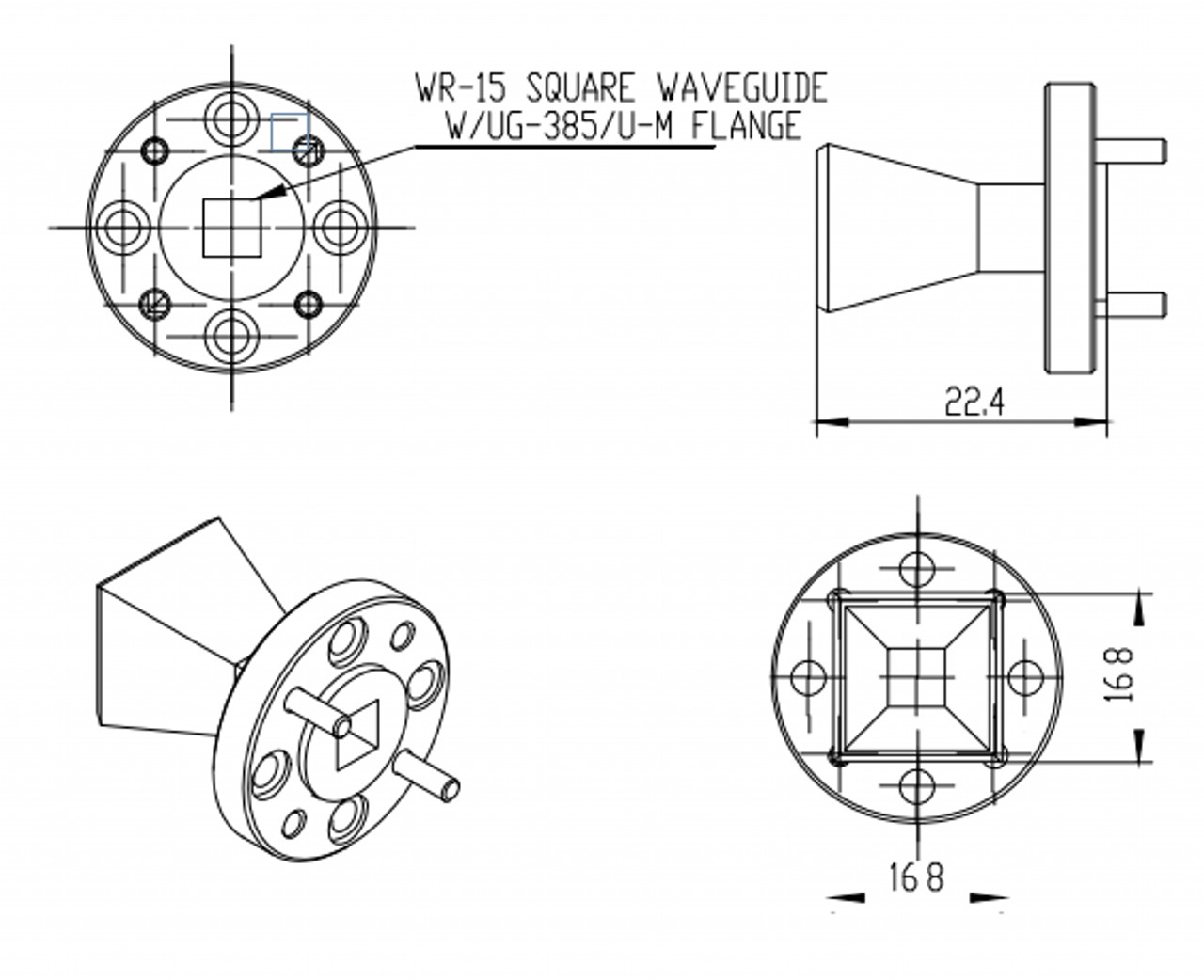

- Outline

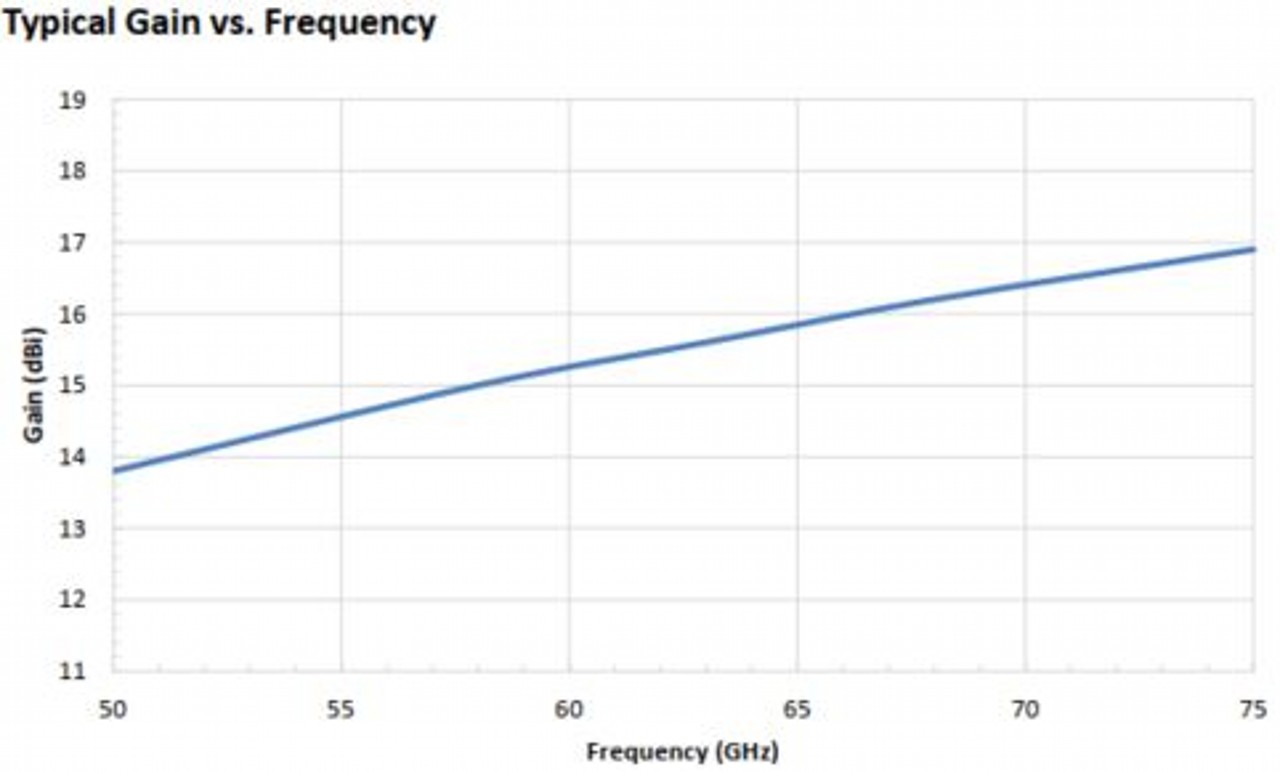

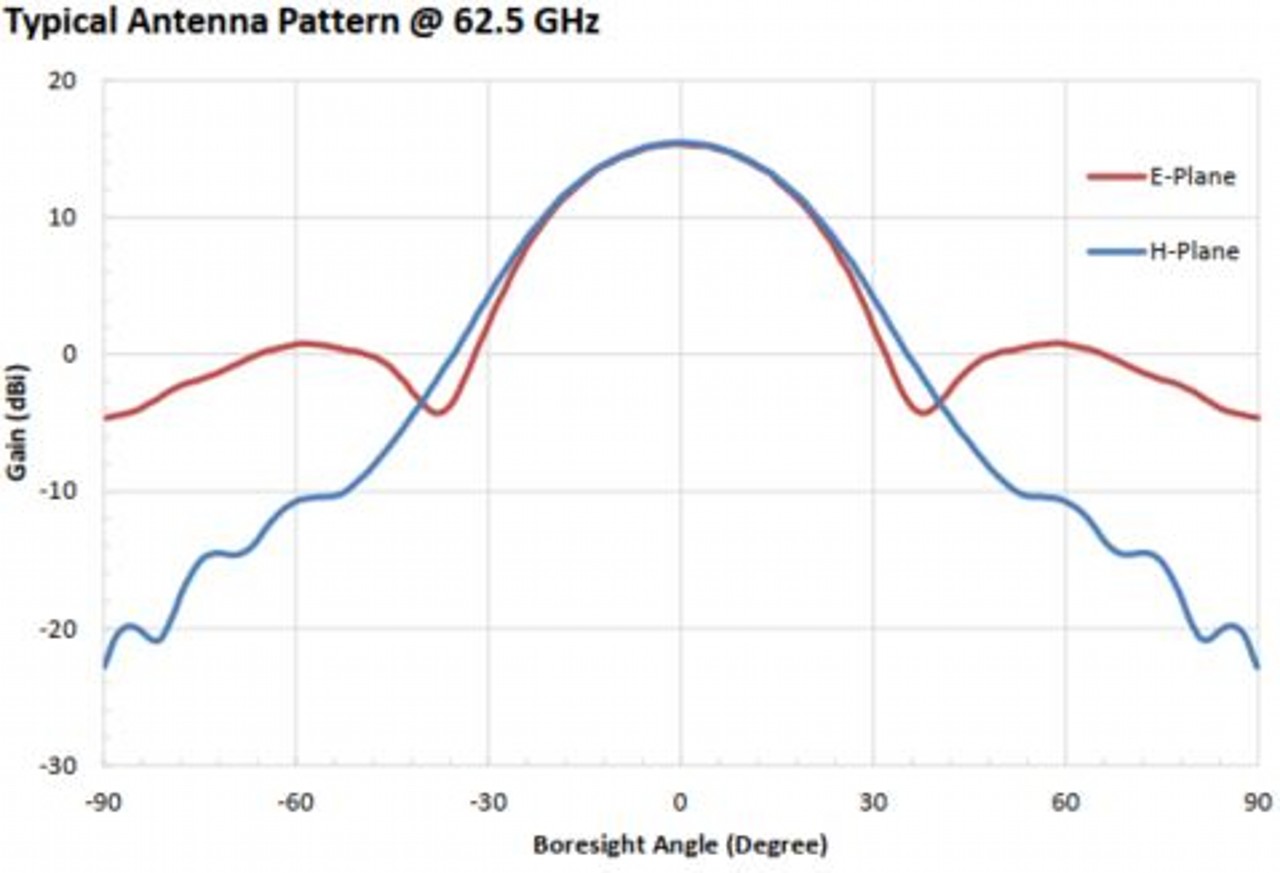

- Plot
- Reviews (0)
Description
|
Millimeter SGH Antenna |
|
|
15 dBi Gain, 50 GHz to 75 GHz, WR-15 Waveguide Millimeter SGH Antenna |
|
|
OLB-15-15 |
|
|
This model OLB-15-15 is a Millimeter SGH Antenna, operating frequency range is 50 GHz to 75 GHz. Millimeter SGH Antenna offers nominal gain 15dBi and typical half power beam width on the E-plane and H-plane is H 30° / V 30°. Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-15 waveguide withUG-385/U Flange. The Impedance used Standard gain horn antenna is 50 Ohms. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
50 |
|
Max. Frequency (GHz) |
75 |
|
Gain(dBi) |
15 |
|
HPBW 3 dB Beamwidth |
H 30° / V 30° |
|
Waveguide |
WR-15 |
|
Flange |
UG-385/U Flange |
|
Material |
Cu |
|
Polarization |
Linear |
|
Impedance (Ω) |
50 |
|
Features |
|
|
Square Waveguide Interface |
|
|
Precisely Machined and Gold Plated |
|
|
Linear Polarization |
|
|
High Return Loss |
|
|
Applications |
|
|
Antenna Ranges |
|
|
Antenna Gain Measurements |
|
|
System Setup |
|
