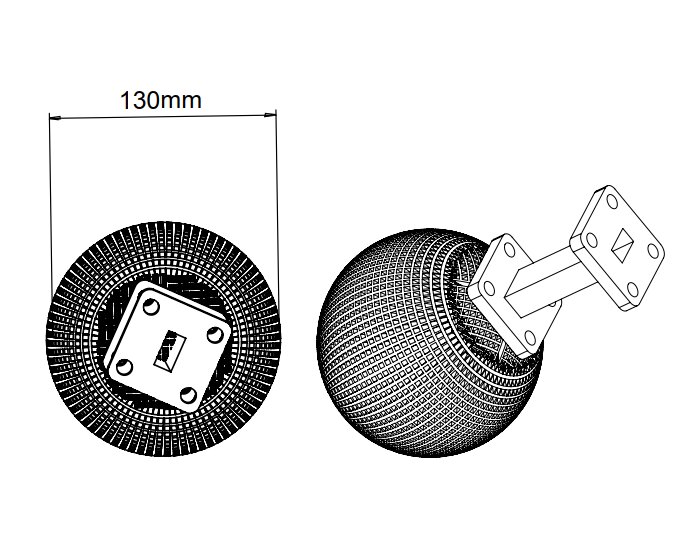

15 dBi Gain, 6.6 GHz to 10 GHz, 20 dB Return Loss, Luneburg Lens AntennaSKU: OLLA-66100
Luneburg lens antenna is a spherical dielectric lens antenna, which focuses microwaves to the focal point through dielectric. Luneburg lens antenna is widely used in microwave,millimeter wave, mobile communication, satellite communication and radio astronomy due to its high gain, low profile and multi-feed multi-beam operation.
Luneburg Lens Antenna covers the frequency range from 6.6 GHz to 10 GHz and offers the nominal gain of 15 dBi where the return loss is 20 dB. HPBW is 30°@8.2 GHz. Luneburg Lens Antenna operates in all polarization.
- Store Name: RFecho
- Vendor: RFecho
- Address: Beijing / 北京, Beijing, Building 58# Caihuying Fengtai District, 12 Floor Caifuxihuan
- No ratings found yet!
- Aircrafts, Application, Defense Equipment, EMI/EMF/EMC, Ground Testing, Medical Equipment, Milcom, National Safety, Offshore Marine, On-board Communication, Passive Devices, Public Safety, Radar, rd-offshore-marine, RF Filter Bandpass, RF Filters, Satellite Testing, Signal Filtration, Signal Processing, sp-signal-filteration, Testing & Measurement
RF Filter Bandpass OWBP-49755025-15Aircrafts, Application, Defense Equipment, EMI/EMF/EMC, Ground Testing, Medical Equipment, Milcom, National Safety, Offshore Marine, On-board Communication, Passive Devices, Public Safety, Radar, rd-offshore-marine, RF Filter Bandpass, RF Filters, Satellite Testing, Signal Filtration, Signal Processing, sp-signal-filteration, Testing & Measurement
RF Filter Bandpass OWBP-49755025-15
Model OWBP-49755025-15 is a V band waveguide bandpass filter with a passband frequency of 49.75 to 50.25 GHz and rejection frequencies from DC to 49 GHz and 51 to 60 GHz.
The nominal insertion loss of the bandpass filter is 2.5 dB and the typical rejection is 30 dB. Since both low end and high end cut off frequencies can be selected by modifying the design, custom designs are available under different model numbers.SKU: OWBP-49755025-15
- E-Testing ECO, LL142, RF Cables
SMA Female to TNC Male LL142 Coax and RoHS F038-320S0-411S0-110-C
High performance test cables boast 83% phase velocity and offer excellent low loss performance up to 26.5 GHz. Cable assemblies use durable stainless steel connectors and an FEP jacket.
The connector/cable interface has double heat-shrink booting which provides added strain relief while increasing the durability of the cable assembly. The low attenuation per foot in a 0.195 inch diameter cable creates a cable that has good flexibility while offering industry leading loss characteristics.
All cable assemblies are 100% RF tested to ensure the VSWR and insertion loss specifications meet or exceed RFecho’s published electrical specifications.SKU: F038-320S0-411S0-110-C
- Cavity Filters, High Pass Filter
2.5 GHz to 6 GHz Rejection ≥70 dB @ DC-2000MHz High Pass Cavity FilterCavity Filters, High Pass Filter
2.5 GHz to 6 GHz Rejection ≥70 dB @ DC-2000MHz High Pass Cavity Filter
RFecho High Pass Filter (RFecho High Pass Filter，abbreviation：OHP), also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.
The product name of this RFecho High Pass Filter (OHP) is OHP-2580-6000, its Cut Off Frequency is 2.0GHz, its Pass Band Frequency is 2.58-6GHz, its Pass Band Insertion Loss is 1.5dB, and its Pass Band VSWR is 2.0. Its Stop Band frequency is DC-2.0GHz and its stop band attenuation is 70 dB.SKU: OHP-2580-6000
- Antenna, Application, Artificial Intelligence, Biconical Antenna, Defense Equipment, EMI/EMF/EMC, National Safety, Radar, Testing & Measurement
NA dBi to NA dBi Gain,60 MHz to 600 MHz, N Female, EMC Biconical AntennaAntenna, Application, Artificial Intelligence, Biconical Antenna, Defense Equipment, EMI/EMF/EMC, National Safety, Radar, Testing & Measurement
NA dBi to NA dBi Gain,60 MHz to 600 MHz, N Female, EMC Biconical Antenna
Biconical antenna is a vertically polarized omni directional antenna. Its frequency range is 60 MHz to 600 MHz. Its pattern stability is better. Biconical antenna model OBC-066-10W-1 is used for transmission and immunity test to meet various EMC standards. Its broadband characteristics make it an ideal choice for a widerange of EMI testing applications, including demonstrating compliance with FCC, CE, MIL-STD,RTCADO-160 andother requirements.
OBC-066-10W-1 biconical EMC broadband antenna has durable aluminum alloy, and we powder coated themto improve corrosion resistance. OBC-066-10W-1 model is used for radiation and immunity testing to meet various EMC standards. The broadband characteristic of biconical antenna makes it an ideal choice for scanning measurement and automatic measurement systems. Biconical antennas can be used for many applications, in which half-wavedipoles have been used traditionally. An enourmous reduction of measurement time can be achieved, because the time consuming tuning of the antenna elements to the half wavelength is not needed, an important condition for sweeped broadband.SKU: OBC-066-10W-1
