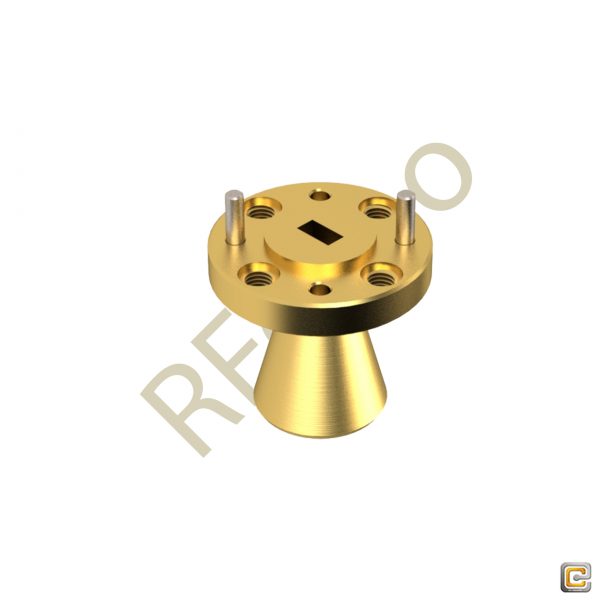

15 dBi Gain, 68 GHz to 77 GHz, 0.125″ Diameter Circular Waveguide WR-125 Waveguide E Band Conical Horn Antennas
$599
Frequency: 68-77GHz
Gain: 15dBi.
VSWR: 1.15:1
Waveguide: WR-125
Side Lobes,E-Plane,H-plane: -16,-28
Flange: UG-387/U-M flange
Band Type: E Band
Diameter: 0.125Inch
The OCN-125-15 Conical Horn Antennas is suitable for Antenna Ranges，Feed Horns and System Setups.
- Description
- Datasheet

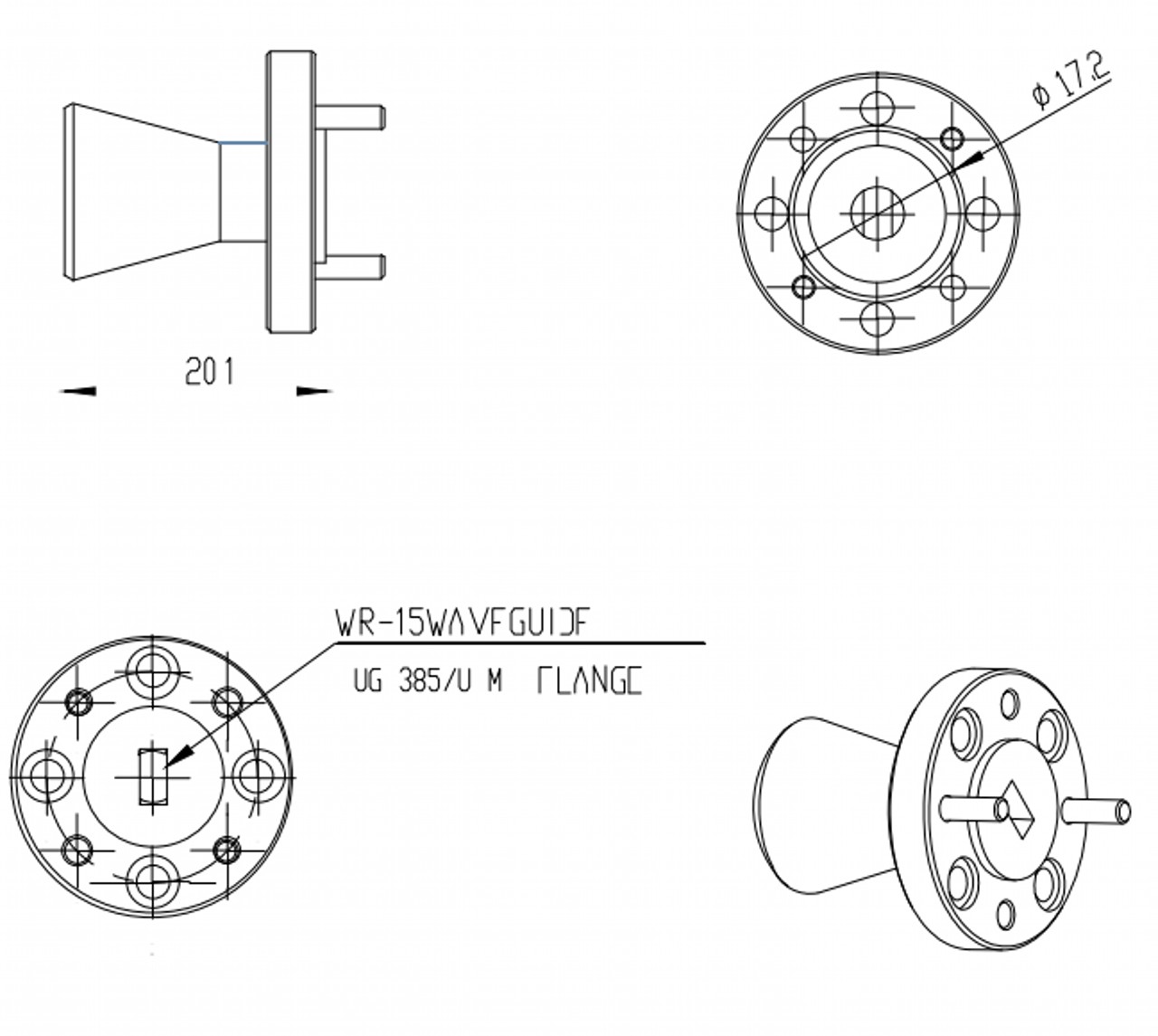

- Outline
- Plot
- Reviews (0)
Description
|
Conical Horn Antennas |
|
|
15 dBi Gain, 68 GHz to 77 GHz, 0.125″ Diameter Circular Waveguide WR-125 Waveguide E Band Conical Horn Antennas |
|
|
OCN-125-15 |
|
|
Model OCN-125-15 is a E Band conical horn antenna that operates from 68 GHz to 77 GHz. The antenna offers 15 dB nominal gain and a typical half power beamwidth of 30 degrees on the E-plane and 36 degrees on the H-plane. The horn also offers typical side lobes of -16 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.125 diameter circular waveguide with UG-387/U-M flange. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
68 |
|
Max. Frequency (GHz) |
77 |
|
Gain(dBi) |
15 |
|
3 dB Beamwidth, E-plane |
30° |
|
3 dB Beamwidth, H-plane |
36° |
|
Side Lobes, E-Plane (dB) |
-16 |
|
Side Lobes, H-Plane (dB) |
-28 |
|
Waveguide |
WR-125 |
|
Band Type |
E Band |
|
Flange |
UG-387/U-M flange |
|
Diameter (Inch) |
0.125 |
|
VSWR |
1.15:1 |
|
Features |
|
|
Circular Waveguide Interface |
|
|
Precisely Machined and Gold Plated |
|
|
High Return Loss |
|
|
Linear and Circular Polarization |
|
|
Applications |
|
|
Antenna Ranges |
|
|
Feed Horns |
|
|
System Setups |
|
