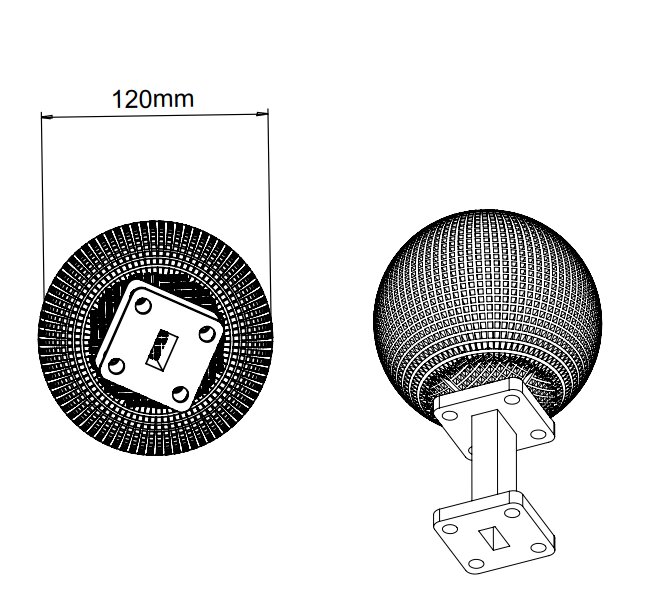

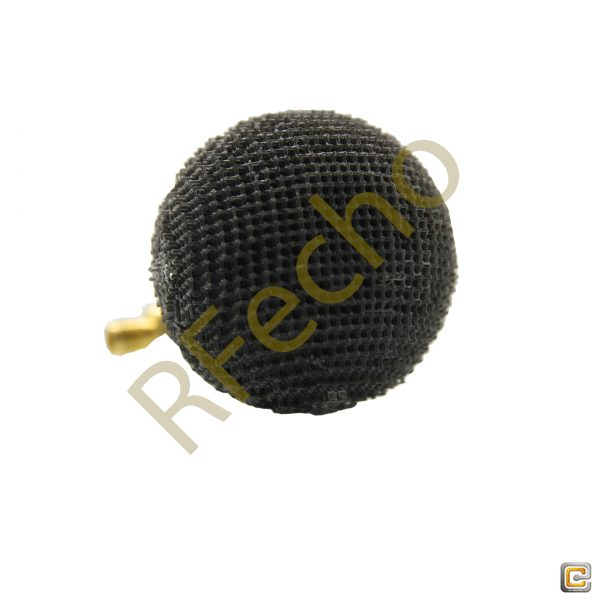

15 dBi Gain, 8.2 GHz to 12.5 GHz, 20 dB Return Loss, Luneburg Lens AntennaSKU: OLLA-82125
Luneburg lens antenna is a spherical dielectric lens antenna, which focuses microwaves to the focal point through dielectric. Luneburg lens antenna is widely used in microwave,millimeter wave, mobile communication, satellite communication and radio astronomy due to its high gain, low profile and multi-feed multi-beam operation.
Luneburg Lens Antenna covers the frequency range from 8.2 GHz to 12.5 GHz and offers the nominal gain of 15 dBi where the return loss is 20 dB. HPBW is 30°@10 GHz. Luneburg Lens Antenna operates in all polarization.
- Store Name: RFecho
- Vendor: RFecho
- Address: Beijing / 北京, Beijing, Building 58# Caihuying Fengtai District, 12 Floor Caifuxihuan
- No ratings found yet!
- 5G, GaN, GaN Monolithic Integrated Power Amplifier
GaN Monolithic Integrated Power Amplifier O1195
The O1195 is a GaN monolithic integrated power amplifier chip operating at
4.4-5.1GHz. With a pulse width of 100us, a duty cycle of 10%, and a +28V operating voltage, it provides 19dB of power gain and 40dBm of saturated output power.
Power-added efficiency 48%.
The power amplifier chip adopts an on-chip via hole metallization process to ensure good grounding, no additional grounding measures are needed, and the use is simple and convenient. The backside of the chip is metallized and is suitable for eutectic sintering processes.SKU: n/a
- Antenna, Application, Curve Edge SGH Antenna, EMI/EMF/EMC, Gain Measurement Systems, Testing & Measurement
15 dBi Gain, 2.5 GHz to 4 GHz, WR-284 Waveguide, SMA Connector Curve Standard Gain HornAntenna, Application, Curve Edge SGH Antenna, EMI/EMF/EMC, Gain Measurement Systems, Testing & Measurement
15 dBi Gain, 2.5 GHz to 4 GHz, WR-284 Waveguide, SMA Connector Curve Standard Gain Horn
This OHC-284-15 standard gain horn antenna has a nominal gain from 14 dBi to 16 dBi across the band and a square cover flange. It covers the frequency range from 2.5 GHz to 4.0 GHz. Alternative connectors, inculding N type and SMA type, waveguide flange are available on request. Standard gain horn antenna OHC284-15 is kown as a waveguide horn covers WG10, WR284 and R32 bands. It is manufactured using the precision CNC integrated sections providing accurate, consistent and reliable performance, which ensured that the deformation rate is less than 0.01 under limiting conditions. The series antennas cross-polarization is less than -40dB. This series antennas are suitable for standard field stength meaurment and standard field stength generator and antenna gain measurements.
HPBW of OHC284-15 has a E-Plane & H-Plane beam width from 23 degree to 34 degree. Side lobes in the H plane are all more than 20 dB down. First side lobes in the E plane are 13 dB down, second sid lobes are 18 dB down and all other E plane lobes are more than 20 dB down.SKU: OHC-284-15
- Cavity Band Rejection Filter, Cavity Filters
Cavity Band Rejection Filter OBR-2410-20
Ocean Microwave Bandstop Filters (Ocean Bandstop Filters，abbreviation：OBR) refer to filters that can pass through most frequency but attenuate some range of frequency to extremely low levels, which is opposite to the concept of band-pass filters. Among them, the notch filter is a special band-stop filter witha very small stop band range and a very high Q Factor.
The product name of this Ocean Band stop Filters (OBR) is OBR-2410-20 ,its Stop Band Frequency is 2400～2420MHz，Stop Band attenuation is 40dB ，its Pass Band Frequency is DC～2360MHz2460～6000MHz ,and its Pass Band Insertion Loss is 1.5dB . Its Pass Band VSWR is 1.5:1.SKU: OBR-2410-20
- E-System FLEX, RF Cables, RG-316
Right Angle SSMC Plug to SSMC Plug RG-316 Coax and RoHS F065-381R0-381S0-30-NE-System FLEX, RF Cables, RG-316
Right Angle SSMC Plug to SSMC Plug RG-316 Coax and RoHS F065-381R0-381S0-30-N
This RFecho cable assembly is built with RG-316 coax. RF cable assembly is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc.
RFecho products having 1.35:1 VSWR, Velocity of Propagation of 70% and the Capacitance of 32 [104.99] pF/ft [pF/m].SKU: F065-381R0-381S0-30-N
