2.40mm 50 GHz, 0.009″ Accept Pin Diameter, Thread-In Male Connector
Model D371-P09-Y02-A is a Male connector. 2.40mm connectors are durable, Operational temperature rating of -55°C to +135°C. 2.40mm having low insertion loss, excellent repeatability, RF leakage ≤ -100 dB.
2.40mm Connectors offer the frequency range from DC to 50 GHz, and the mounting method is Thread-In, where the flange size is NA. This model of 2.40mm connector provide the accept pin diameter of 0.009″ inches.
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
2.40mm Connectors |
|
|
2.40mm 50 GHz, 0.009″ Accept Pin Diameter, Thread-In NA Mounting Flange Male Connector |
|
|
D371-P09-Y02-A |
|
|
Model D371-P09-Y02-A is a Male connector. 2.40mm connectors are durable, Operational temperature rating of -55°C to +135°C. 2.40mm having low insertion loss, excellent repeatability, RF leakage ≤ -100 dB. 2.40mm Connectors offer the frequency range from DC to 50 GHz, and the mounting method is Thread-In, where the flange size is NA. This model of 2.40mm connector provide the accept pin diameter of 0.009″ inches. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
DC |
|
Max. Frequency (GHz) |
50 |
|
Flange (inch) |
NA |
|
Mounting |
Thread-In |
|
Accept Pin Diameter (inch) |
0.009″ |
|
Gender |
Male |
|
Features |
|
|
Low VSWR |
|
|
Free through 50 GHz |
|
|
Applications |
|
|
Telecom Communication |
|
|
Sub-assemblies |
|
|
Radio equipment and instruments |
|
|
Wireless Communication |
|
|
Test Labs |
|
|
Instrumentations |
|
Outline

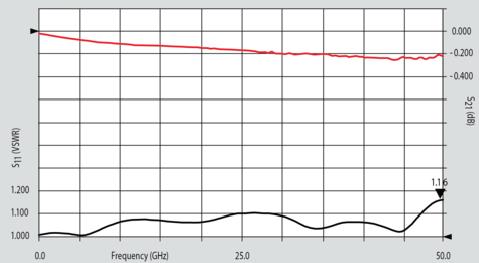

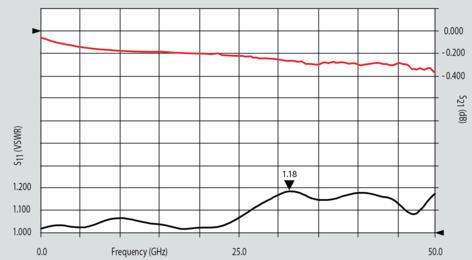

Plot
Additional information
| Min. Frequency (GHz) | DC |
|---|---|
| Max. Frequency (GHz) | 50 |
| Flange (inch) | |
| Mounting | |
| Accept Pin Diameter (inch) | |
| Gender |
