2.92mm 40 GHz, 0.02″ Accept Pin Diameter, Thread In Male Connector
This Model D361-P20-Y02 is a Male connector. 2.92mm (K) Connectors are durable, operational temperature rating of -55°C to +135°C., offering well-matched impedance, excellent repeatability, lowest VSWR, RF leakage ≤ -100 dB.
2.92mm (K) Connectors offers the frequency range from DC to 40 GHz. This model is Thread In mounting. This model of 2.92mm (K) Connectors provides the accept pin diameter of 0.02″inches.
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
2.92mm (K) Connectors |
|
|
2.92mm 40 GHz, 0.02″ Accept Pin Diameter, Thread In NA Mounting Flange Male Connector |
|
|
D361-P20-Y02 |
|
|
This Model D361-P20-Y02 is a Male connector. 2.92mm (K) Connectors are durable, operational temperature rating of -55°C to +135°C., offering well-matched impedance, excellent repeatability, lowest VSWR, RF leakage ≤ -100 dB. 2.92mm (K) Connectors offers the frequency range from DC to 40 GHz. This model is Thread In mounting. This model of 2.92mm (K) Connectors provides the accept pin diameter of 0.02″inches. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
DC |
|
Max. Frequency (GHz) |
40 |
|
Flange (inch) |
NA |
|
Mounting |
Thread In |
|
Accept Pin Diameter (inch) |
0.02″ |
|
Gender |
Male |
|
Features |
|
|
Low VSWR |
|
|
Free through 40 GHz |
|
|
Applications |
|
|
Telecom Communication |
|
|
Sub-assemblies |
|
|
Radio equipment and instruments |
|
|
Wireless Communication |
|
|
Test Labs |
|
|
Instrumentations |
|
Outline

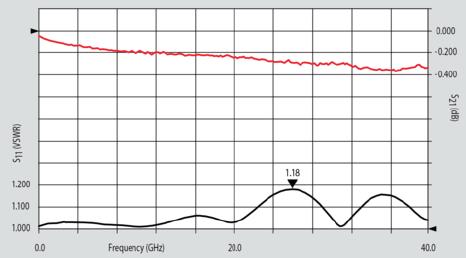

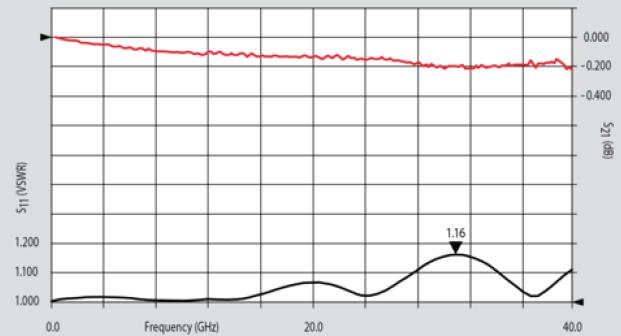

Plot
Additional information
| Min. Frequency (GHz) | DC |
|---|---|
| Max. Frequency (GHz) | 40 |
| Flange (inch) | |
| Mounting | |
| Accept Pin Diameter (inch) | |
| Gender |
