20 dBi Gain, 100 GHz to 112 GHz, 0.08″ Diameter Circular Waveguide WR-08 Waveguide F Band Conical Horn Antennas

OCN-08-20

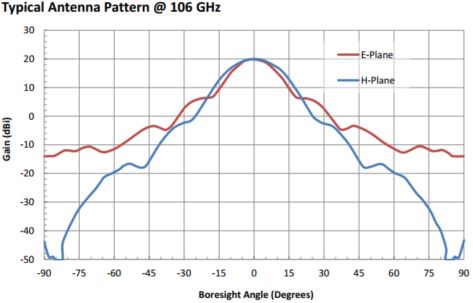

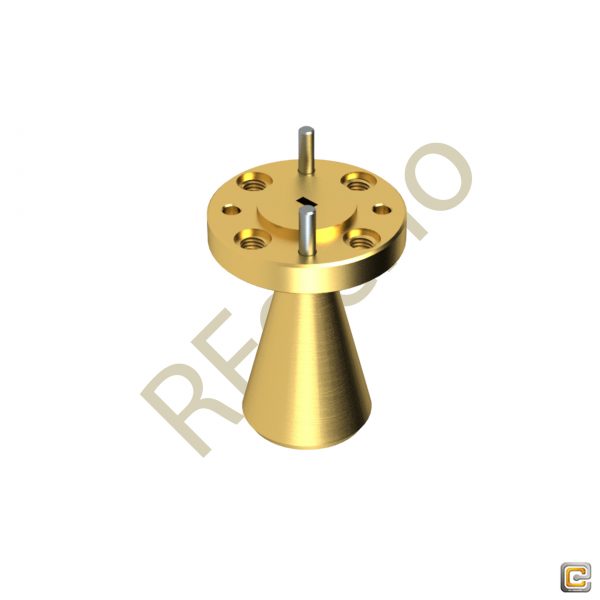

Model OCN-08-20 is a F Band conical horn antenna that operates from 100 GHz to 112 GHz. The antenna offers 20 dB nominal gain and a typical half power beamwidth of 16 degrees on the E-plane and 20 degrees on the H-plane.

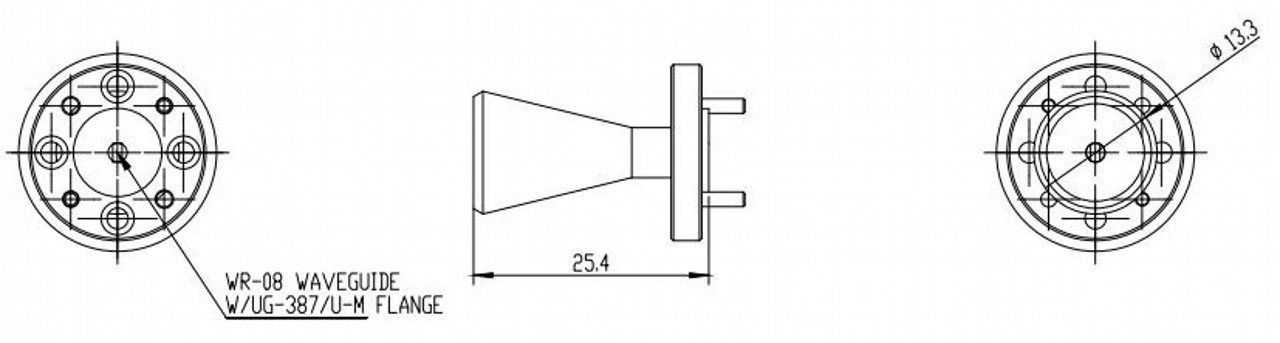

The horn also offers typical side lobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.08 diameter circular waveguide with UG-387/U-M flange.

Property

Value

Min. Frequency (GHz)

100

Max. Frequency (GHz)

112

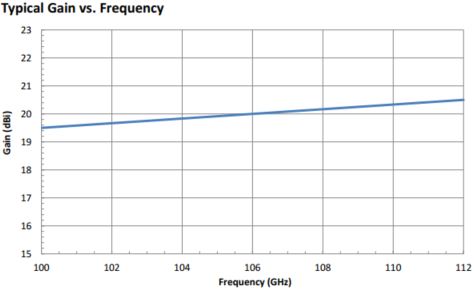

Gain(dBi)

20

3 dB Beamwidth, E-plane (?)

16

3 dB Beamwidth, H-plane (?)

20

Side Lobes, E-Plane (dB)

-20

Side Lobes, H-Plane (dB)

-28

Return Loss (dB)

NA

Waveguide

WR-08

Band Type

F Band

Flange

UG-387/U-M flange

Diameter (Inch)

0.08

VSWR

1.15:1

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear and Circular Polarization

Applications

Antenna Ranges

Feed Horns

System Setups
