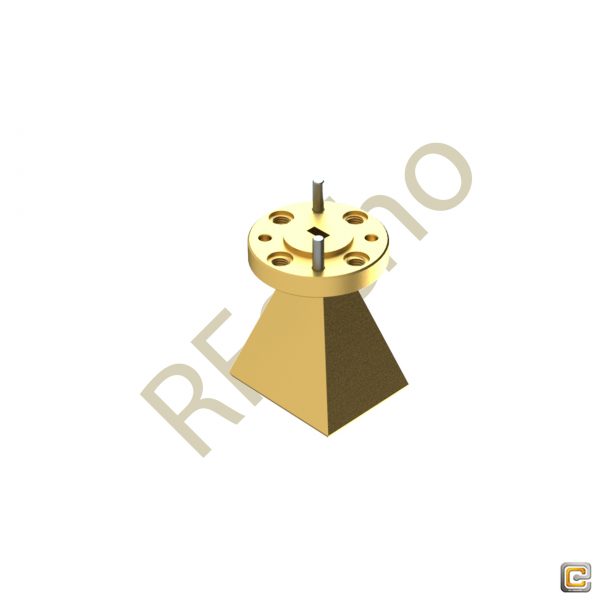

20 dBi Gain, 50 GHz to 75 GHz, WR-15 . OLB-15-20 Waveguide Millimeter SGH Antenna
Original price was: $812.$690Current price is: $690.
This model OLB-15-20 is a Millimeter SGH Antenna, operating frequency range is 50 GHz to 75 GHz. Millimeter SGH Antenna offers nominal gain 20dBi and typical half power beam width on the E-plane and H-plane is H 18° / V 18°.
Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-15 waveguide withUG-385/U Flange. The Impedance used Standard gain horn antenna is 50 Ohms.
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
Millimeter SGH Antenna |
|
|
20 dBi Gain, 50 GHz to 75 GHz, WR-15 Waveguide Millimeter SGH Antenna |
|
|
OLB-15-20 |
|
|
This model OLB-15-20 is a Millimeter SGH Antenna, operating frequency range is 50 GHz to 75 GHz. Millimeter SGH Antenna offers nominal gain 20dBi and typical half power beam width on the E-plane and H-plane is H 18° / V 18°. Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-15 waveguide withUG-385/U Flange. The Impedance used Standard gain horn antenna is 50 Ohms. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
50 |
|
Max. Frequency (GHz) |
75 |
|
Gain(dBi) |
20 |
|
HPBW 3 dB Beamwidth |
H 18° / V 18° |
|
Waveguide |
WR-15 |
|
Flange |
UG-385/U Flange |
|
Material |
Cu |
|
Polarization |
Linear |
|
Impedance (?) |
50 |
|
Features |
|
|
Rectangular Waveguide Interface |
|
|
Precisely Machined and Gold Plated |
|
|
Linear Polarization |
|
|
High Return Loss |
|
|
Applications |
|
|
Antenna Ranges |
|
|
Antenna Gain Measurements |
|
|
System Setup |
|

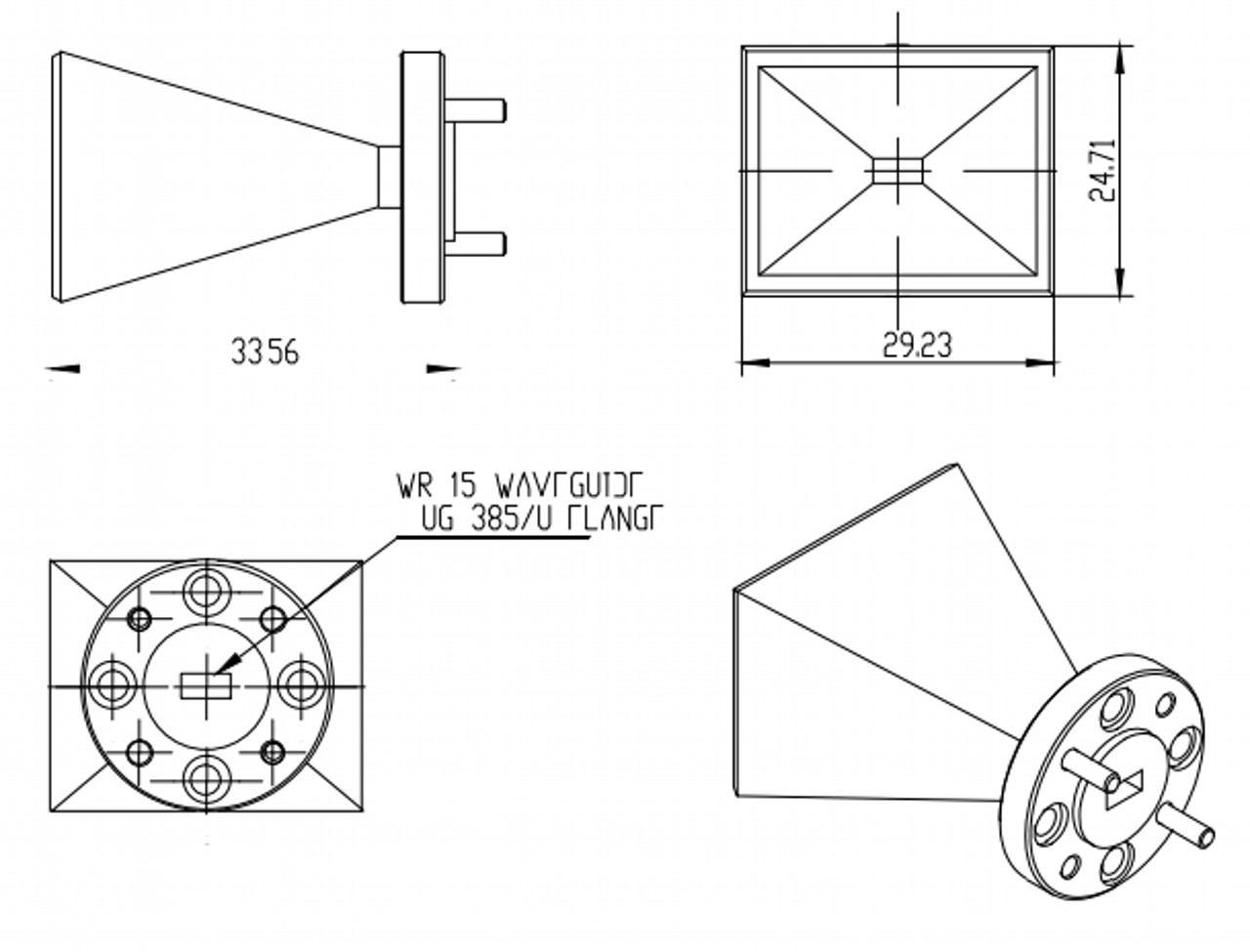

Outline

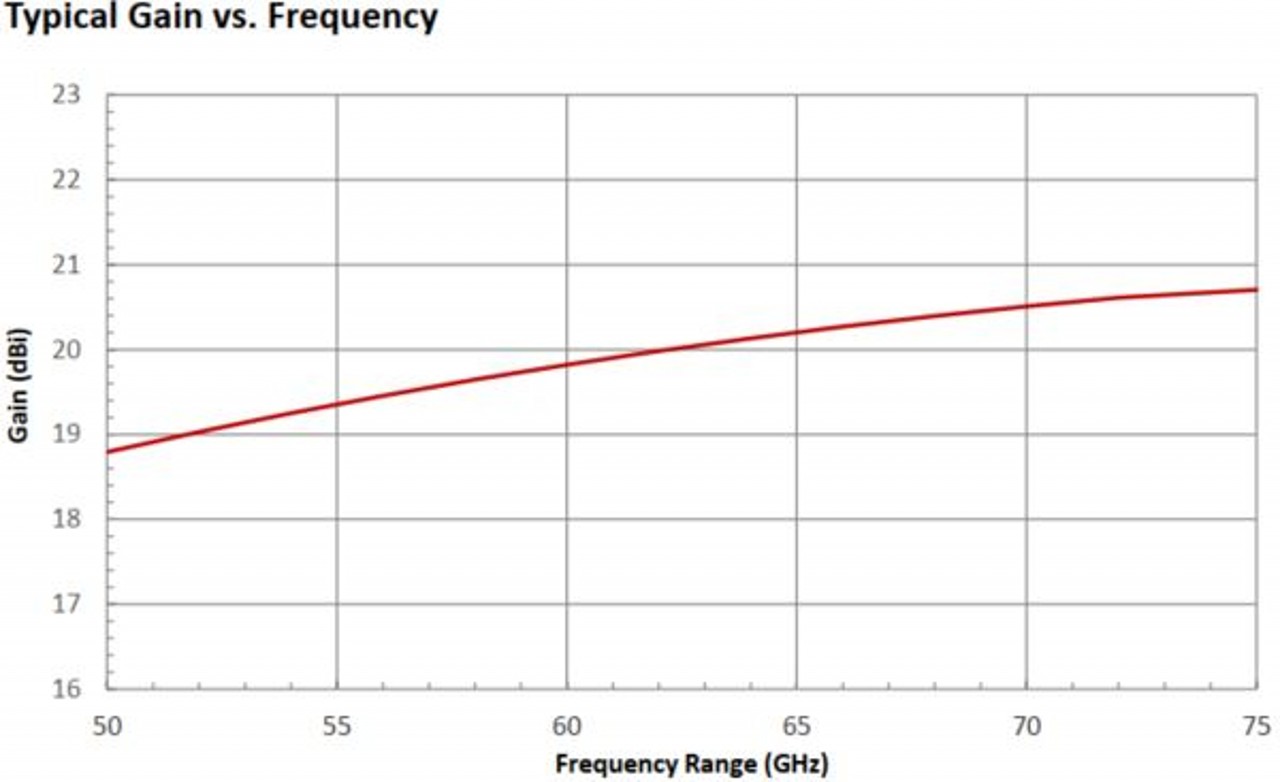

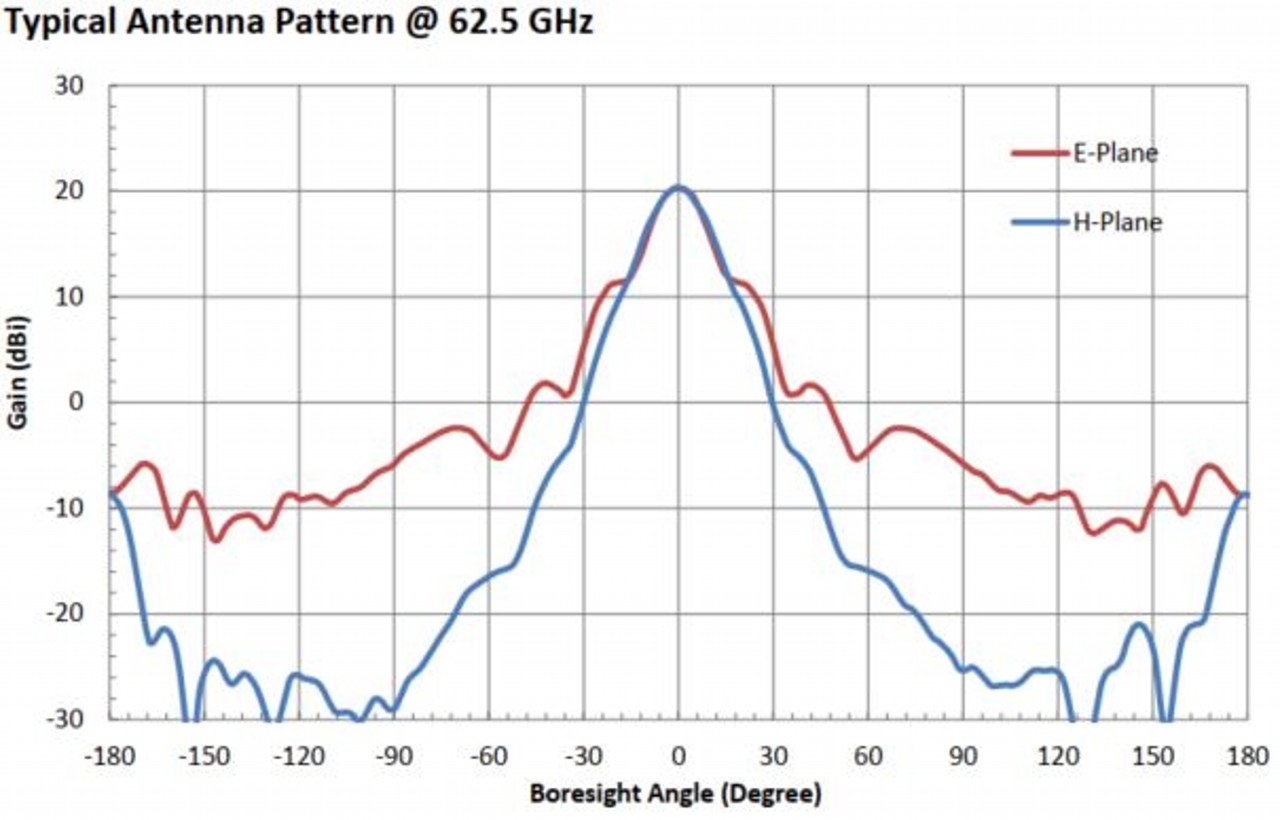

Plot
Additional information
| Min. Frequency (GHz) | 50 |
|---|---|
| Max. Frequency (GHz) | 75 |
| Gain (dBi) | 20 |
| Flange | |
| HPBW 3 dB Beamwidth | |
| Waveguide | |
| Material | |
| Polarization | |
| Impedance (Ω) |
