20 dBi Gain, 58 GHz to 68 GHz, 0.141″ Diameter Circular Waveguide WR-141 Waveguide V Band Conical Horn Antennas

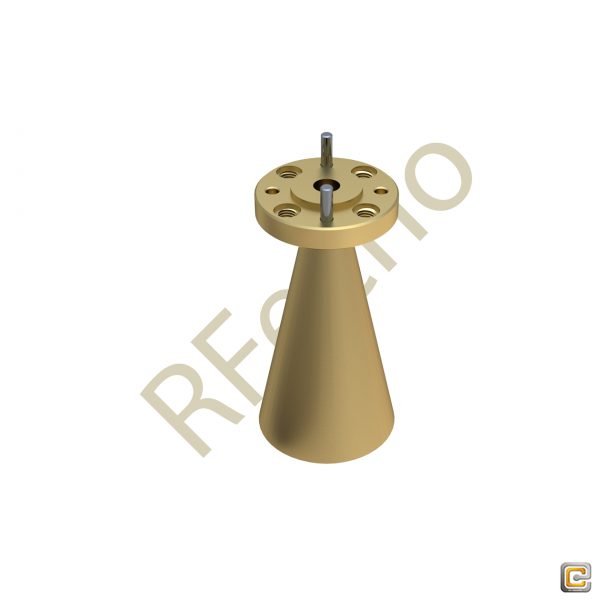

Model OCN-141-20 is a WR-141 Circular Waveguide V Band conical horn antenna that operates from 58 GHz to 68 GHz. The antenna offers 20 dB nominal gain and a typical half-power beamwidth of 16 degrees on the E-plane and 20 degrees on the H-plane.
The horn also offers typical side lobes of 20 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.141 diameter circular waveguide with UG-385/U-M flange.
- Description
- Additional information
- Reviews (0)
Description
Model OCN-141-20 is a WR-141 Circular Waveguide V Band conical horn antenna that operates from 58 GHz to 68 GHz. The antenna offers 20 dB nominal gain and a typical half-power beamwidth of 16 degrees on the E-plane and 20 degrees on the H-plane.
The horn also offers typical side lobes of 20 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.141 diameter circular waveguide with UG-385/U-M flange.
SPEC
WR-141 Circular Waveguide V Band Conical Horn Antennas |
|
|
20 dBi Gain, 58 GHz to 68 GHz, 0.141″ Diameter |
|
|
OCN-141-20 |
|
|
Model OCN-141-20 is a V Band conical horn antenna that operates from 58 GHz to 68 GHz. The antenna offers 20 dB nominal gain and a typical half-power beamwidth of 16 degrees on the E-plane and 20 degrees on the H-plane. The horn also offers typical side lobes of 20 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.141 diameter circular waveguide with UG-385/U-M flange. |
|
Property |
Value |
|
Min. Frequency (GHz) |
58 |
|
Max. Frequency (GHz) |
68 |
|
Gain(dBi) |
20 |
|
3 dB Beamwidth, E-plane (?) |
16 |
|
3 dB Beamwidth, H-plane (?) |
20 |
|
Side Lobes, E-Plane (dB) |
20 |
|
Side Lobes, H-plane (dB) |
28 |
|
Return Loss (dB) |
23 |
|
Waveguide |
WR-141 |
|
Band Type |
V Band |
|
Flange |
UG-385/U-M flange |
|
Diameter (Inch) |
0.141 |
|
VSWR |
NA |
Features |
|
|
Circular Waveguide Interface |
|
|
Precisely Machined and Gold Plated |
|
|
High Return Loss |
|
|
Linear and Circular Polarization |
|
Applications |
|
|
Antenna Ranges |
|
|
Feed Horns |
|
|
System Setups |
|

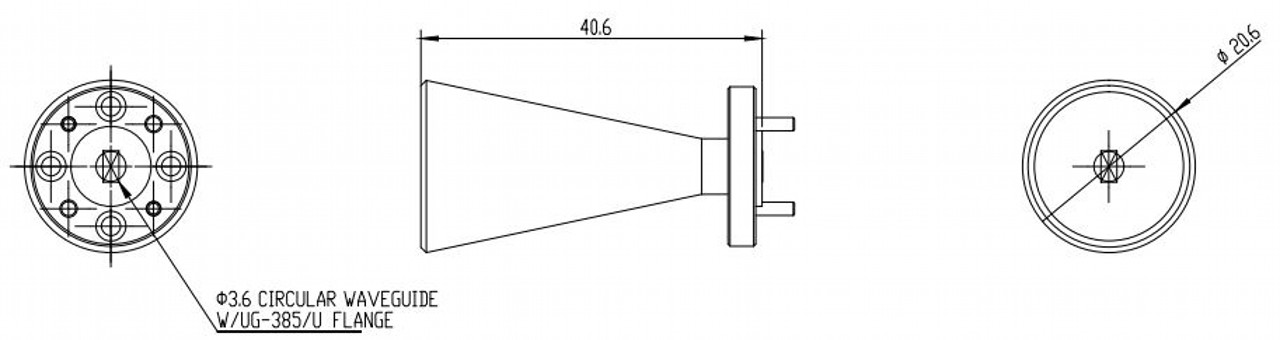

Outline

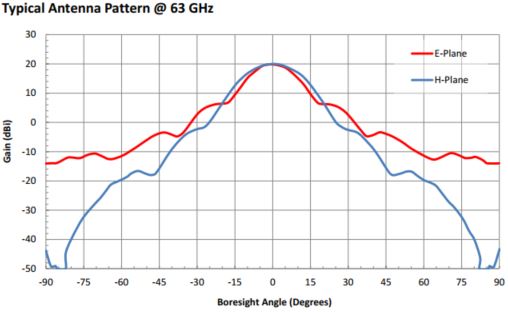

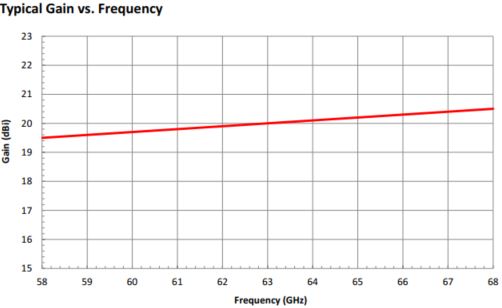

Plot
Additional information
| Min. Frequency (GHz) | 58 |
|---|---|
| Max. Frequency (GHz) | 68 |
| Gain (dBi) | 20 |
| Waveguide | |
| VSWR | NA |
| Side Lobes, H-Plane (dB) | |
| Side Lobes, E-Plane (dB) | |
| Flange | |
| Band Type | |
| Return Loss (dB) | |
| Diameter (inch) |
