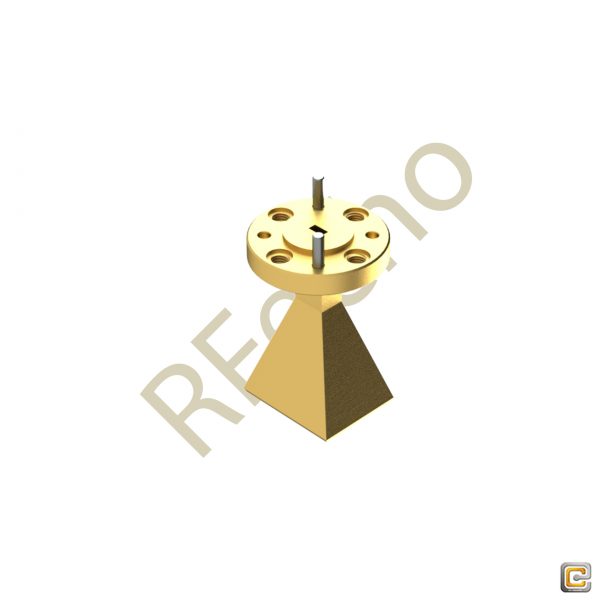

20 dBi Gain, 60 GHz to 90 GHz, WR-12 Waveguide Millimeter SGH Antenna
$940
This model OLB-12-20 is a Millimeter SGH Antenna, operating frequency range is 60 GHz to 90 GHz. Millimeter SGH Antenna offers nominal gain 20dBi and typical half power beam width on the E-plane and H-plane is H 18° / V 18°.
Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-12 waveguide withUG-387/U Flange. The Impedance used Standard gain horn antenna is 50 Ohms.
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
Millimeter SGH Antenna |
|
|
20 dBi Gain, 60 GHz to 90 GHz, WR-12 Waveguide Millimeter SGH Antenna |
|
|
OLB-12-20 |
|
|
This model OLB-12-20 is a Millimeter SGH Antenna, operating frequency range is 60 GHz to 90 GHz. Millimeter SGH Antenna offers nominal gain 20dBi and typical half power beam width on the E-plane and H-plane is H 18° / V 18°. Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-12 waveguide withUG-387/U Flange. The Impedance used Standard gain horn antenna is 50 Ohms. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
60 |
|
Max. Frequency (GHz) |
90 |
|
Gain(dBi) |
20 |
|
HPBW 3 dB Beamwidth |
H 18° / V 18° |
|
Waveguide |
WR-12 |
|
Flange |
UG-387/U Flange |
|
Material |
Cu |
|
Polarization |
Linear |
|
Impedance (?) |
50 |
|
Features |
|
|
Precisely Machined and Gold Plated |
|
|
Low VSWR |
|
|
Light Weight |
|
|
Linear Polarization |
|
|
Low Return Loss |
|
|
Rectangular Waveguide Interface |
|
|
Lower sidelobes and symmetrical radiation patterns |
|
|
Applications |
|
|
Antenna Ranges |
|
|
Antenna Gain Measurements |
|
|
System Setup |
|

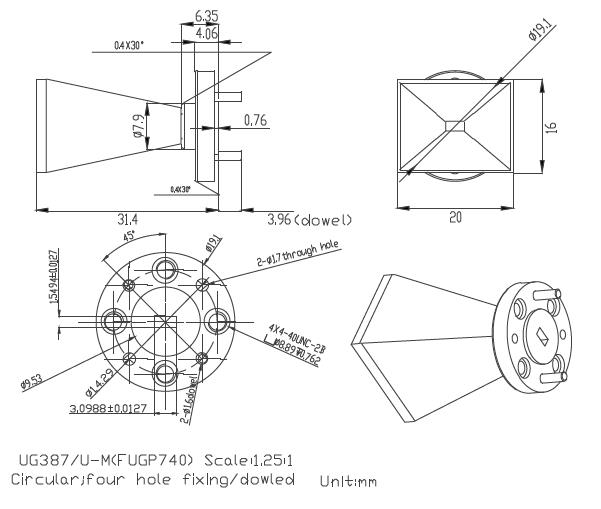

Outline

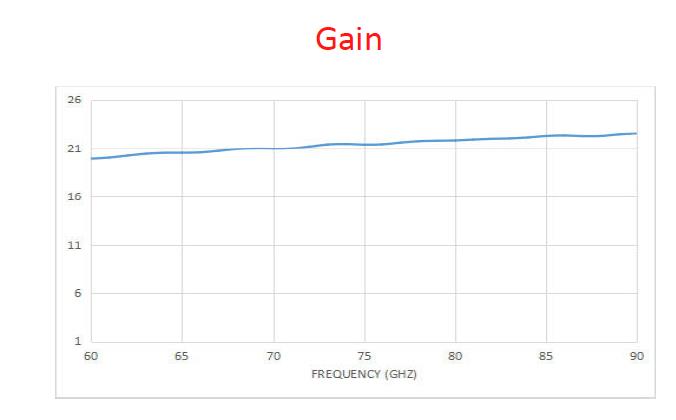

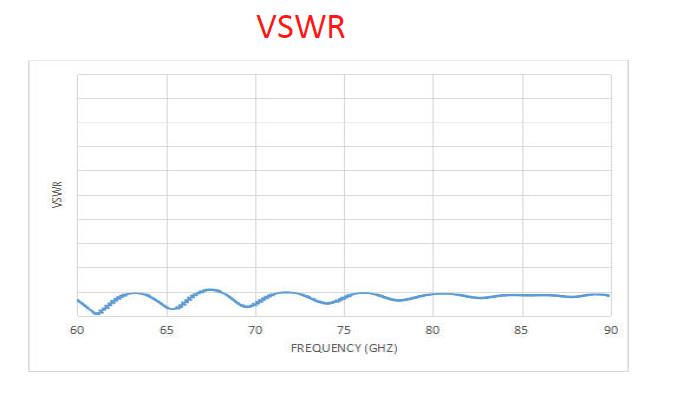

Plot
