20 dBi Gain, 68 GHz to 77 GHz, 0.125″ Diameter Circular Waveguide WR-125 Waveguide E Band Conical Horn Antennas

Conical Horn Antennas

20 dBi Gain, 68 GHz to 77 GHz, 0.125″ Diameter Circular Waveguide WR-125 Waveguide E Band Conical Horn Antennas

OCN-125-20

Model OCN-125-20 is a E Band conical horn antenna that operates from 68 GHz to 77 GHz. The antenna offers 20 dB nominal gain and a typical half power beamwidth of 16 degrees on the E-plane and 20 degrees on the H-plane.

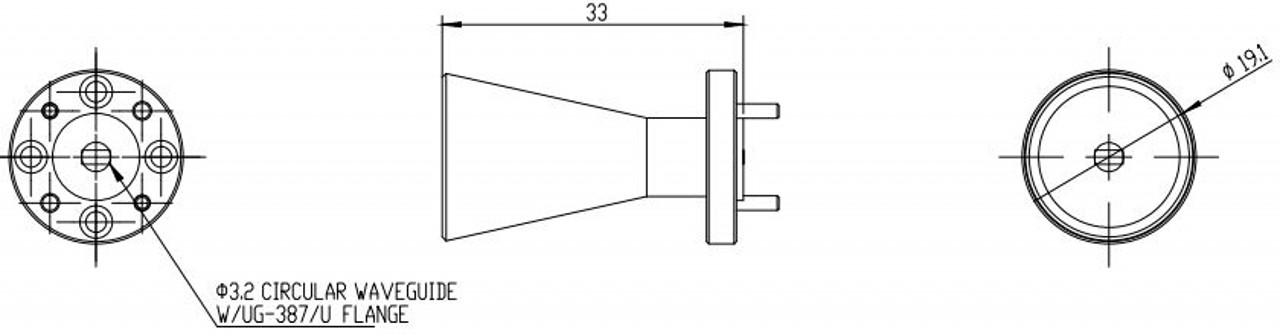

The horn also offers typical side lobes of 20 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.125 diameter circular waveguide with UG-387/U-M flange.

Property

Value

Min. Frequency (GHz)

68

Max. Frequency (GHz)

77

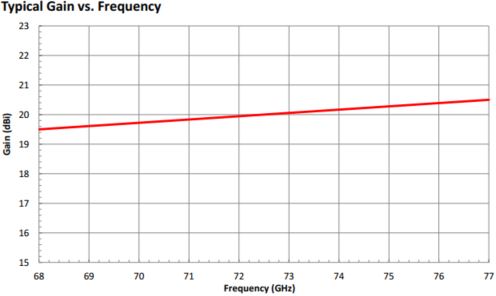

Gain(dBi)

20

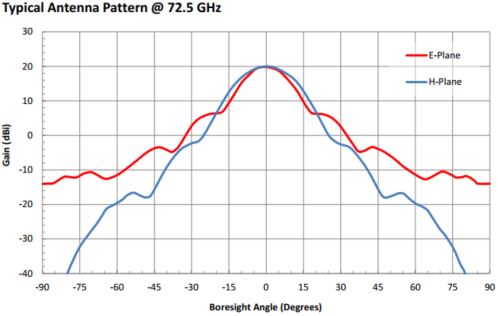

3 dB Beamwidth, E-plane (?)

16

3 dB Beamwidth, H-plane (?)

20

Side Lobes, E-Plane (dB)

20

Side Lobes, H-Plane (dB)

28

Return Loss (dB)

23

Waveguide

WR-125

Band Type

E Band

Flange

UG-387/U-M flange

Diameter (Inch)

0.125

VSWR

NA

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear and Circular Polarization

Applications

Antenna Ranges

Feed Horns

System Setups
