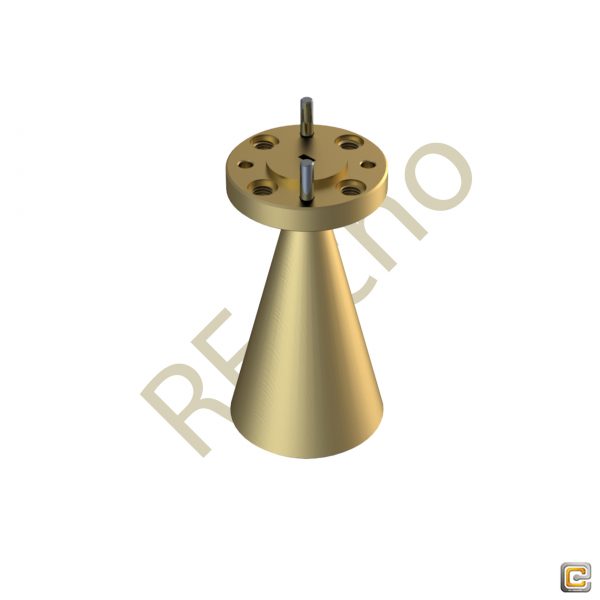

23 dBi Gain, 100 GHz to 112 GHz, 0.08″ Diameter Circular Waveguide WR-08 Waveguide F Band Conical Horn Antennas

$749

Frequency: 100-112GHz
Gain: 23dBi.
Waveguide: WR-08
Side Lobes,E-Plane,H-plane: -20,-28
Flange: UG-387/U-M flange
Band Type: F Band
Return Loss: 23dB
Diameter: 0.08Inch
The OCN-08-23 Conical Horn Antennas is suitable for Antenna Ranges,Feed Horns and System Setups.

SKU: OCN-08-23 Categories: Conical Horn Antennas, RF Antenna

Description

Conical Horn Antennas

23 dBi Gain, 100 GHz to 112 GHz, 0.08″ Diameter Circular Waveguide WR-08 Waveguide F Band Conical Horn Antennas

OCN-08-23

Model OCN-08-23 is a F Band conical horn antenna that operates from 100 GHz to 112 GHz. The antenna offers 23 dB nominal gain and a typical half power beamwidth of 11 degrees on the E-plane and 13 degrees on the H-plane.

The horn also offers typical side lobes of 20 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.08 diameter circular waveguide with UG-387/U-M flange.

Property

Value

Min. Frequency (GHz)

100

Max. Frequency (GHz)

112

Gain(dBi)

23

3 dB Beamwidth, E-plane

11°

3 dB Beamwidth, H-plane

13°

Side Lobes, E-Plane (dB)

20

Side Lobes, H-Plane (dB)

28

Return Loss (dB)

23

Waveguide

WR-08

Band Type

F Band

Flange

UG-387/U-M flange

Diameter (Inch)

0.08

VSWR

1.15:1

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear and Circular Polarization

Applications

Antenna Ranges

Feed Horns

System Setups

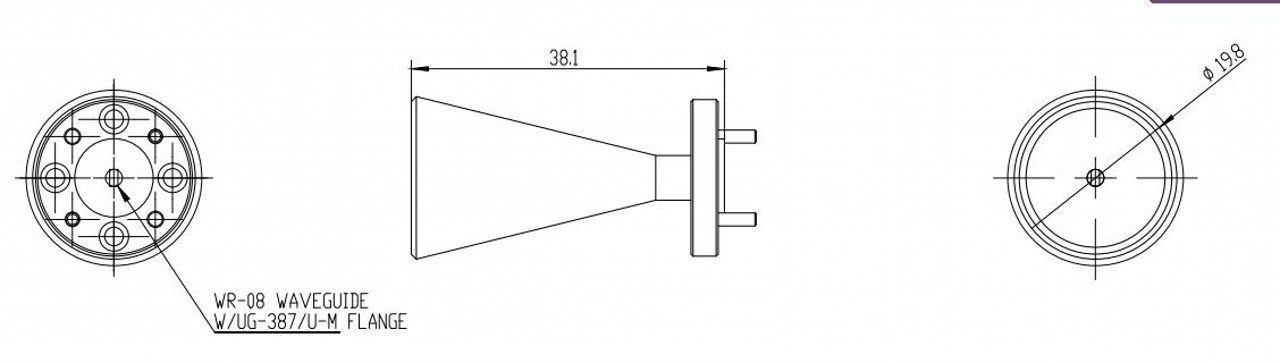

23 dBi Gain, 100 GHz to 112 GHz, 0.08″ Diameter Circular Waveguide WR-08 Waveguide F Band Conical Horn Antennas-Outline

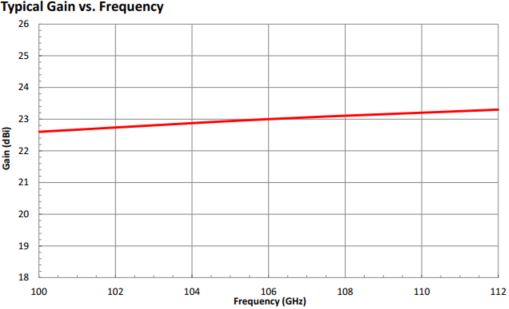

23 dBi Gain, 100 GHz to 112 GHz, 0.08″ Diameter Circular Waveguide WR-08 Waveguide F Band Conical Horn Antennas-Plot

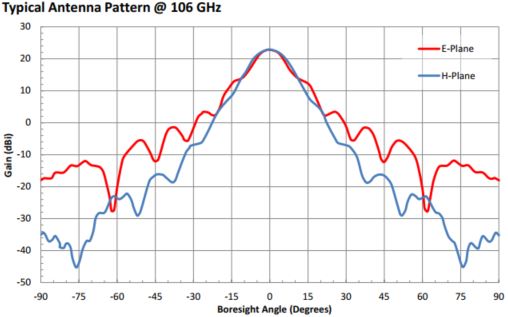

23 dBi Gain, 100 GHz to 112 GHz, 0.08″ Diameter Circular Waveguide WR-08 Waveguide F Band Conical Horn Antennas-Plot
