23 dBi Gain, 100 GHz to 112 GHz, 0.082″ Diameter Circular Waveguide WR-82 Waveguide F Band Conical Horn Antennas

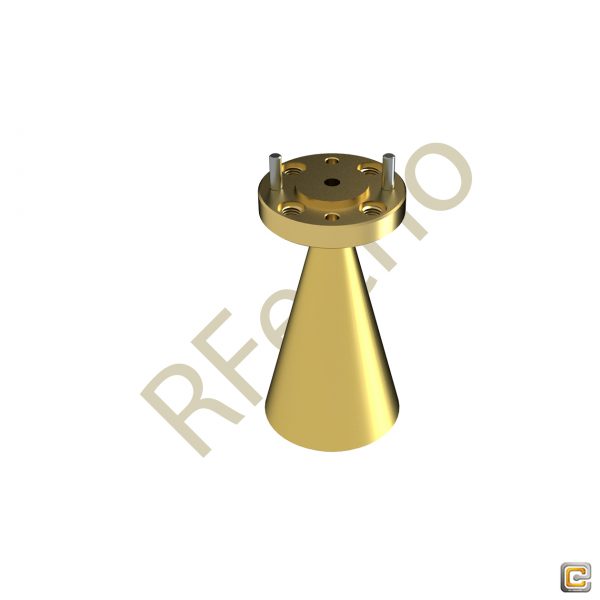

Model OCN-082-23 is a F Band conical horn antenna that operates from 100 GHz to 112 GHz. The antenna offers 23 dB nominal gain and a typical half power beamwidth of 11 degrees on the E-plane and 13 degrees on the H-plane.
The horn also offers typical side lobes of 20 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.082 diameter circular waveguide with UG-387/U-M flange.
- Description
- Additional information
- Reviews (0)
Description
SPEC
Conical Horn Antennas |
|
23 dBi Gain, 100 GHz to 112 GHz, 0.082″ Diameter Circular Waveguide WR-82 Waveguide F Band Conical Horn Antennas |
|
OCN-082-23 |
|
Model OCN-082-23 is a F Band conical horn antenna that operates from 100 GHz to 112 GHz. The antenna offers 23 dB nominal gain and a typical half power beamwidth of 11 degrees on the E-plane and 13 degrees on the H-plane. The horn also offers typical side lobes of 20 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.082 diameter circular waveguide with UG-387/U-M flange. |
|
Property |
Value |
Min. Frequency (GHz) |
100 |
Max. Frequency (GHz) |
112 |
Gain(dBi) |
23 |
3 dB Beamwidth, E-plane (?) |
11 |
3 dB Beamwidth, H-plane (?) |
13 |
Side Lobes, E-Plane (dB) |
20 |
Side Lobes, H-Plane (dB) |
28 |
Return Loss (dB) |
23 |
Waveguide |
WR-82 |
Band Type |
F Band |
Flange |
UG-387/U-M flange |
Diameter (Inch) |
0.082 |
VSWR |
NA |
Features |
|
Circular Waveguide Interface |
|
Precisely Machined and Gold Plated |
|
High Return Loss |
|
Linear and Circular Polarization |
|
Applications |
|
Antenna Ranges |
|
Feed Horns |
|
System Setups |

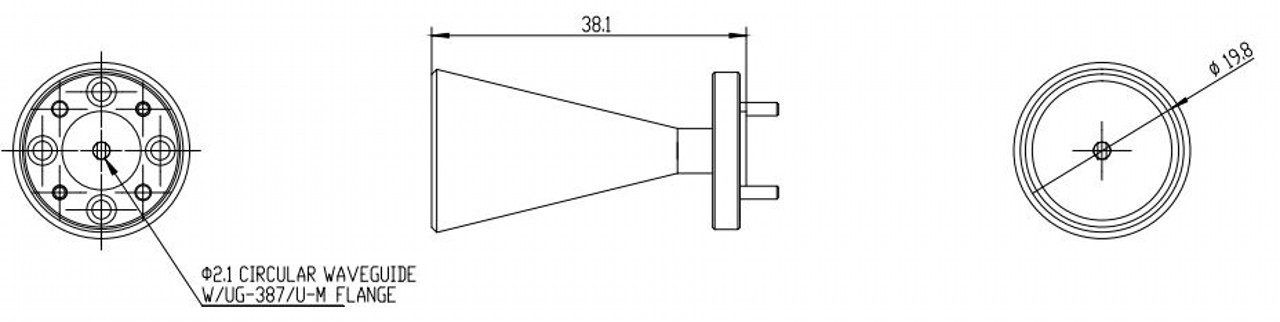

Outline

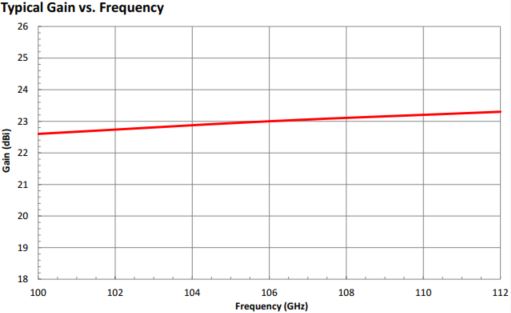

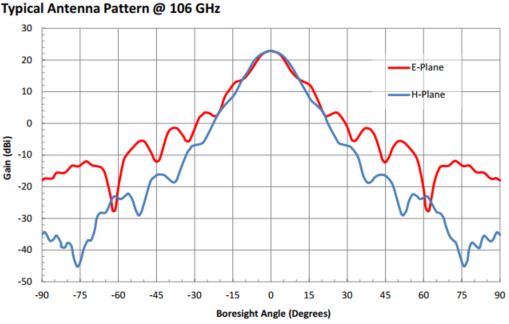

Plot
Additional information
Min. Frequency (GHz) | 100 |
---|---|
Max. Frequency (GHz) | 112 |
Gain (dBi) | 23 |
Waveguide | |
VSWR | NA |
Side Lobes, H-Plane (dB) | |
Side Lobes, E-Plane (dB) | |
Flange | |
Band Type | |
Return Loss (dB) | |
Diameter (inch) |
