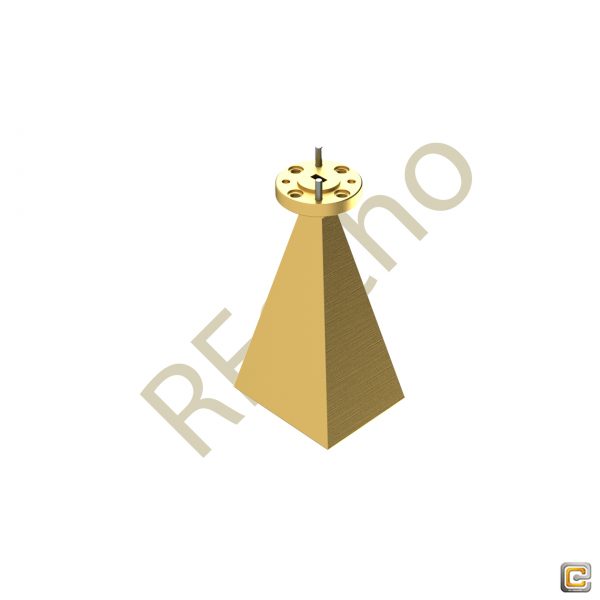

23 dBi Gain, 50 GHz to 75 GHz, WR-15 Waveguide Millimeter SGH Antenna

SKU: OLB-15-23

This model OLB-15-23 is a Millimeter SGH Antenna, operating frequency range is 50 GHz to 75 GHz. Millimeter SGH Antenna offers nominal gain 23dBi and typical half power beam width on the E-plane and H-plane is E 11° / H 13°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-15 waveguide withUG-385/U Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

SPEC

Millimeter SGH Antenna

23 dBi Gain, 50 GHz to 75 GHz, WR-15 Waveguide Millimeter SGH Antenna

OLB-15-23

This model OLB-15-23 is a Millimeter SGH Antenna, operating frequency range is 50 GHz to 75 GHz. Millimeter SGH Antenna offers nominal gain 23dBi and typical half power beam width on the E-plane and H-plane is E 11° / H 13°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-15 waveguide withUG-385/U Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

Property

Value

Min. Frequency (GHz)

50

Max. Frequency (GHz)

75

Gain(dBi)

23

HPBW 3 dB Beamwidth

E 11° / H 13°

Waveguide

WR-15

Flange

UG-385/U Flange

Material

Cu

Polarization

Linear

Impedance (?)

50

Features

Rectangular Waveguide Interface

Precisely Machined and Gold Plated

Linear Polarization

High Return Loss

Applications

Antenna Ranges

Antenna Gain Measurements

System Setup

PDF

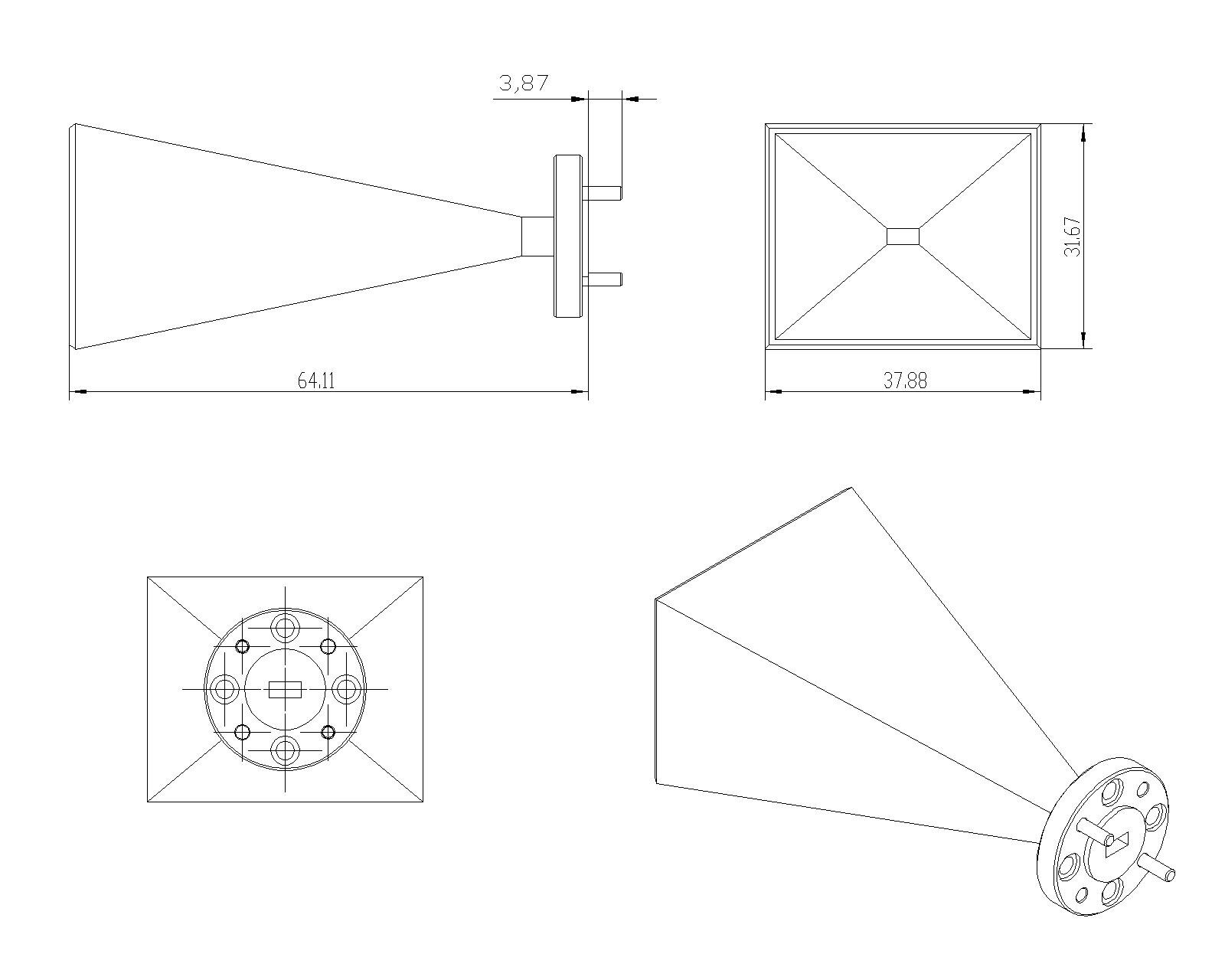

Outline

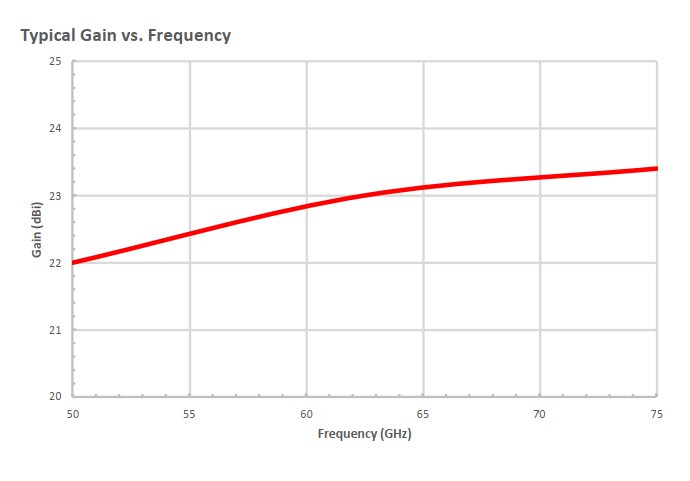

Plot
