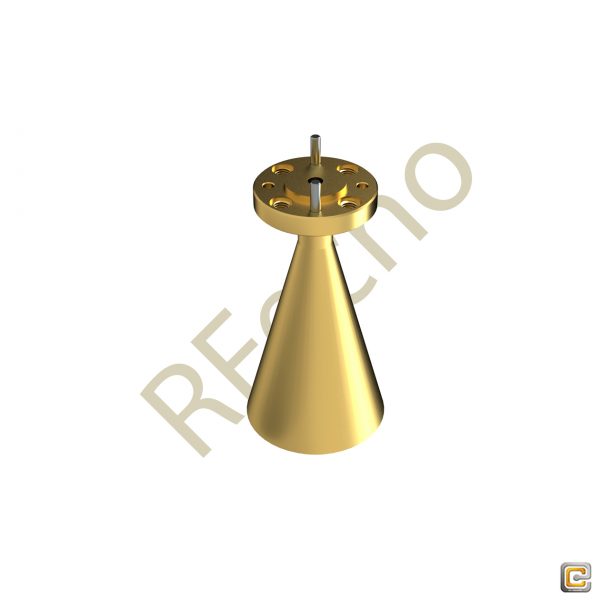

23 dBi Gain, 87 GHz to 100 GHz, 0.094″ Diameter Circular Waveguide WR-94 Waveguide W Band Conical Horn Antennas
$749
Frequency: 87-100GHz
Gain: 23dBi.
Waveguide: WR-94
VSWR: 1.15:1
Side Lobes,E-Plane,H-plane: -20,-28
Flange: UG-387/U-M flange
Band Type: W Band
Diameter: 0.094Inch
The OCN-094-23 Conical Horn Antennas is suitable for Antenna Ranges，Feed Horns and System Setups.
- Description
- Datasheet

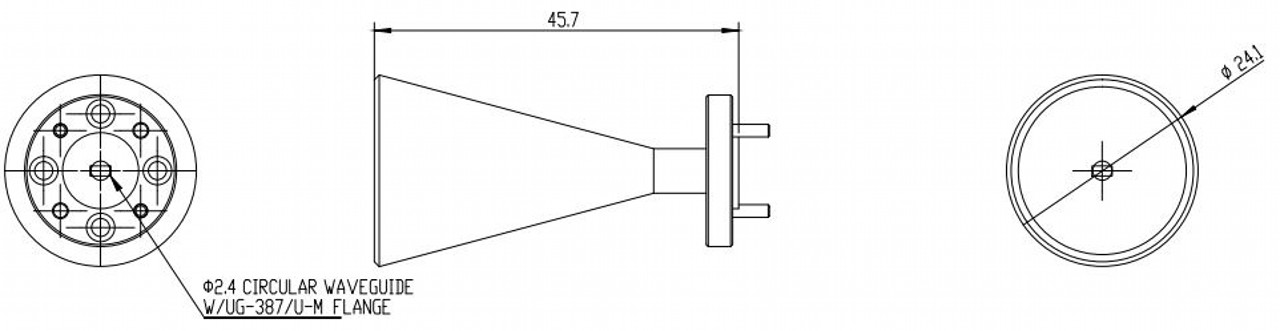

- Outline

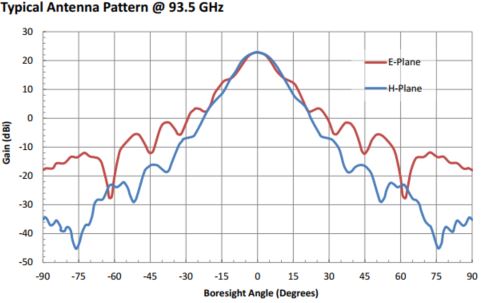

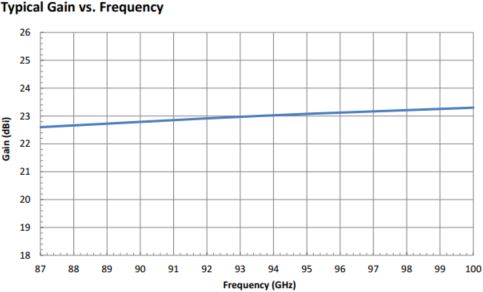

- Plot
- Reviews (0)
Description
|
Conical Horn Antennas |
|
|
23 dBi Gain, 87 GHz to 100 GHz, 0.094″ Diameter Circular Waveguide WR-94 Waveguide W Band Conical Horn Antennas |
|
|
OCN-094-23 |
|
|
Model OCN-094-23 is a W Band conical horn antenna that operates from 87 GHz to 100 GHz. The antenna offers 23 dB nominal gain and a typical half power beamwidth of 11 degrees on the E-plane and 13 degrees on the H-plane. The horn also offers typical side lobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.094 diameter circular waveguide with UG-387/U-M flange. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
87 |
|
Max. Frequency (GHz) |
100 |
|
Gain(dBi) |
23 |
|
3 dB Beamwidth, E-plane |
11° |
|
3 dB Beamwidth, H-plane |
13° |
|
Side Lobes, E-Plane (dB) |
-20 |
|
Side Lobes, H-Plane (dB) |
-28 |
|
Waveguide |
WR-94 |
|
Band Type |
W Band |
|
Flange |
UG-387/U-M flange |
|
Diameter (Inch) |
0.094 |
|
VSWR |
1.15:1 |
|
Features |
|
|
Circular Waveguide Interface |
|
|
Precisely Machined and Gold Plated |
|
|
High Return Loss |
|
|
Linear and Circular Polarization |
|
|
Applications |
|
|
Antenna Ranges |
|
|
Feed Horns |
|
|
System Setups |
|
