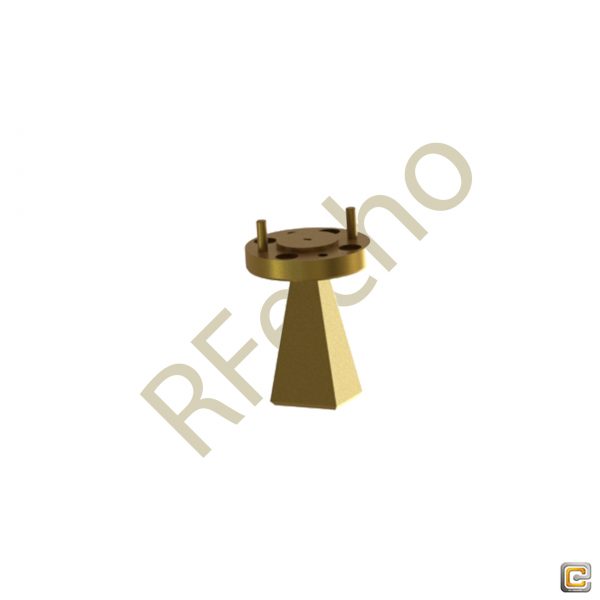

25 dBi Gain, 140 GHz to 220 GHz, WR-05 Waveguide Millimeter SGH Antenna

$1435

This model OLB-05-25 is a Millimeter SGH Antenna, operating frequency range is 140 GHz to 220 GHz. Millimeter SGH Antenna offers nominal gain 25dBi and typical half power beam width on the E-plane and H-plane is H 10° / V 10°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-05 waveguide withUG-387/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

Description

SPEC

Millimeter SGH Antenna

25 dBi Gain, 140 GHz to 220 GHz, WR-05 Waveguide Millimeter SGH Antenna

OLB-05-25

This model OLB-05-25 is a Millimeter SGH Antenna, operating frequency range is 140 GHz to 220 GHz. Millimeter SGH Antenna offers nominal gain 25dBi and typical half power beam width on the E-plane and H-plane is H 10° / V 10°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-05 waveguide withUG-387/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

Property

Value

Min. Frequency (GHz)

140

Max. Frequency (GHz)

220

Gain(dBi)

25

HPBW 3 dB Beamwidth

H 10° / V 10°

Waveguide

WR-05

Flange

UG-387/U-M Flange

Material

Cu

Polarization

Linear

Impedance (?)

50

Features

Rectangular Waveguide Interface

Precisely Machined and Gold Plated

Linear Polarization

High Return Loss

Applications

Antenna Ranges

Antenna Gain Measurements

System Setup

PDF

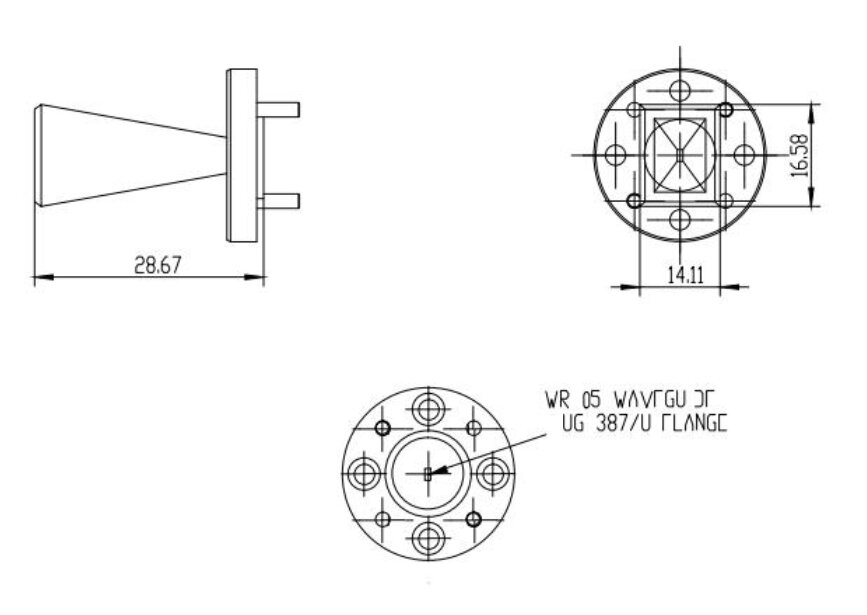

Outline

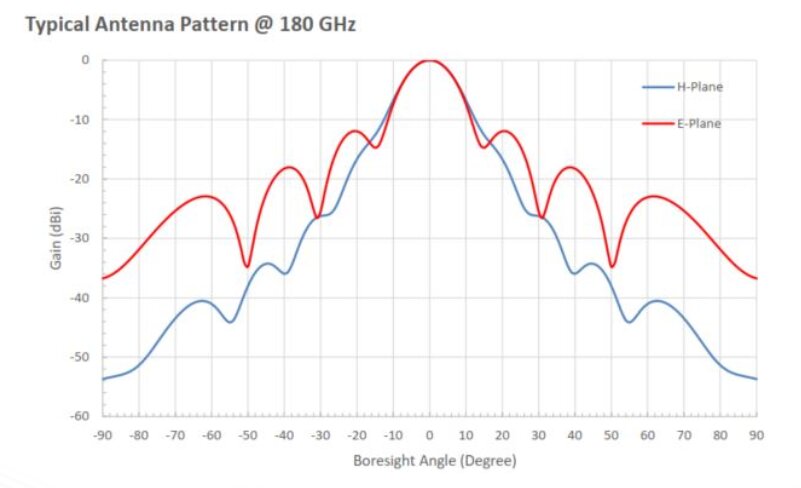

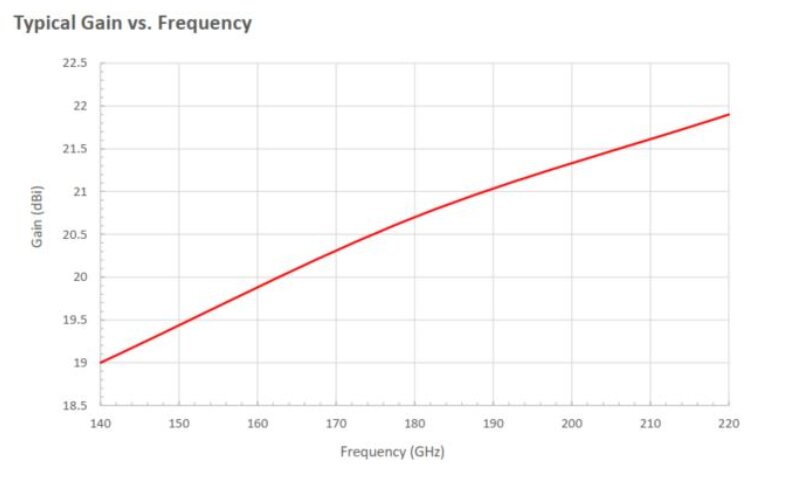

Plot

Additional information

Min. Frequency (GHz)

140

Max. Frequency (GHz)

220

Gain (dBi)

25

Flange

UG-387/U-M Flange

HPBW 3 dB Beamwidth

H 10° / V 10°

Waveguide

WR-05

Material

Cu

Polarization

Linear

Impedance (Ω)

50
