25 dBi Gain, 33 GHz to 50 GHz, WR-22 Waveguide Millimeter SGH Antenna OLB-22-25
Original price was: $1129.$960Current price is: $960.

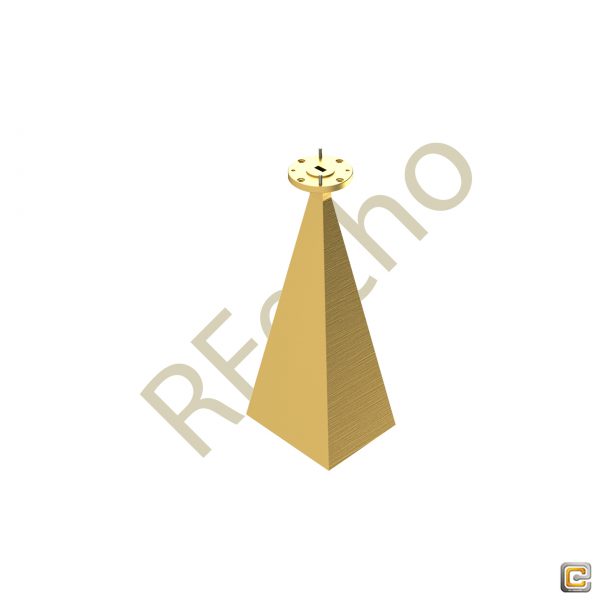

This model OLB-22-25 is a Millimeter SGH Antenna, operating frequency range is 33 GHz to 50 GHz. Millimeter SGH Antenna offers nominal gain 25dBi and typical half power beam width on the E-plane and H-plane is H 10° / V 10°.
Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-22 waveguide withUG-383/U Flange. The Impedance used Standard gain horn antenna is 50 Ohms.
- Description
- Additional information
- Reviews (0)
Description
|
Millimeter SGH Antenna |
|
|
25 dBi Gain, 33 GHz to 50 GHz, WR-22 Waveguide Millimeter SGH Antenna |
|
|
OLB-22-25 |
|
|
This model OLB-22-25 is a Millimeter SGH Antenna, operating frequency range is 33 GHz to 50 GHz. Millimeter SGH Antenna offers nominal gain 25dBi and typical half power beam width on the E-plane and H-plane is H 10° / V 10°. Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-22 waveguide withUG-383/U Flange. The Impedance used Standard gain horn antenna is 50 Ohms. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
33 |
|
Max. Frequency (GHz) |
50 |
|

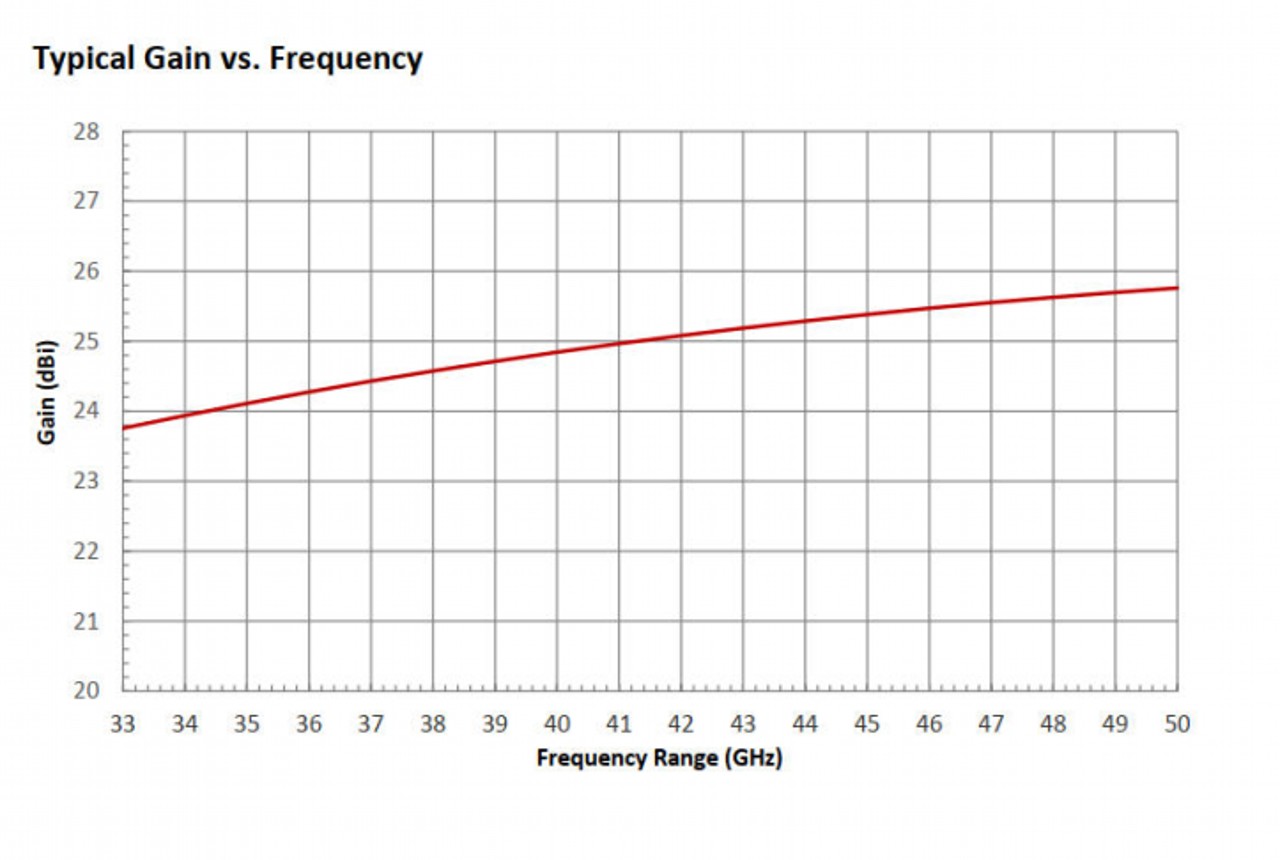

Gain(dBi) |
25 |
|

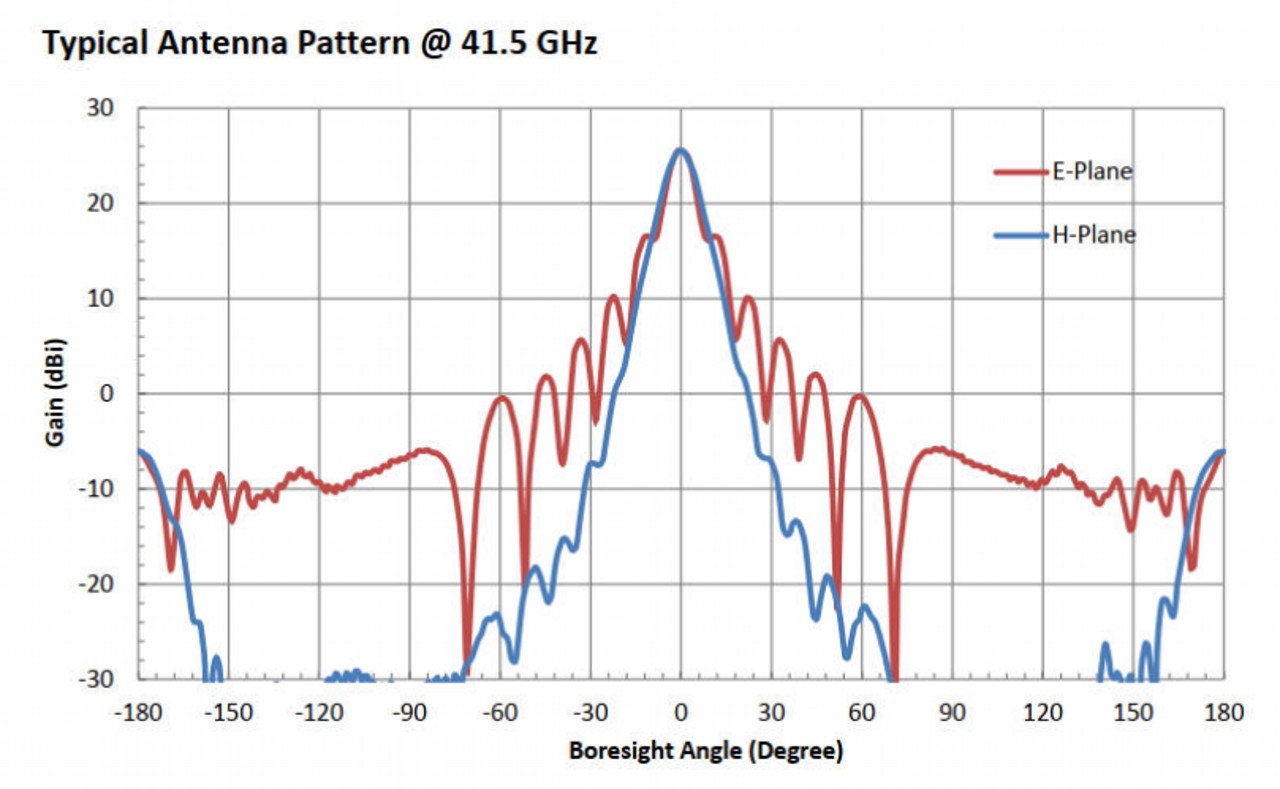

HPBW 3 dB Beamwidth |
H 10° / V 10° |
|

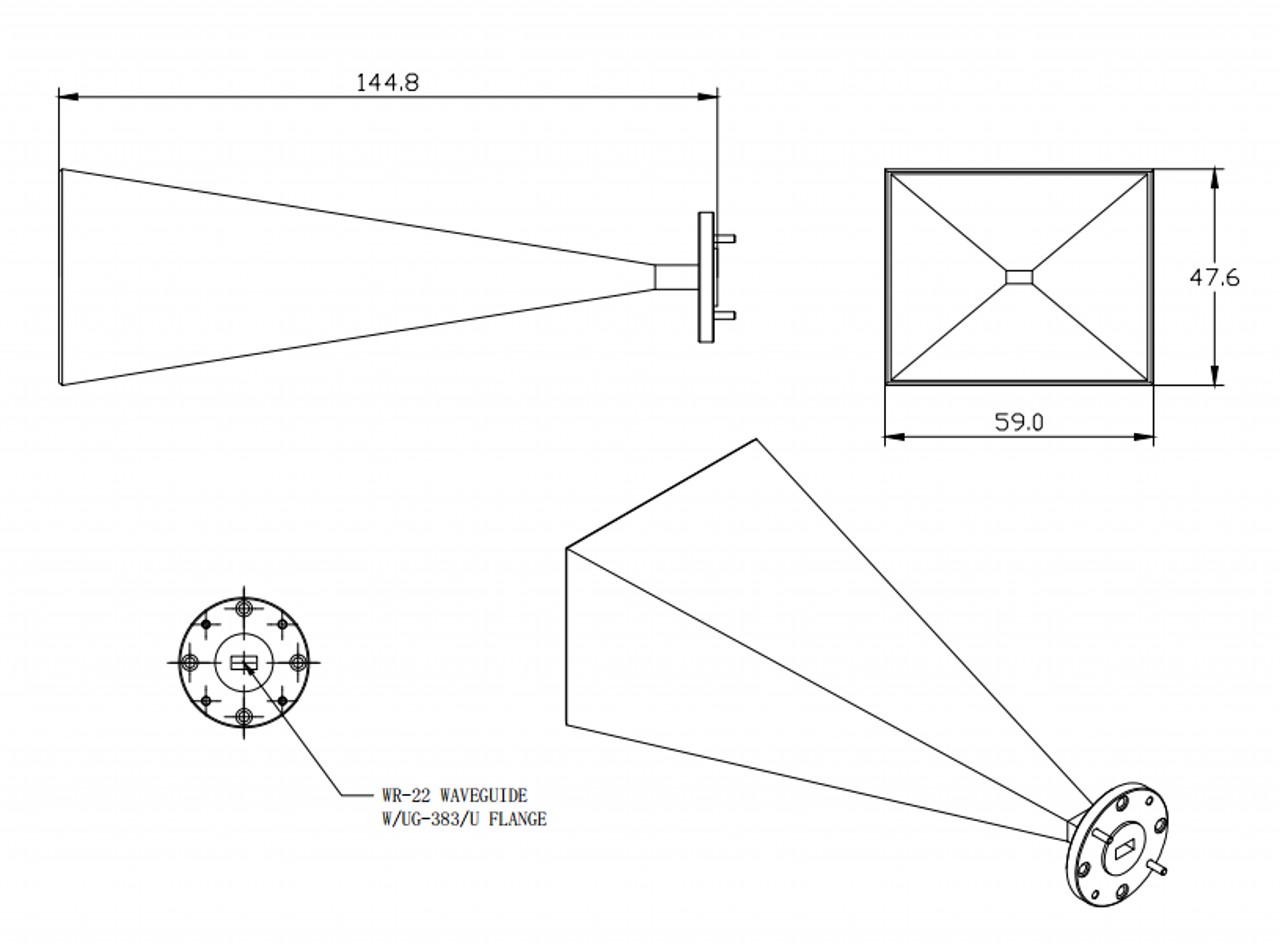

Waveguide |
WR-22 |
|
Flange |
UG-383/U Flange |
|
Material |
Cu |
|
Polarization |
Linear |
|
Impedance (?) |
50 |
|
Features |
|
|
Rectangular Waveguide Interface |
|
|
Precisely Machined and Gold Plated |
|
|
Linear Polarization |
|
|
High Return Loss |
|
|
Applications |
|
|
Antenna Ranges |
|
|
Antenna Gain Measurements |
|
|
System Setup |
|
Additional information
| Min. Frequency (GHz) | 33 |
|---|---|
| Max. Frequency (GHz) | 50 |
| Gain (dBi) | 25 |
| Flange | |
| HPBW 3 dB Beamwidth | |
| Waveguide | |
| Material | |
| Polarization | |
| Impedance (Ω) |
