25 dBi Gain, 68 GHz to 77 GHz, 0.12″ Diameter Circular Waveguide WR-12 Waveguide E Band Conical Horn Antennas

Conical Horn Antennas

25 dBi Gain, 68 GHz to 77 GHz, 0.12″ Diameter Circular Waveguide WR-12 Waveguide E Band Conical Horn Antennas

OCN-12-25

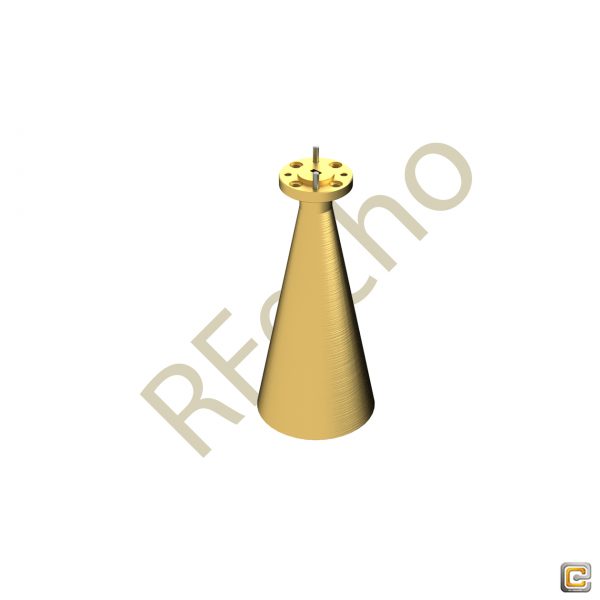

Model OCN-12-25 is a E Band conical horn antenna that operates from 68 GHz to 77 GHz. The antenna offers 25 dB nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane.

The horn also offers typical side lobes of -18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.12 diameter circular waveguide with UG-387/U-M flange.

Property

Value

Min. Frequency (GHz)

68

Max. Frequency (GHz)

77

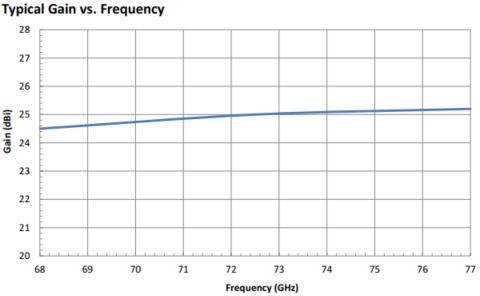

Gain(dBi)

25

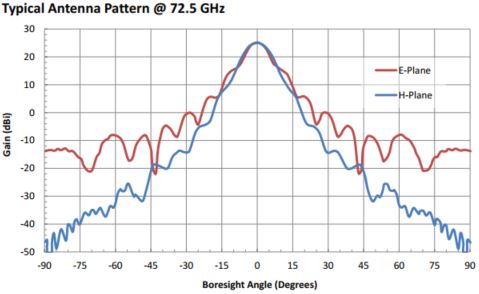

3 dB Beamwidth, E-plane (?)

9

3 dB Beamwidth, H-plane (?)

10

Side Lobes, E-Plane (dB)

-18

Side Lobes, H-Plane (dB)

-28

Return Loss (dB)

NA

Waveguide

WR-12

Band Type

E Band

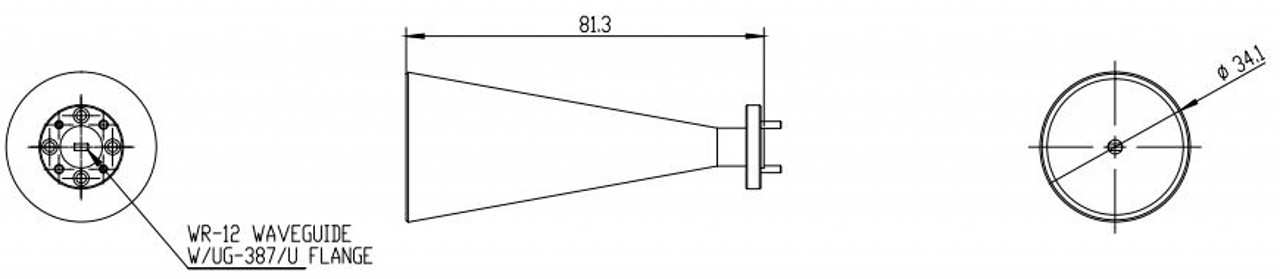

Flange

UG-387/U-M flange

Diameter (Inch)

0.12

VSWR

1.15:1

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear and Circular Polarization

Applications

Antenna Ranges

Feed Horns

System Setups
