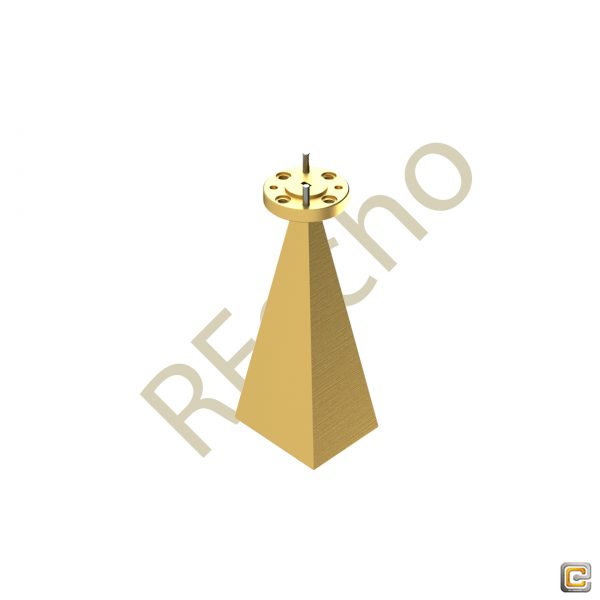

25 dBi Gain, 75 GHz to 110 GHz, WR-10 Waveguide Millimeter SGH Antenna
$729
This model OLB-10-25 is a Millimeter SGH Antenna, operating frequency range is 75 GHz to 110 GHz. Millimeter SGH Antenna offers nominal gain 25dBi and typical half power beam width on the E-plane and H-plane is H 10° / V 10°.
Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-10 waveguide withUG-387/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms.
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
Millimeter SGH Antenna |
|
|
25 dBi Gain, 75 GHz to 110 GHz, WR-10 Waveguide Millimeter SGH Antenna |
|
|
OLB-10-25 |
|
|
This model OLB-10-25 is a Millimeter SGH Antenna, operating frequency range is 75 GHz to 110 GHz. Millimeter SGH Antenna offers nominal gain 25dBi and typical half power beam width on the E-plane and H-plane is H 10° / V 10°. Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-10 waveguide withUG-387/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
75 |
|
Max. Frequency (GHz) |
110 |
|
Gain(dBi) |
25 |
|
HPBW 3 dB Beamwidth |
H 10° / V 10° |
|
Waveguide |
WR-10 |
|
Flange |
UG-387/U-M Flange |
|
Material |
Cu |
|
Polarization |
Linear |
|
Impedance (?) |
50 |
|
Features |
|
|
Inline Configuration |
|
|
Linear Polarization |
|
|
DC Short Circuit at Input |
|
|
Applications |
|
|
Antenna Ranges |
|
|
Antenna Gain Measurements |
|
|
System Setup |
|

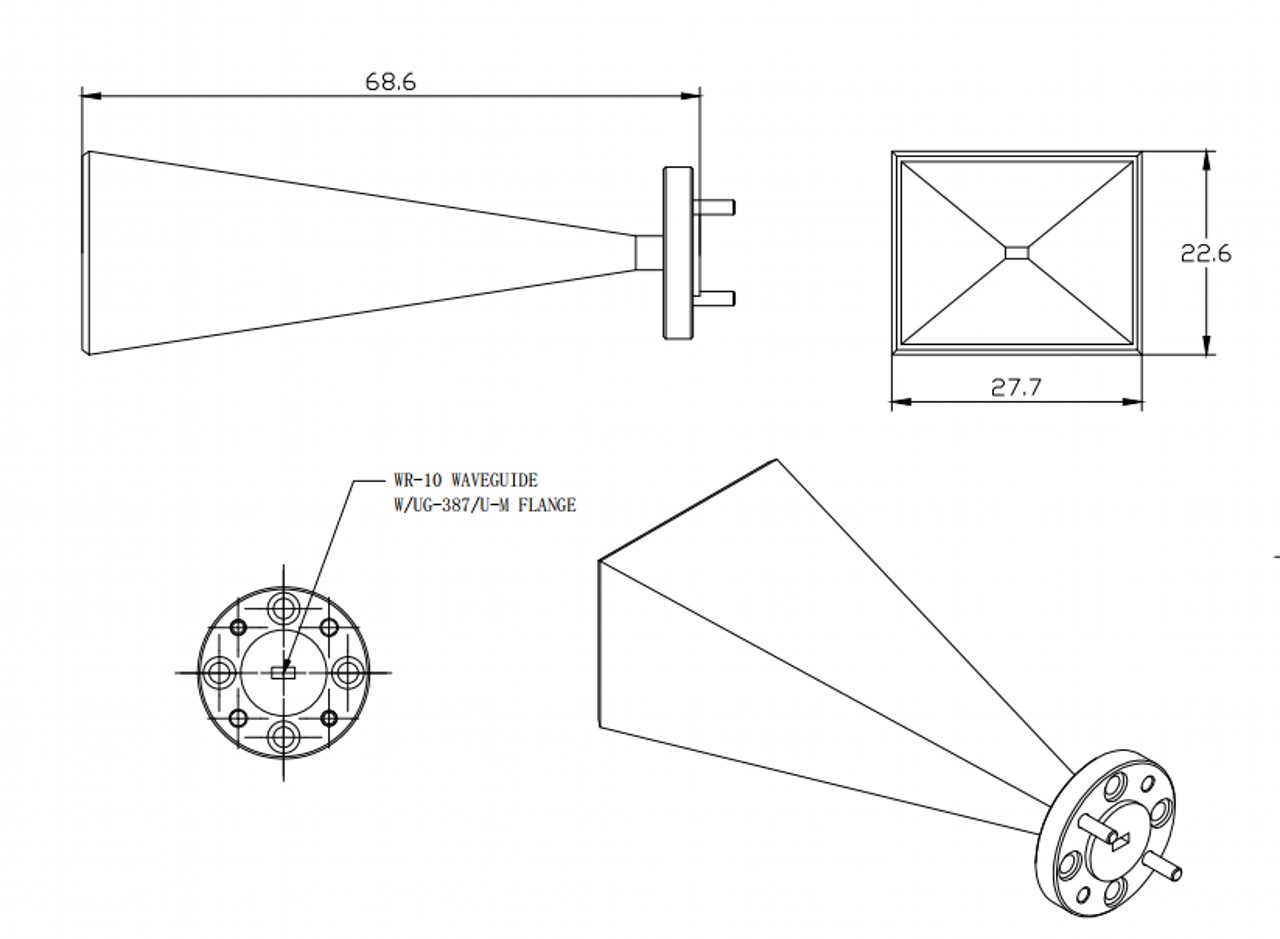

Outline

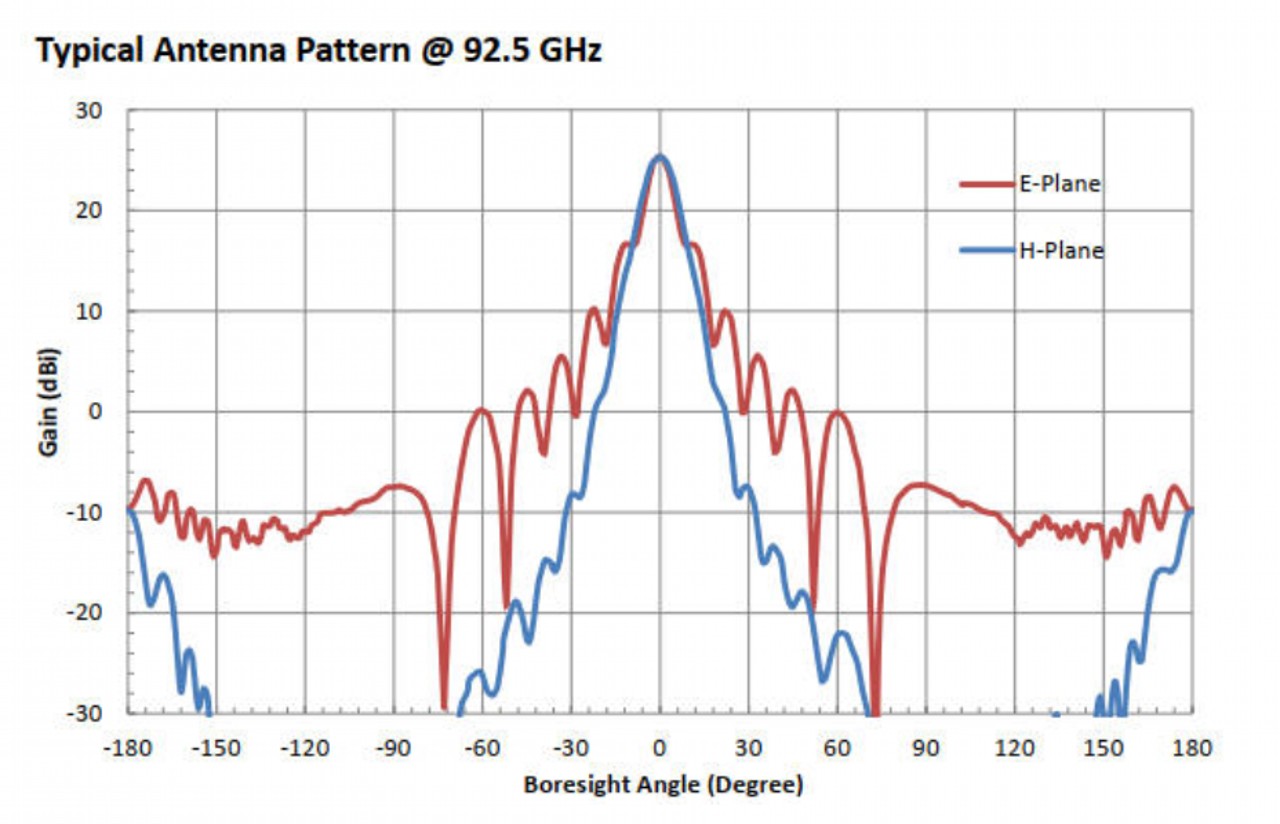

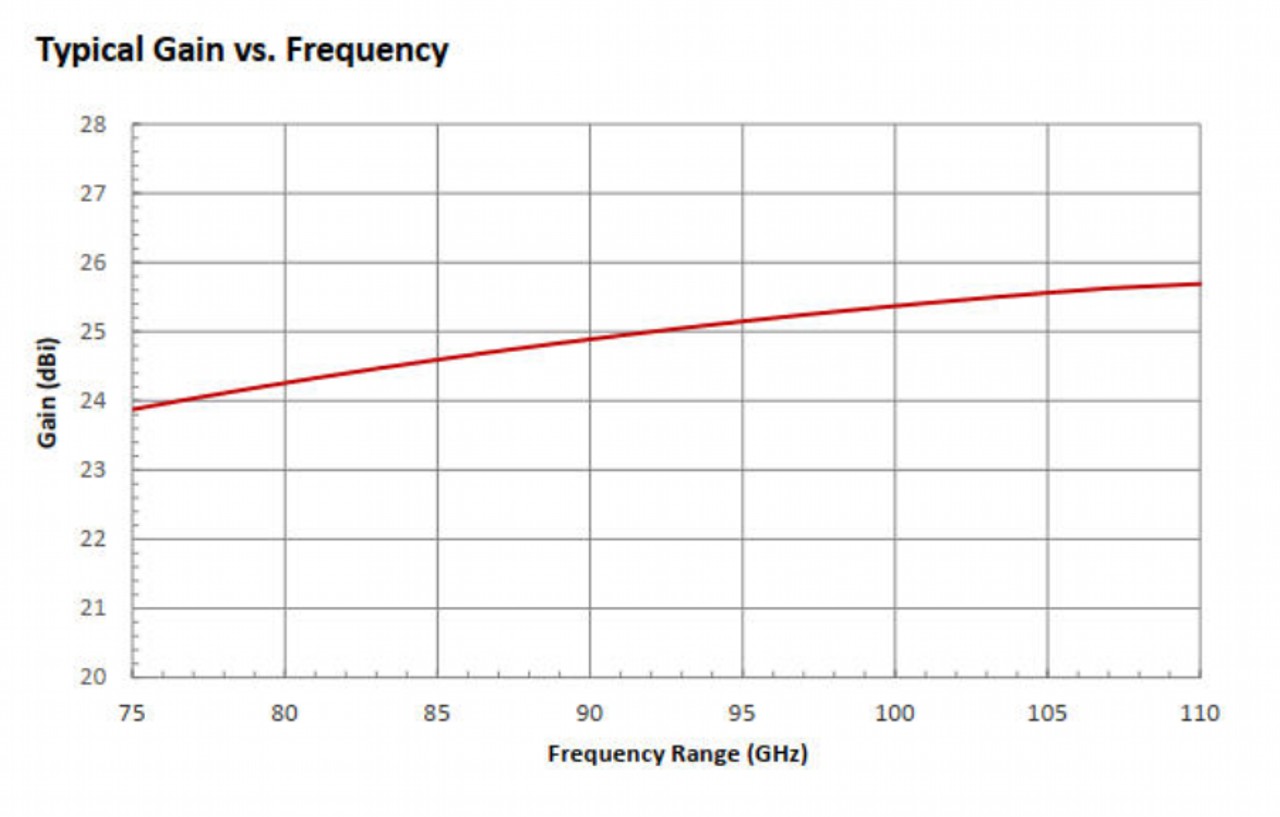

Plot
Additional information
| Min. Frequency (GHz) | 75 |
|---|---|
| Max. Frequency (GHz) | 110 |
| Gain (dBi) | 25 |
| Flange | |
| HPBW 3 dB Beamwidth | |
| Waveguide | |
| Material | |
| Polarization | |
| Impedance (Ω) |
