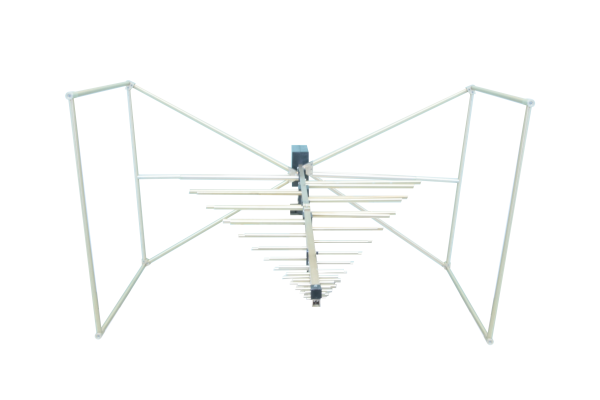

(-16 – 7)dBi Gain, 0.025GHz to 2GHz, Bilogical Antenna OLP-00220-A
$4790
The OCEAN MICROWAVE Bilogical Antenna is one of our latest antennas, providingan inexpensive solution to wide band applications. Whether testing inside a shielded enclosure or outdoors, this antenna will display efficient performance characteristics through the frequency range of 25 MHz to 2000 MHz.
OLP antenna offering a large number of dipole elements with frequency range from 25MHz to 2 GHz including the most common RF sources like GSM,5G, Wifietc..
- Description
- Additional information
Description
SPEC
Bilogical Antenna |
|
(-16 – 7)dBi Gain, 0.025GHz to 2GHz, Bilogical Antenna |
|
OLP-00220-A |
|
The OCEAN MICROWAVE Bilogical Antenna is one of our latest antennas, providingan inexpensive solution to wide band applications. Whether testing inside a shielded enclosure or outdoors, this antenna will display efficient performance characteristics through the frequency range of 25 MHz to 2000 MHz. OLP antenna offering a large number of dipole elements with frequency range from 25MHz to 2 GHz including the most common RF sources like GSM,5G, Wifietc.. Each antenna goes through rigorous testing in our laboratories before dispatch,Allantennas are developed, individually produced and calibrated。 |
|
Property |
Value |
Min. Frequency (GHz) |
0.025 |
Max. Frequency (GHz) |
2 |
Gain(dBi) |
-16 – 7 |
Impedance (?) |
50Ω |
Max Radiated Field |
100 V/m |
Connection Type |
N-Type, female |
Mounting Base |
¼- 20 Thread,female |
Features |
|
HybridLog Periodic – Biconical Antenna |
|
Wide Frequency Range of 25 MHz – 2000 MHz |
|
Receive and Transmit |
|
Individually Calibrated (1, 3 and 10 Meter calibration included, horizontal polarization)Rugged Construction |
|
Can be used in the lab |
|
for open-field application |
|
Suitable for field-strength and EMC measurements due to high precision |
|
Compact and sturdy design |
|
Can be used in the lab and for open-field application |
|
Applications |
|
GSM |
|
Wifietc |
|
DECT?Digital Enhanced Cordless Telecommunications |
|
5G |

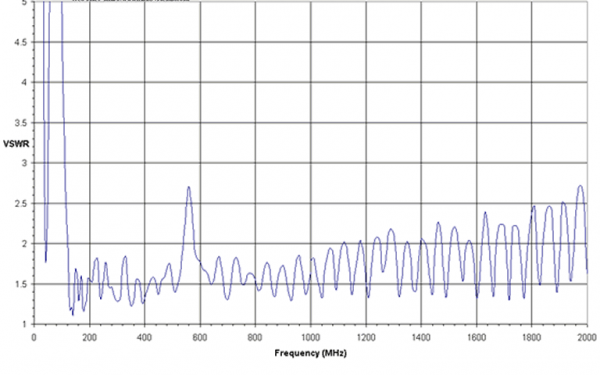

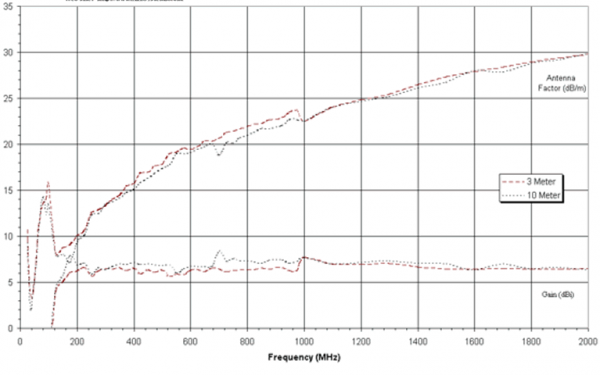

Plot
Outline
Additional information
Weight | 3.45 kg |
---|---|
Dimensions | 151.6 × 144.8 × 56.4 cm |
Min. Frequency (GHz) | 0.025 |
Max. Frequency (GHz) | 2 |
Gain (dBi) | -16 – 7 |
Impedance (Ω) | |
MaximumContinuous Power | 1000 Watts |
Max Radiated Field | 100 V/m |
Connector | |
Mounting Base | ¼- 20 Thread,female |
