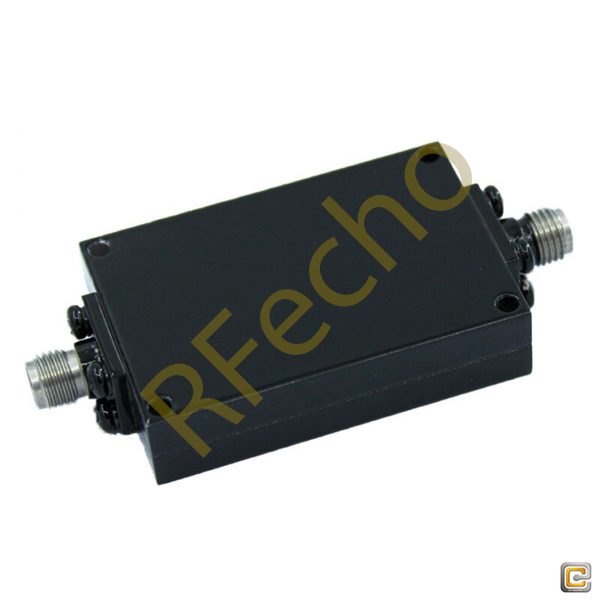

Microwave Passive High pass Filter 3.25GHz to 18GHz RF Microwave High pass Filter rejection ≥ 60dB @ DC～2.83GHz with SMA Female Connector

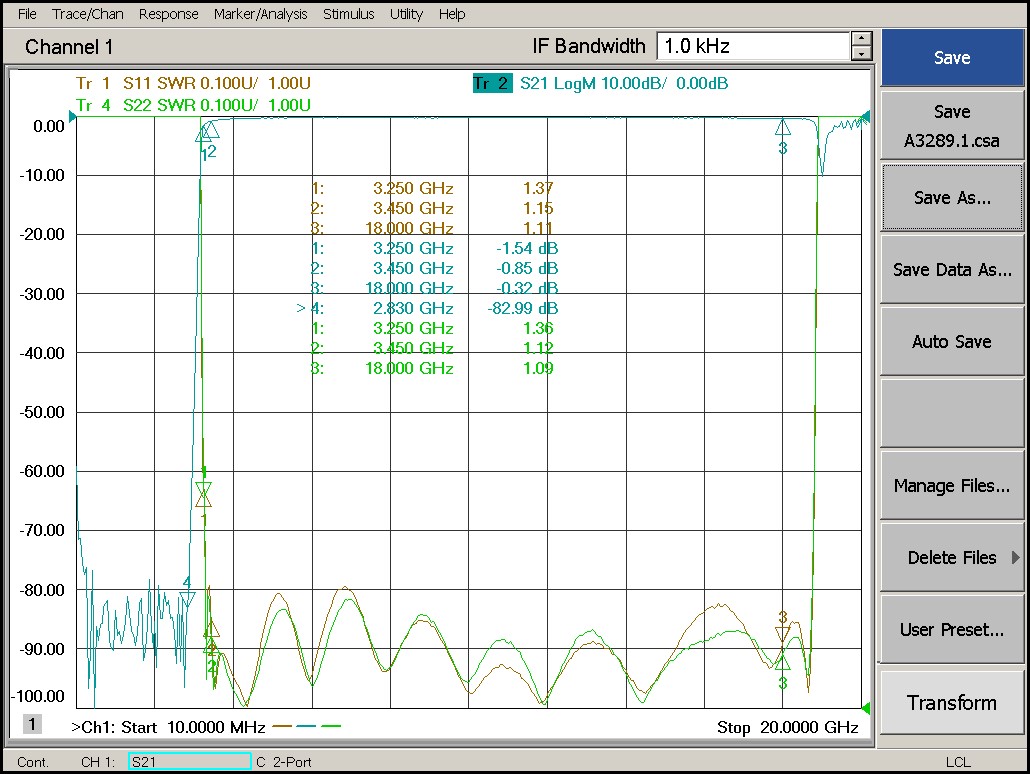

Microwave Passive High Pass Filter model OHP: 3250-18000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This Microwave Passive High Pass Filter Manufactured with a passband frequency from 3.25GHz to 18GHz and a Cut-off frequency 3.25GHz. Our RF Microwave High Pass Filter provides a nominal insertion loss of ≤2.0dB @ 3.25GHz – 3.45GHz | ≤1.0dB @ 3.45GHz – 18GHz its passband and a typical rejection of ≥60dB @ DC – 2.83GHz. Since the high end cutoff frequency of Microwave Passive High Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Microwave High Pass Filter has Passband VSWR of ≤1.5:1 and power handling of ≤15W. Microwave Passive High Pass Filter is manufactured with SMA Female Connector and Impedance of 50ohms.
3.25GHz to 18GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 3.25GHz to 18GHz Microwave Passive High Pass Filter is ready for shipping worldwide after purchase. Additional specs of this RF Microwave High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.
