30 MHz to 200 MHz, N Female, EMC Biconical Antenna-RFecho
$2990
Frequency: 30MHz-200MHz
VSWR: 2.0:1
Power Handling:3000W
Connection Type:N Female
Balun Type Transform Ratio: 4:1
Low Return Loss
OBC-032-3KW-4 Biconical Antenna is suitable for testing low-frequency communication systems such as two-way radios, tactical radios, and other VHF-based devices
- Description
- Datasheet
- Outline
- Reviews (0)
Description

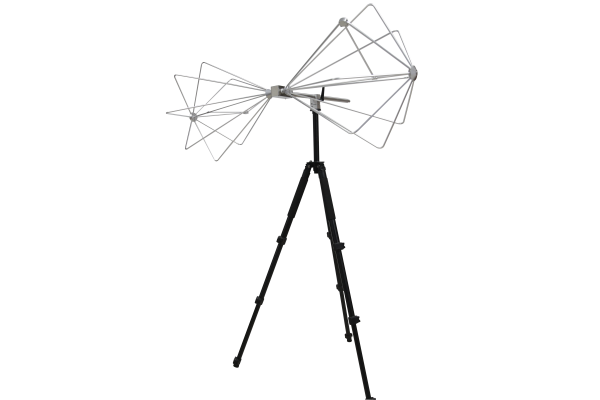

The OBC-032-3KW-4 is a vertically polarized omnidirectional antenna with a frequency range of 30 MHz to 200 MHz, known for its improved pattern stability. This model is constructed from durable aluminum alloy and is powder-coated to enhance its corrosion resistance, ensuring longevity and robust performance. Its broadband design allows for efficient scanning measurements and automatic measurement systems. This design significantly reduces measurement time, a critical factor for swept broadband operations. Additionally, the antenna features low return loss and linear gain with frequency, ensuring stable and consistent performance.
The OBC-032-3KW-4 is commonly used in various applications. First of all, this model is critical for low-frequency EMC testing, focusing on older communication systems, broadcasting equipment, and low-frequency industrial electronics that operate in VHF. These antennas also play a vital role in testing VHF radio broadcasting systems like FM radio and VHF TV channels, ensuring they meet the necessary signal strength and emissions standards. In the military communication sector, the antenna is essential for testing low-frequency communication systems such as two-way radios, tactical radios, and other VHF-based devices, particularly for ground forces and short-range communication needs. Lastly, The OBC-032-3KW-4 supports narrower bandwidth testing, making it ideal for specific applications that demand detailed analysis at discrete frequencies, in contrast to broader bands like 30 MHz to 200 MHz.https://www.rfecho.com/product-category/rf-antenna/biconical-antenna/
Antenna Specifications |
|
30 MHz to 200 MHz, N Female |
|
OBC-032-3KW-4 |
|
Property |
Value |
Min. Frequency (MHz) |
30 |
Max. Frequency (MHz) |
200 |
Impedance (Ω) |
50 |
Power Handling (W) |
3000 |
Balun Type Transform Ratio |
4:1 |
Connection Type |
N Female |
Features |
|
Low Return Loss |
|
Linear gain with frequency |
|
EMC and EMI testing |
|
Radio Link Testing |
|
Applications |
|
Broadband RX-Antenna for Emission Testing |
|
TX-Antenna for Immunity testing |
|
Specially designed at low frequencies |
