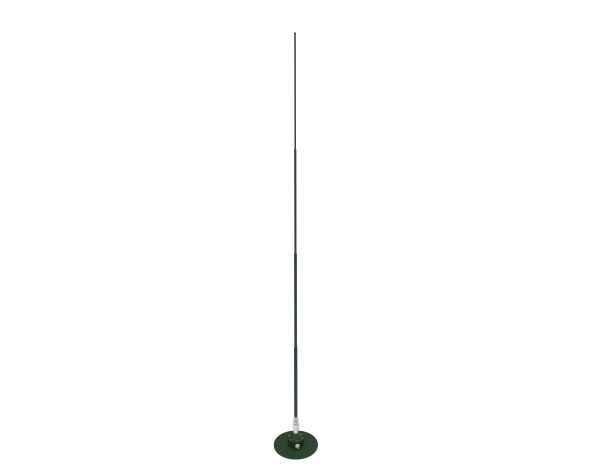

30MHz to 600MHz, N Female, Dipole Antenna-OPO-00306-100W
$1790
Frequency Range: (30-600)MHz
Max. VSWR: 3.5:1
Power Handling: 100W
Pattern Type: Omnidirectional
Connector Type: N
OPO-00306-100W dipole antenna is Designed for harsh environment with extremely wide range frequency, High efficiency and radiation characteristics.
- Description
- Datasheet

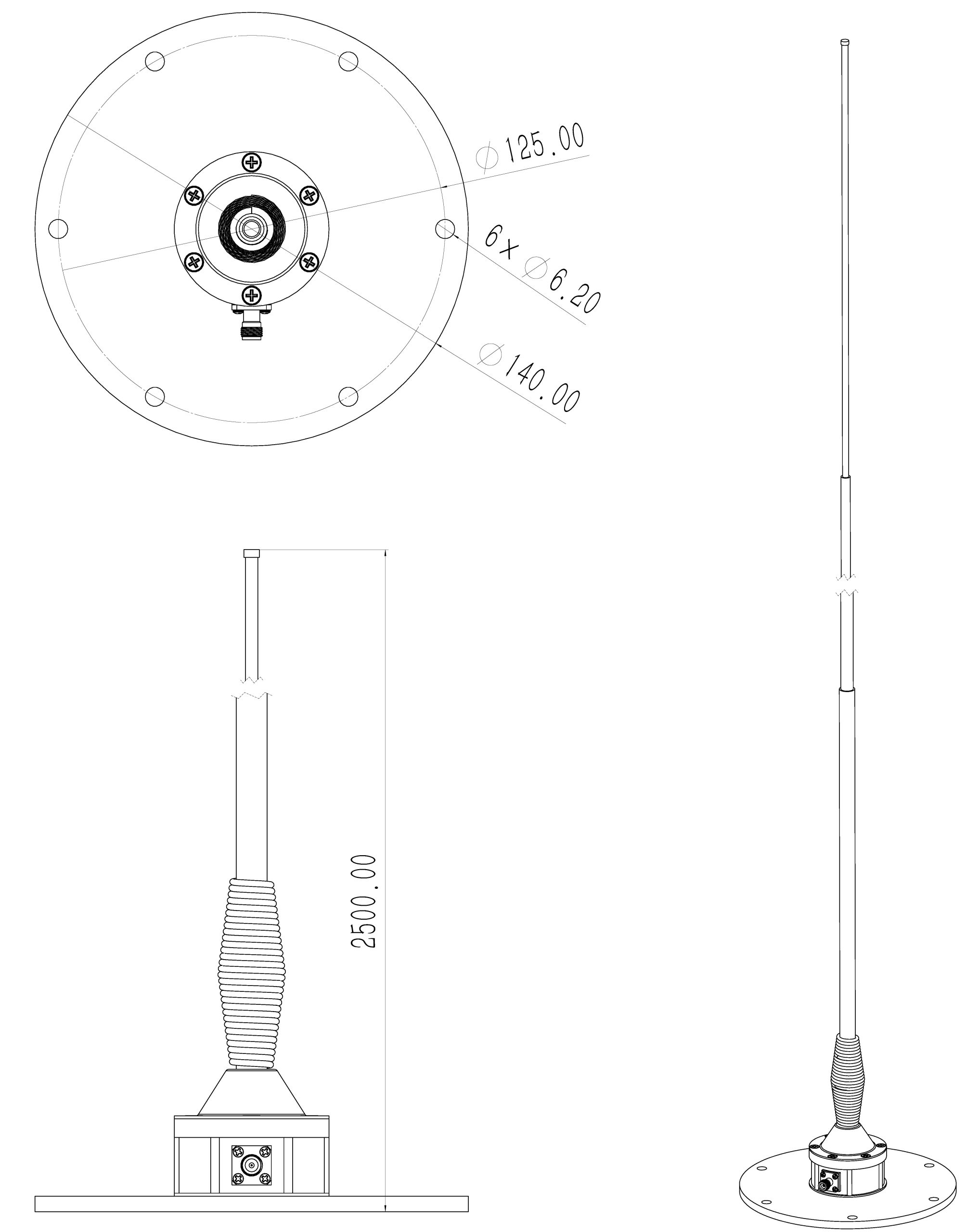

- Outline

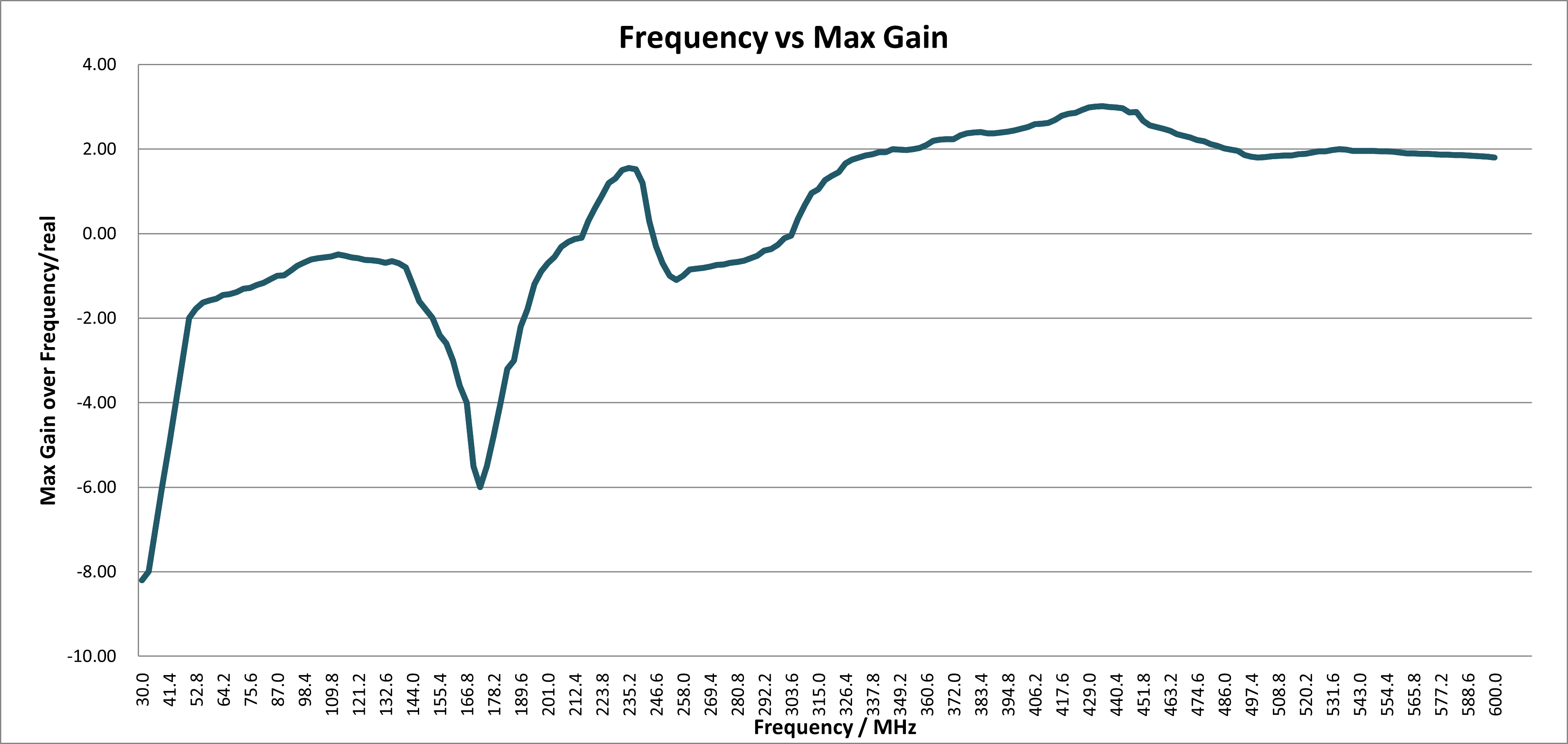

- Plot
Description
This high-performance pole antenna is compact in size and structure, making it extremely convenient to install in vehicles, on rooftops, or on towers. It can easily adapt to various installation environments. It can operate stably and reliably under harsh conditions such as strong winds, high salt fog, and high humidity, demonstrating excellent environmental tolerance. Its small size, light weight, and wide operating frequency band allow it to work without tuning within the 30MHz – 600MHz range and handle an average radiated power of over 100W, ensuring stable signal transmission. The spring-based base design enables it to bend and return to its original position when subjected to physical pressure or impact, maintaining stable performance in harsh environments where rigid antennas are prone to failure. Moreover, it is adjustable in length, allowing users to adjust it according to different frequency ranges for optimal signal transmission and reception.
Dipole Antenna |
|
|
30MHz-600MHz with N Female connector |
|
|
OPO-00306-100W |
|
Property |
Value |
|
Min. Frequency (MHz) |
30 |
|
Max. Frequency (MHz) |
600 |
|
Max. VSWR |
3.5:1 |
|
Power Handling(W) |
100 |
|
Polarization |
Linear |
|
Impedance (Ω) |
50 |
|
Connector |
N Type |
|
Length(mm) |
2500±10 |
Features |
|
|
Small in size |
|
|
Reliable under harsh conditions |
|
|
Light Weight |
|
|
Convenient for Vehicle, rooftop, tower mounting |
|
|
Compact in structure |
|
Applications |
|
|
Wide Ranges |
|
|
Countermeasure antennas in electronic warfare |
|
|
Ground and Motor Vehicles |
|
