4 to 40GHz 2WAY OPD-0440-2-S With SMA Female Connectors

26.4 GHz to 40.1 GHz, 0.3 dB Insertion Loss, 20 dB Isolation, WR28 High Power Series Isolator-BH320-25.4B1
4 to 26.5 GHz 2WAY OPD-4265-2-S With SMA Female Connectors
0 out of 5
( There are no reviews yet. )

SKU: OPD-0440-2-S Categories: 2 Way RF Power Divider, RF Power Dividers, Routing
Add To Quote List

Description

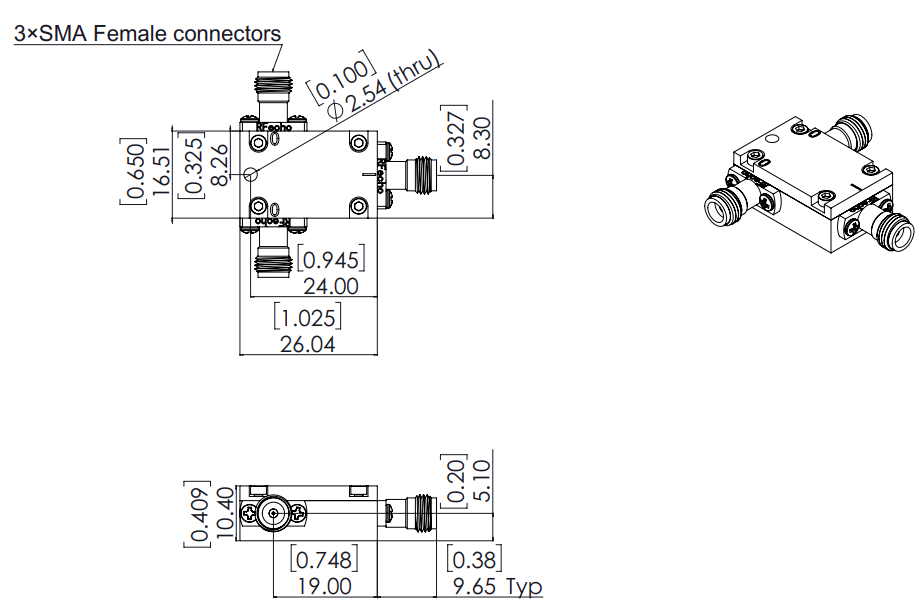

Outline

PDF

Band Pass Filter Datasheet (Click to download)

Additional information

Min. Frequency (GHz)

4
Max. Frequency (GHz)

40
Insertion Loss (dB), Max.

2
Isolation (dB) Min

13
Amplitude Balance (dB) Max

±0.75
Phase Balance (°) Max

±12
Input Power (W) Max

10
