5GHz to 24GHz Passive Microwave High Pass Filter rejection ≥ 50dB @ DC～4.0GHz High Pass Microwave RF Filter with SMA Female Connector

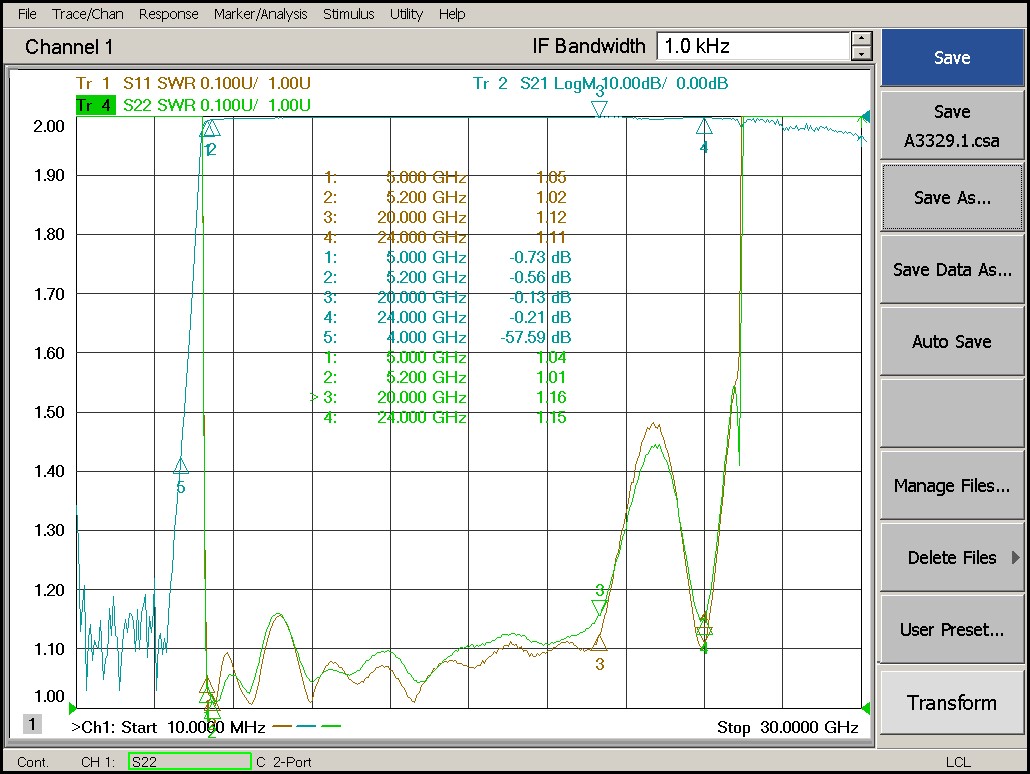

5GHz to 24GHz Passive Microwave High Pass Filter model OHP: 5000-24000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This 5GHz to 24GHz Passive Microwave High Pass Filter Manufactured with a passband frequency from 5GHz to 24GHz and a Cut-off frequency 5GHz. Our High Pass Microwave RF Filter provides a nominal insertion loss of ≤1.5dB @ 5GHz to 5.2GHz | ≤1.0dB @ 5.2GHz to 24GHz across its passband and a typical rejection of ≥50dB @ DC to 4.0GHz. Since the high end cutoff frequency of 5GHz to 24GHz Passive Microwave High Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This High Pass Microwave RF Filter has Passband VSWR of ≤1.5:1 @ 5GHz to 20GHz ≤1.8:1 @ 20GHz to 24GHz and power handling of ≤15W. 5GHz to 24GHz Passive Microwave High Pass Filter is manufactured with SMA Female Connector and Net weight of 0.015Kg. 5GHz to 24GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 5GHz to 24GHz Passive Microwave High Pass Filter is ready for shipping worldwide after purchase. Additional specs of this High Pass Microwave RF Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.
