5 dBi Gain, 0.68 GHz to 25 GHz, Directional Antenna (f 680 MHz)
Model OLP-680M-250 is a directional antenna that offers the frequency range from 0.68 GHz to 25 GHz. This model operate with the gain of 5 dBi, where the connection type is SMA (F) or N. Every antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality rubber paint which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and a SMA connector. Directional EC Test-Antenna based on a gold-coated high tech Teflon material to reach higher frequencies.
This antenna also covers the lower Tetra/BOS band. All antennas include a complete high resolution (10 MHz steps!) calibration data set with up to 533 calibration points (on CD). This offers the ability to make a very accurate EC measurement with any Spectrum Analyzer. All antennas are developed, individually produced and calibrated. This guarantees highest standard so that we can offer every customer a full 10 years warranty for all EMC antennas.
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
Directional Antenna (f 680 MHz) |
|
|
5 dBi Gain, 0.68 GHz to 25 GHz, Directional Antenna (f 680 MHz) |
|
|
OLP-680M-250 |
|
|
Model OLP-680M-250 is a directional antenna that offers the frequency range from 0.68 GHz to 25 GHz. This model operate with the gain of 5 dBi, where the connection type is SMA (F) or N. Every antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality rubber paint which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and a SMA connector. Directional EC Test-Antenna based on a gold-coated high tech Teflon material to reach higher frequencies. This antenna also covers the lower Tetra/BOS band. All antennas include a complete high resolution (10 MHz steps!) calibration data set with up to 533 calibration points (on CD). This offers the ability to make a very accurate EC measurement with any Spectrum Analyzer. All antennas are developed, individually produced and calibrated. This guarantees highest standard so that we can offer every customer a full 10 years warranty for all EMC antennas. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
0.68 |
|
Max. Frequency (GHz) |
25 |
|
Gain(dBi) |
5 |
|
Impedance (?) |
50 |
|
VSWR (Typ.) |
1:2,5 |
|
Connection Type |
SMA (F) or N |
|
Tripod Connection (in.) |
1/4 |
|
Features |
|
|
Includes exhaustive calibration data (on CD) |
|
|
Special designed radome for perfect antenna protection |
|
|
Gold coating for stable performance |
|
|
Wide bandwidth |
|
|
Coverage of various mobile radio frequency ranges |
|
|
Gold coatingfor stable performance? Wide bandwidth |
|
|
Suitable for field-strength and EMC measurements due to high precision |
|
|
Compact and sturdy design |
|
|
Can be used in the lab and for open-field application |
|
|
Applications |
|
|
ISM434, LTE800, ISM868, GSM900, GSM1800, GSM1900 |
|
|
UMTS?Universal Mobile Telecommunications System? |
|
|
DECT?Digital Enhanced Cordless Telecommunications? |
|
|
Bluetooth? WiFi?WLAN?Microwave, LTE2.6, WiMAX, 5GHz WLAN |
|
Outline

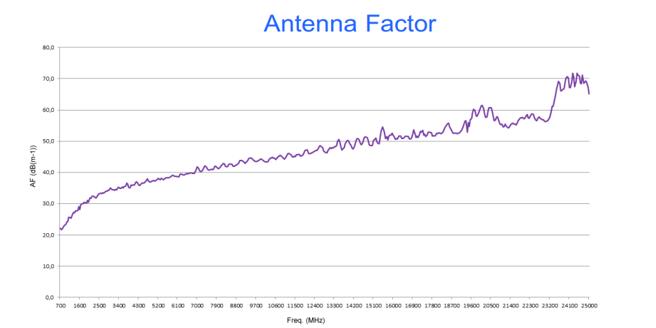

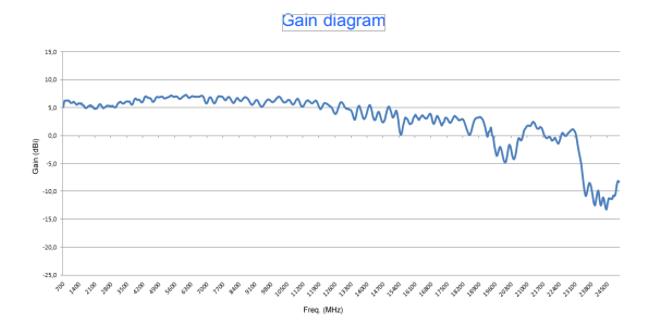

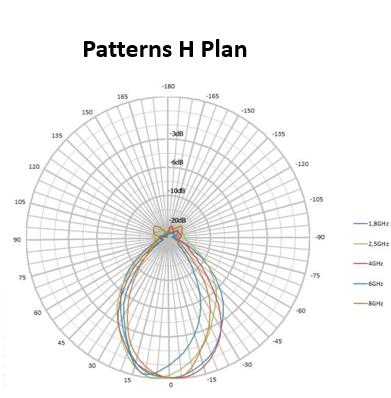

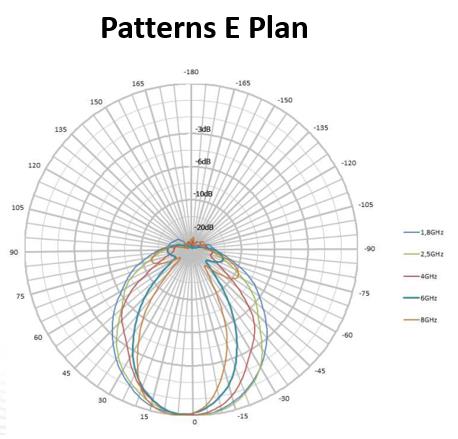

Plot
Additional information
| Min. Frequency (GHz) | 0.68 |
|---|---|
| Max. Frequency (GHz) | 25 |
| Gain (dBi) | 5 |
| VSWR (Typ.) | |
| Connection Type | |
| Impedance (Ω) | |
| Net Weight (Kg) |
