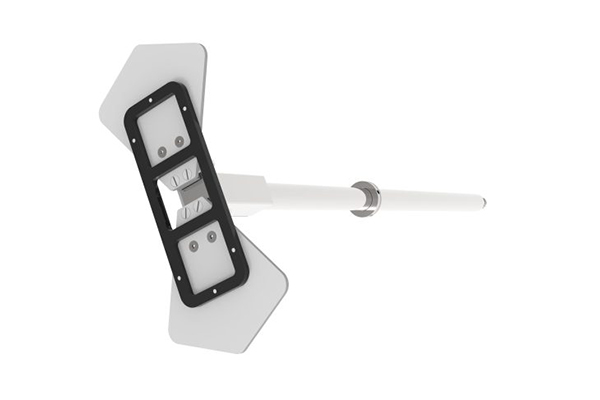

500 MHz to 3000 MHz, N Female, OBC-530-20W-1 EMC Biconical Antenna

Description

Biconical antenna is a vertically polarized omnidirectional antenna. Its frequency range is 500 MHz to 3000 MHz. Its pattern stability is better. Biconical antenna model OBC-530-20W-1 is used for transmission and immunity test to meet various EMC standards. Its broadband characteristics make it an ideal choice for a wide range of EMI testing applications, including demonstrating compliance with FCC, CE, MIL-STD, RTCADO-160, and other requirements.

OBC-530-20W-1 biconical EMC broadband antenna has a durable aluminum alloy, and we powder coated them to improve corrosion resistance.OBC-530-20W-1 model is used for radiation and immunity testing to meet various EMC standards. The broadband characteristic of the biconical antenna makes it an ideal choice for scanning measurement and automatic measurement systems. Biconical antennas can be used for many applications, in which half-wave dipoles have been used traditionally. An enormous reduction of measurement time can be achieved because the time-consuming tuning of the antenna elements to the half-wavelength is not needed, an important condition for swept broadband.

SPEC

EMC Biconical Antenna
500 MHz to 3000 MHz, N Female
OBC-530-20W-1
Property	Value
Min. Frequency (MHz)	500
Max. Frequency (MHz)	3000
Impedance (?)	50
Power Handling (W)	20
Balun Type Transform Ratio	NA
Connection Type	N Female
Features
Low Return Loss
Linear gain with frequency
EMC and EMI testing
Radio Link Testing
Applications
Broadband RX-Antenna for Emission Testing
TX-Antenna for Immunity testing
Specially designed at low frequencies
