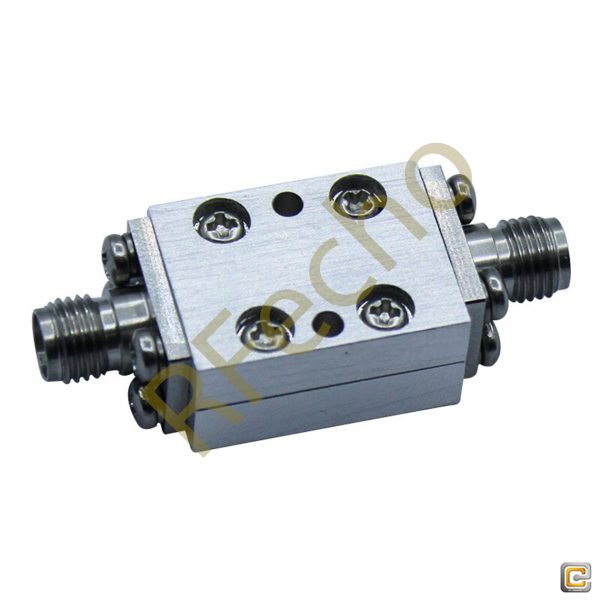

RF High pass Cavity Filter 7.5GHz to 27GHz High pass Microwave Filter rejection ≥ 50dB DC～6.25GHz with SMA Female Connector

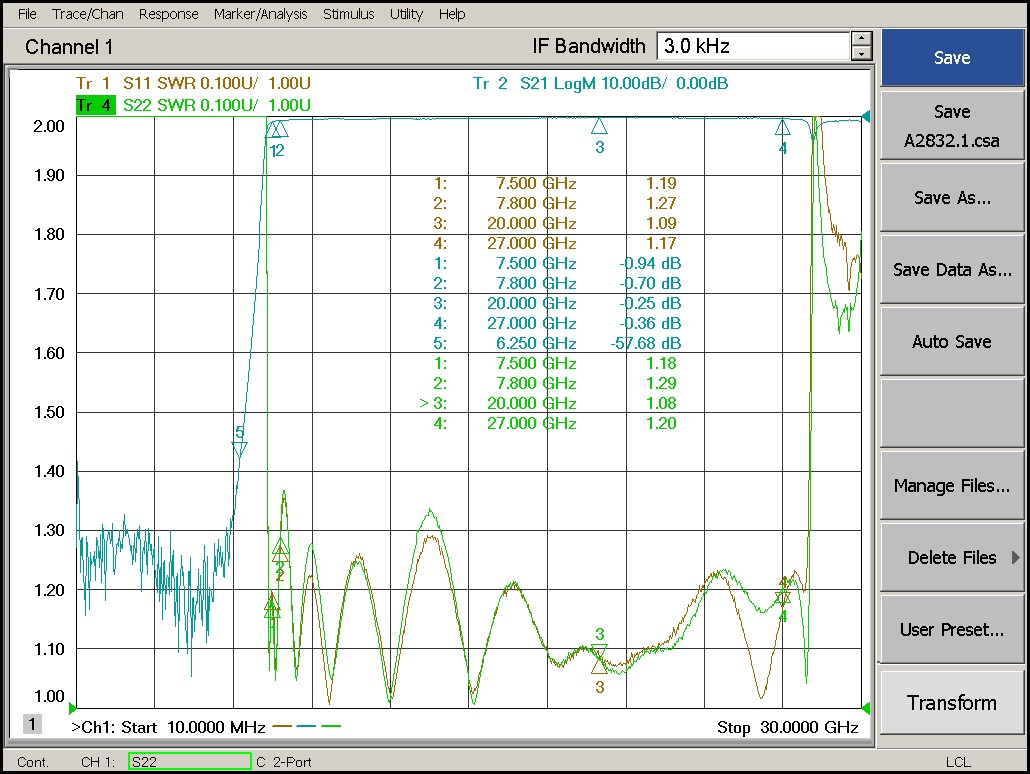

RF High Pass Cavity Filter model OHP: 7500-27000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This RF High Pass Cavity Filter Manufactured with a passband frequency from 7.5GHz to 27GHz and a Cut-off frequency 7.5GHz. Our High Pass Microwave Filter provides a nominal insertion loss of 1.5dB across its passband and a typical rejection of ≥50dB @DC- 6.25GHz. Since the high end cutoff frequency of RF High Pass Cavity Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This High Pass Microwave Filter has Passband VSWR of ≤1.5:1 @ 7.5GHz – 20GHz | 1.8:1 @ 20GHz – 27GHz and power handling of ≤15W. RF High Pass Cavity Filter is manufactured with SMA Female Connector and Net weight of 0.15Kg.
7.5GHz to 27GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 7.5GHz to 27GHz RF High Pass Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this High Pass Microwave Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.
