8.25 dBi Gain, 2 GHz to 20 GHz Broadband Dual Ridged Horn Antenna OBH-20200
Original price was: $1881.$1599Current price is: $1599.
Product Introduction

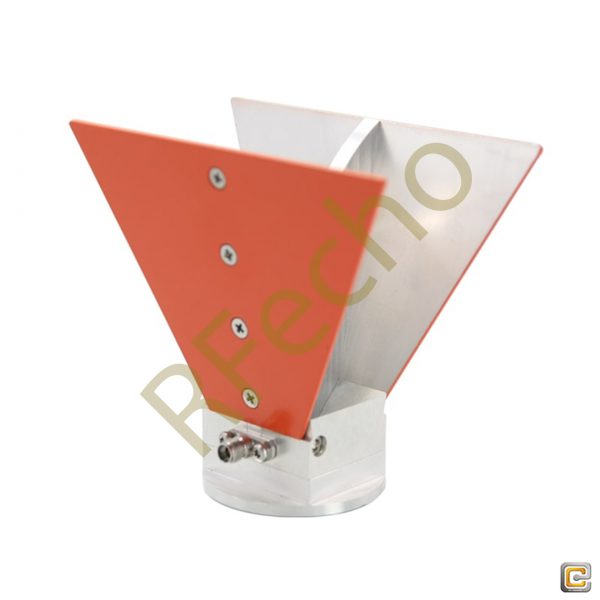

The OBH-20200 Dua-Ridged Horn Antenna is a state-of-the-art broadband antenna meticulously designed to operate within the frequency range of 2GHz to20GHz, encompassing both the C and Ku bands. This antenna stands out with its broadband capabilities, boasting a bandwidth that’s 50% wider than its counterparts, ensuring a broader application spectrum. Despite its robust features, the antenna is exceptionally lightweight, weighing in at just 136g.making it ideal for mobile and on-site applications. lt comes equipped with a convenient carrying box, ensuring easy portability and testing. Throughout its entire operational bandwidth, the OBH-20200 maintains a VSWR of less than2.0, guaranteeing optimal power transmission and minimal reflection. It features a 3.5mm interface and is capable of handling power levels exceeding 200W. Additionally, we offer comprehensive and accurate test data, including antenna factors, Gain, VSWR, and direction patterns. Users also have the flexibility to input antenna factors into their systems for precise testing.
- Description
- Additional information
- Reviews (0)
Description
The OBH-20200 Dual-Ridged Horn Antenna is a cutting-edge broadband antenna designed for operation within a frequency range of 2GHz to 20GHz, effectively covering both the C and Ku bands. Its standout feature is its broadband capability, with a bandwidth that is 50% wider than similar antennas, allowing for a greater range of applications. Especially, this antenna is exceptionally lightweight, weighing only 136g. To enhance portability, it comes with a convenient carrying box, facilitating easy transportation and testing. Throughout its operational bandwidth, the OBH-20200 maintains a VSWR of less than 2.0, ensuring optimal power transmission and minimal signal reflection. The antenna features a 3.5mm interface and can handle power levels exceeding 200W.
Additionally, users receive comprehensive and accurate test data, including antenna factors, gain, VSWR, and radiation patterns. This data allows for precise integration into testing systems, providing flexibility and accuracy in various applications. Overall, the OBH-20200 combines advanced performance with user-friendly features, making it an invaluable tool for professionals in telecommunications and related fields.
With these benefits, the OBH-20200 is designed with various demanding applications. Firstly, it offers expanded communication capabilities by covering an additional 2GHz, making it ideal for higher-frequency applications and broader wireless communication systems. This antenna also supports higher bandwidth and data rates, essential for next-generation communication technologies. Additionally, the OBH-20200 excels in high-resolution radar applications, providing improved radar systems for advanced surveillance and target tracking in both military and civil contexts. Its capabilities extend to ground mapping and imaging, making it suitable for use in synthetic aperture radar (SAR) systems that require detailed imaging. Furthermore, the antenna enhances versatility in electronic warfare (EW) applications, enabling effective jamming and signal interception across a broader spectrum of frequencies, ensuring robust performance in diverse operational scenarios .Dual-Ridged Horn Antenna：https://www.rfecho.com/product-category/rf-antenna/broadband-dual-ridged-horn-antenna/
SPEC
Broadband Horn Antenna |
|
|
8.25 dBi Gain, 2 GHz to 20 GHz |
|
|
OBH-20200 |
|
Property |
Value |
|
Min. Frequency (GHz) |
2 |
|
Max. Frequency (GHz) |
20 |
|
Gain(dBi) |
8.25 |
|
VSWR (Max.) |
2 |
|
Polarization |
Single Linear |
|
Cross Polar Isolation (dB) |
50 |
|
Impedance (?) |
50 |
Features |
|
|
Linear polarized with high polarization purity |
|
|
Frequency from 2.0 GHz to 20 GHz |
|
|
Low return loss / VSWR |
|
|
Wide bandwidth |
|
|
Uniform Gain |
|
|
High Power Handling Capability |
|
|
Radiation pattern contains only one main lobe over the entire frequency range |
|
|
Each antenna is calibrated individually in line with ANSI C63.5-2006 |
|

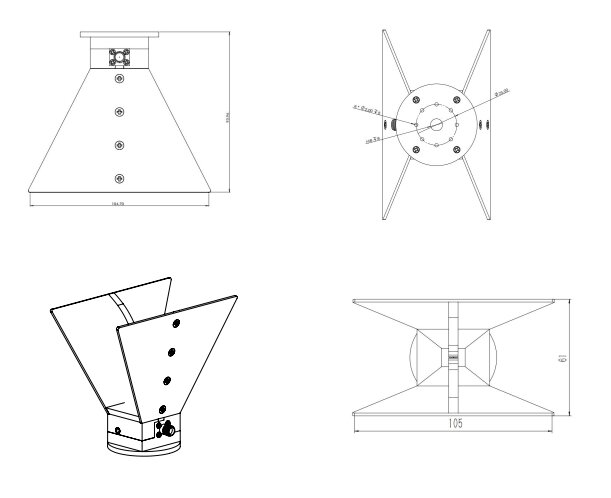

Outline
Additional information
| Min. Frequency (GHz) | 2 |
|---|---|
| Max. Frequency (GHz) | 20 |
| Gain (dBi) | 8.25 |
| Polarization | |
| Impedance (Ω) |
