8.25 dBi Gain, 2 GHz to 20 GHz Broadband Dual Ridged Horn Antenna OBH-20200-C

HOT
-15%

8.25 dBi Gain, 2 GHz to 20 GHz Broadband Dual Ridged Horn Antenna OBH-20200-C

$1175

Product Introduction

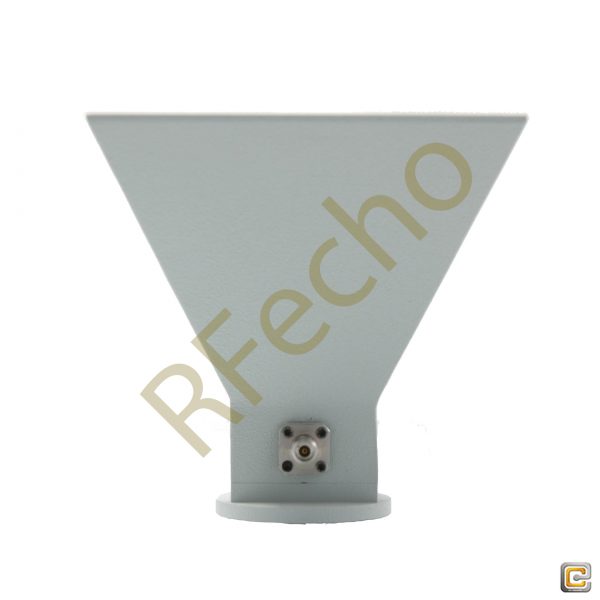

The OBH-20200-C Dual-Ridged Horn Antenna, a cutting-edge product from our lineup, is meticulously crafted to operate seamlessly within the frequency range of 2GHz to 20GHz, bridging the gap between the Ku and C bands. This antenna is a testament to engineering excellence, offering a bandwidth that’s50% wider than similar antennas in its category. This ensures it caters to a broader spectrum of applications, delivering consistent performance across its entire operational range. Despite its powerful capabilities, the OBH-20200-C is designed with mobility in mind, weighing a mere 136g. It is complemented by a convenient carrying box, facilitating effortless portability and on-the-go testing. Throughout its operational bandwidth, the antenna maintains a VSWR of less than 2.0, ensuring optimal power transmission and minimal signal reflection. It’s not just about hardware; we back our product with comprehensive and precise test data, encompassing VSWR, antenna factors, Gain, and direction patterns. For those seeking precision in their setups, the antenna factors can be easily integrated into their systems for accurate testing.

Description

The OBH-20200-C Dual-Ridged Horn Antenna represents the pinnacle of engineering in broadband antennas, designed to operate seamlessly across a frequency range of 2GHz to 20GHz, effectively bridging the Ku and C bands. This antenna boasts a bandwidth that is 50% wider than comparable models, ensuring it meets a diverse array of application needs while delivering consistent performance throughout its operational range. Weighing only 136g, the OBH-20200-C is crafted with mobility in mind, making it ideal for on-the-go testing and deployment. It comes with a convenient carrying box, enhancing portability for users. Throughout its entire bandwidth, the antenna maintains a VSWR of less than 2.0, which guarantees optimal power transmission and minimizes signal reflection, ensuring reliable communication. In addition to its impressive hardware, the OBH-20200-C is backed by comprehensive and precise test data, including VSWR, antenna factors, gain, and radiation patterns. This data allows for easy integration into existing systems, providing users with the precision needed for accurate testing. Overall, the OBH-20200-C Dual-Ridged Horn Antenna combines advanced capabilities with user-friendly features.

With these benefits, the OBH-20200-C is designed with various demanding applications. Firstly, it offers expanded communication capabilities by covering an additional 2GHz, making it ideal for higher-frequency applications and broader wireless communication systems. This antenna also supports higher bandwidth and data rates, essential for next-generation communication technologies. Additionally, the OBH-20200-C excels in high-resolution radar applications, providing improved radar systems for advanced surveillance and target tracking in both military and civil contexts. Its capabilities extend to ground mapping and imaging, making it suitable for use in synthetic aperture radar (SAR) systems that require detailed imaging. Furthermore, the antenna enhances versatility in electronic warfare (EW) applications, enabling effective jamming and signal interception across a broader spectrum of frequencies, ensuring robust performance in diverse operational scenarios.https://www.rfecho.com/product-category/rf-antenna/broadband-dual-ridged-horn-antenna/



SPEC

Broadband Horn Antenna Specifications

8.25 dBi Gain, 2 GHz to 20 GHz

OBH-20200-C

Property

Value

Min. Frequency (GHz)

2

Max. Frequency (GHz)

20

Gain(dBi)

8.25

VSWR (Max.)

2

Polarization

Single Linear

Cross Polar Isolation (dB)

50

Impedance (?)

50

Features

Linear polarized with high polarization purity

Frequency from 2 GHz to 20 GHz

Low return loss / VSWR

Wide bandwidth

Uniform Gain

High Power Handling Capability

Radiation pattern contains only one main lobe over the entire frequency range

Each antenna is calibrated individually in line with ANSI C63.5-2006

PDF

Outline

Additional information

Min. Frequency (GHz)

2

Max. Frequency (GHz)

20

Gain (dBi)

8.25

Polarization

Single Linear

Impedance (Ω)

50
