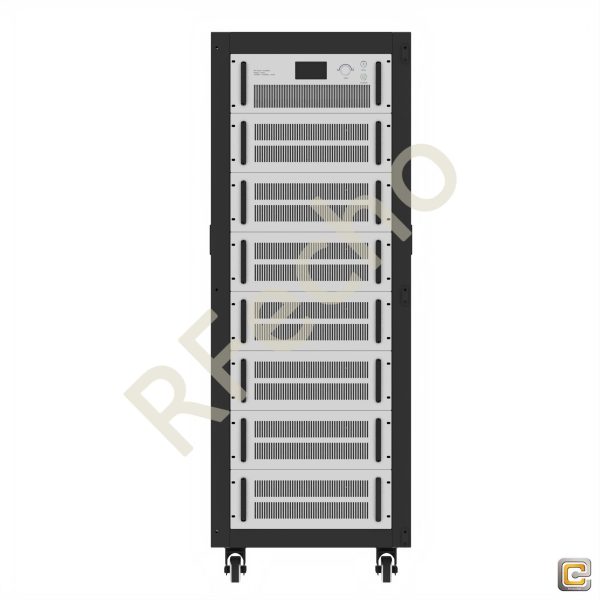

80MHz-1000MHz 3000W RF Power Amplifier
The 80MHz-1000MHz 3000W product is the core product of our company. It adopts all-solid continuous wave scheme, redundancy and high reliability circuit design scheme, and has perfect self-protection ability. Operating frequency coverage: 80MHz-1000MHz, minimum saturation output power: 3000W, support for local/remote work
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
EMC POWER AMPLIFIER |
|
|
80MHz-1000MHz 3000W RF Power Amplifier |
|
|
OPA8100-3000W |
|
|
The 80MHz-1000MHz 3000W product is the core product of our company. It adopts all-solid continuous wave scheme, redundancy and high reliability circuit design scheme, and has perfect self-protection ability. Operating frequency coverage: 80MHz-1000MHz, minimum saturation output power: 3000W, support for local/remote work |
|
|
Property |
Value |
|
Min Frequency |
80MHz |
|
Max. Frequency |
1000MHz |
|
Gain (dBi) |
65 |
|
VSWR |
2 |
|
Output Power(W) |
3000 |
|
Flatness (dB) |
±3 |
|
Voltage (V) |
380 |
|
Power Dissipation (W) |
18000 |
|
Features |
|
|
Reasonable design and high heat dissipation efficiency |
|
|
High reliability of built-in control, monitoring, and protection circuits |
|
|
Standardized chassis design for easy cabinet installation |
|
|
Applications |
|
|
Widely used in wireless communication |
|
|
Medical |
|
|
Electromagnetic compatibility and other fields |
|

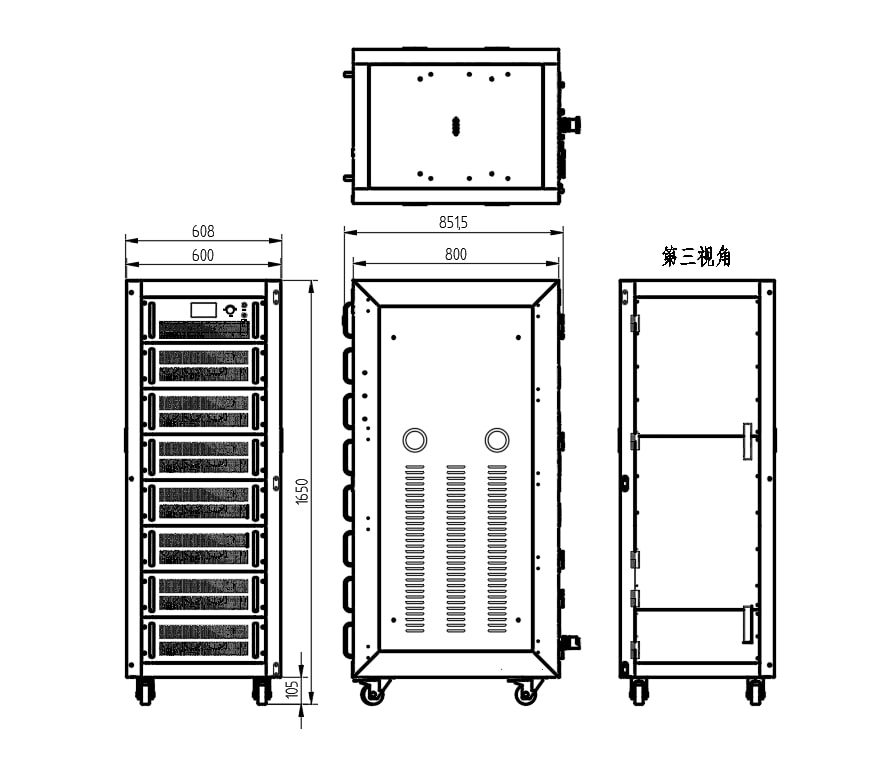

Outline

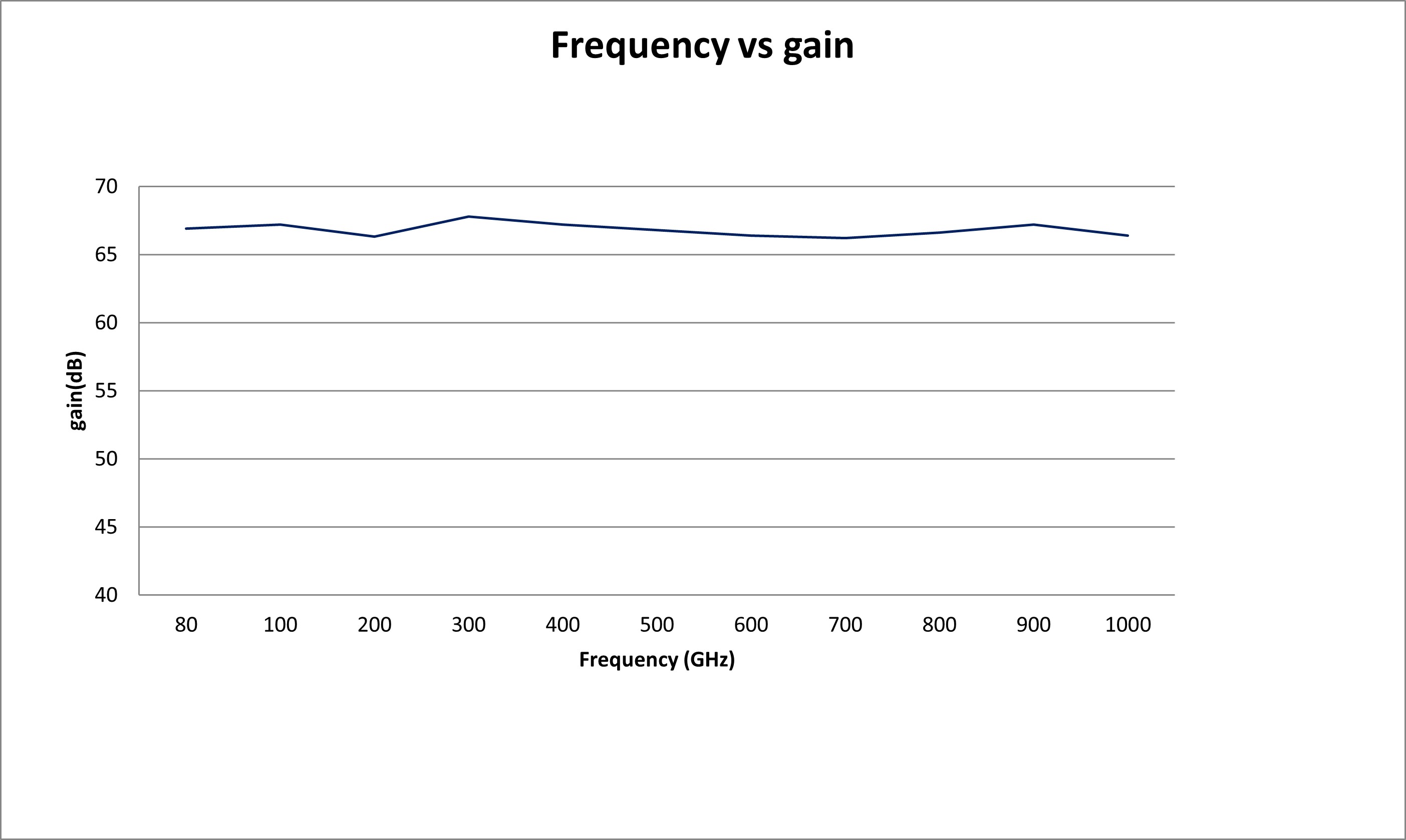

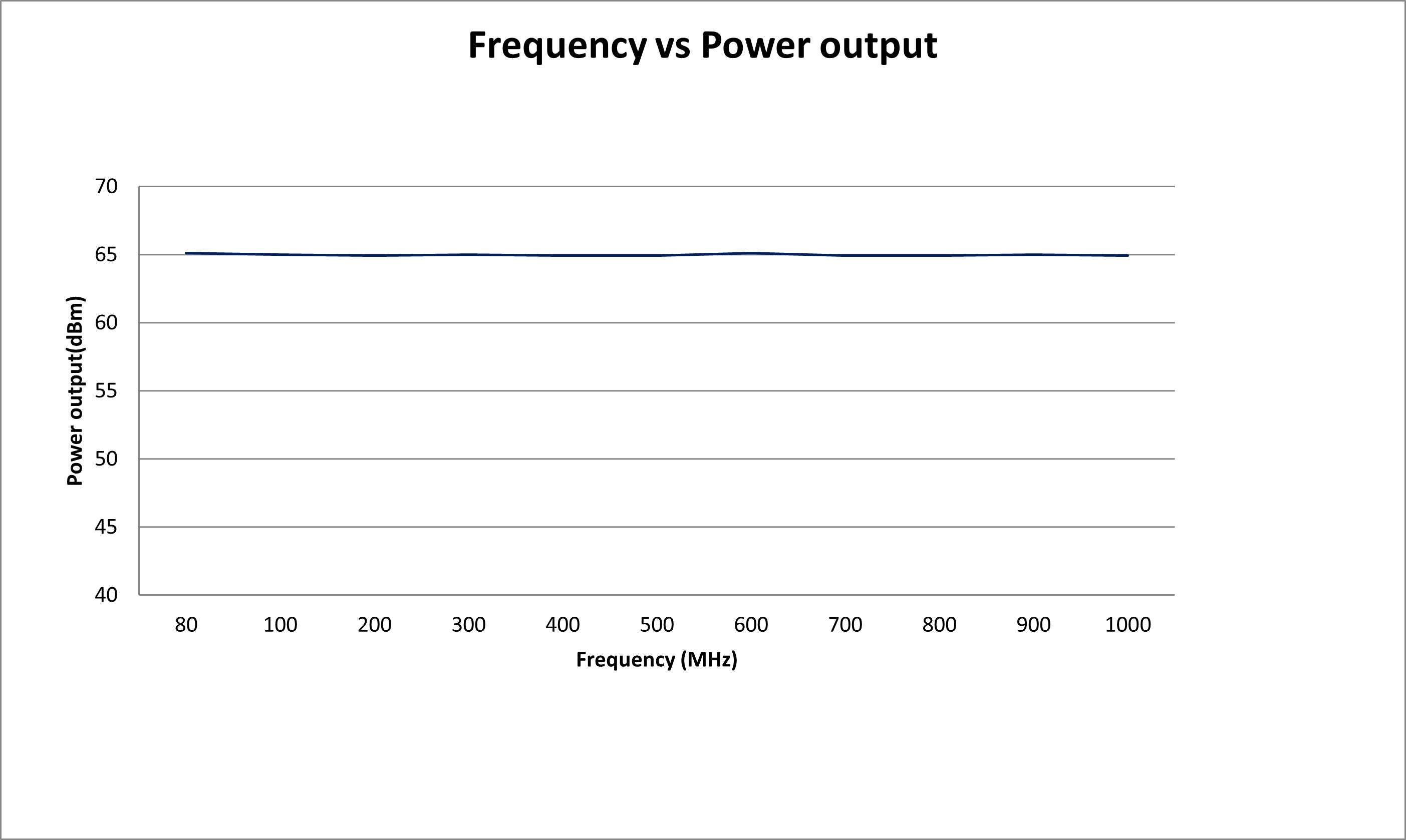

Plot
Additional information
| Min Frequency | |
|---|---|
| Max Frequency | |
| Gain (dBi) | 65 |
| VSWR | 2 |
| Output Power(W) | 3000 |
| Flatness (dB) | ±3 |
| Voltage (V) | 380 |
| Power Dissipation (W) | 18000 |
