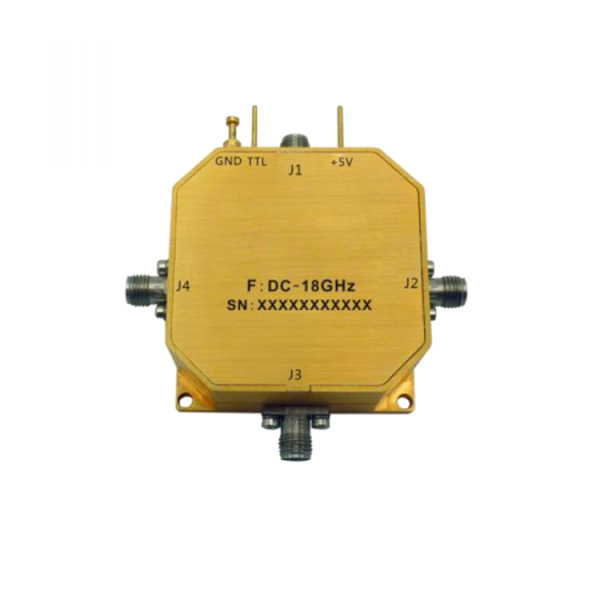

Absorptive Coaxial DPDT Switch DC – 18GHz .ODS0400001800A

HOT

Absorptive Coaxial DPDT Switch DC – 18GHz .ODS0400001800A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range is DC-18GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: ODS0400001800A Categories: Active Device, DPDT, Switch

Description



PDF

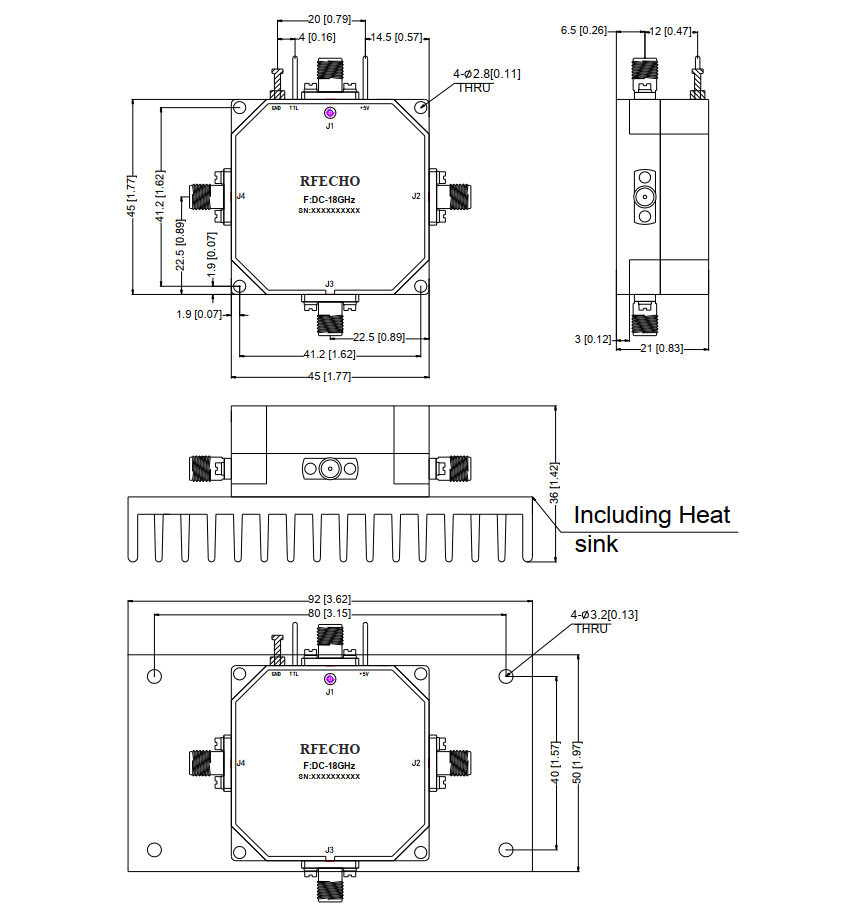

Outline



text





Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

18

VSWR (Max.)

2

Switch Type

DPDT

RF Input Power (W)

10

Insertion Loss (dB)

3.5
