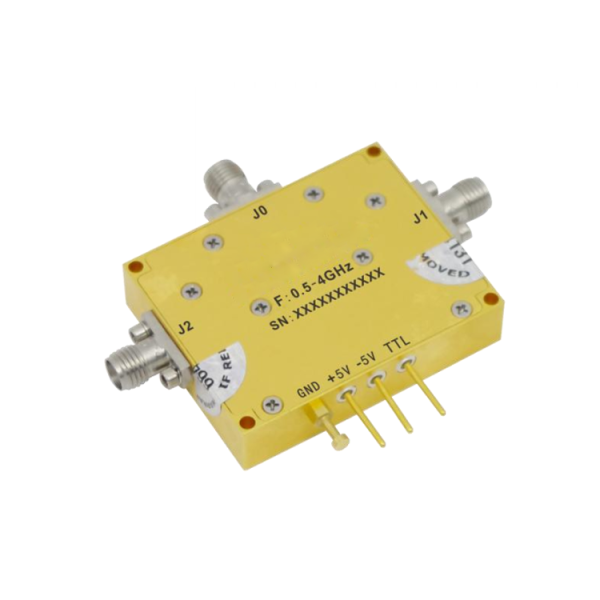

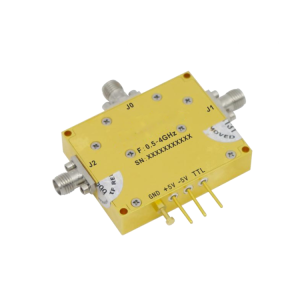

Absorptive Coaxial SP2T Switch from 0.5GHz to 4GHz .OSA0200500400C
Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.5GHz to 4GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.
Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.
- Description
- Additional information
- Reviews (0)
Additional information
| Min. Frequency (GHz) | 0.5 |
|---|---|
| Max. Frequency (GHz) | 4 |
| VSWR (Max.) | |
| Switch Type | SP2T |
| RF Input Power (W) | 5 |
| Insertion Loss (dB) | 1.5 |
