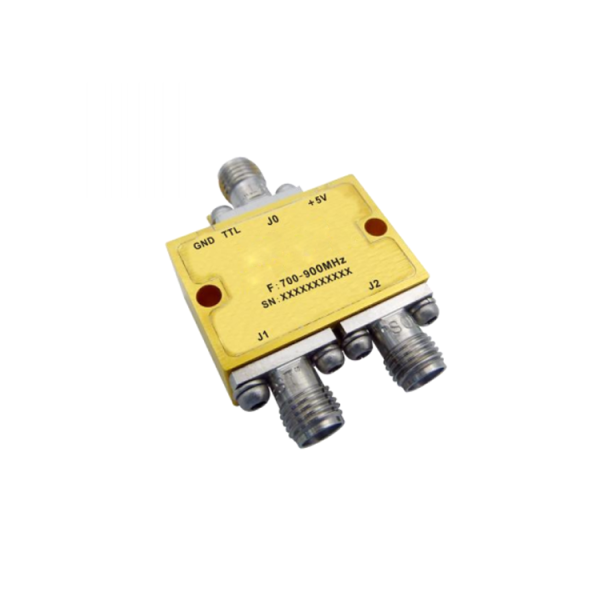

Absorptive Coaxial SP2T Switch from 0.7GHz to 0.9GHz .OSR0200700090A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.7GHz to 0.9GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSR0200700090A Categories: Active Device, Routing, SP2T, Switch

Description



PDF

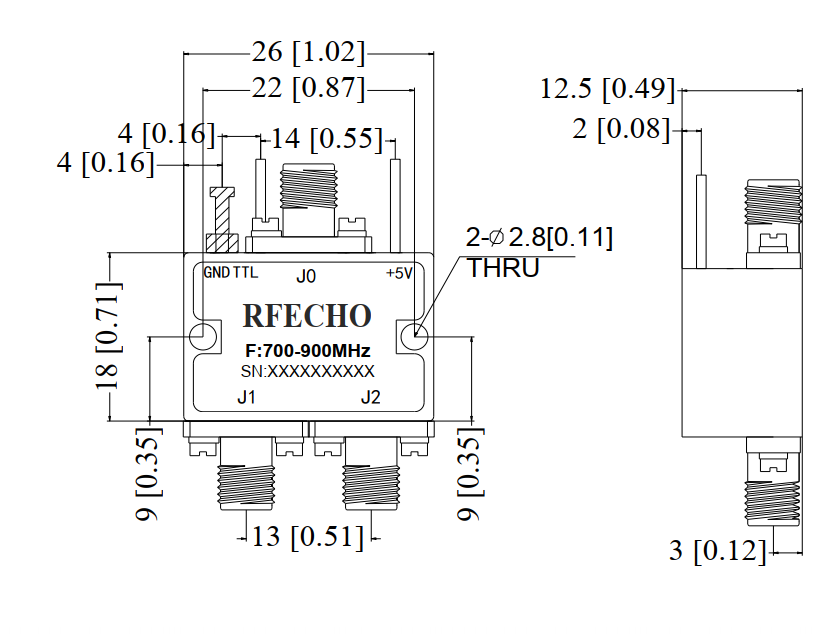

Outline



text





Additional information

Min. Frequency (GHz)

0.7

Max. Frequency (GHz)

0.9

VSWR (Max.)

1.2

Switch Type

SP2T

RF Input Power (W)

1

Insertion Loss (dB)

0.3
