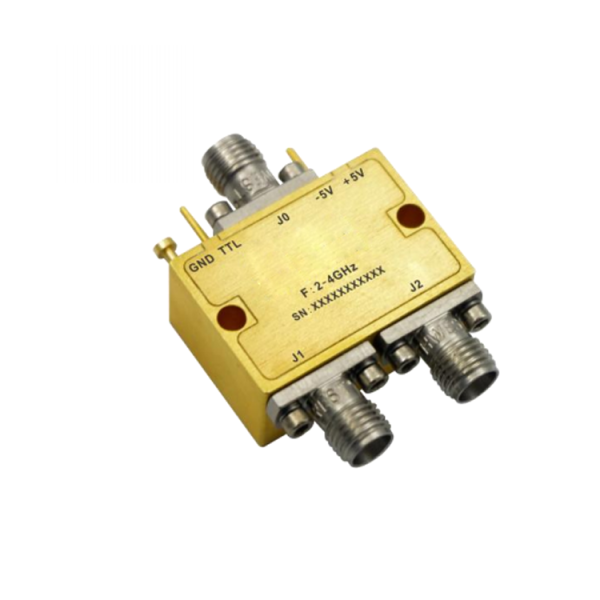

Absorptive Coaxial SP2T Switch from 2GHz to 4GHz .OSA0202000400F

HOT

Absorptive Coaxial SP2T Switch from 2GHz to 4GHz .OSA0202000400F

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 2GHz to 4GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0202000400F Categories: Active Device, Routing, SP2T, Switch

Description



PDF

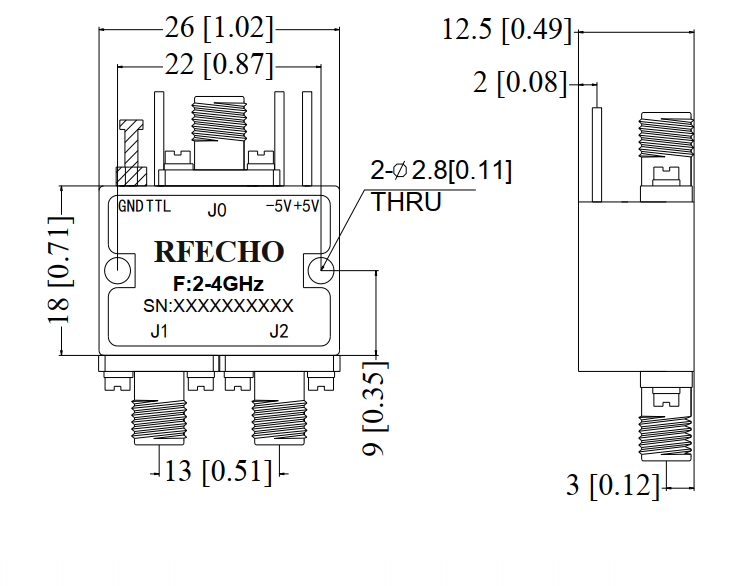

Outline



text





Additional information

Min. Frequency (GHz)

2

Max. Frequency (GHz)

4

VSWR (Max.)

1.3

Switch Type

SP2T

RF Input Power (W)

1

Insertion Loss (dB)

1.3
