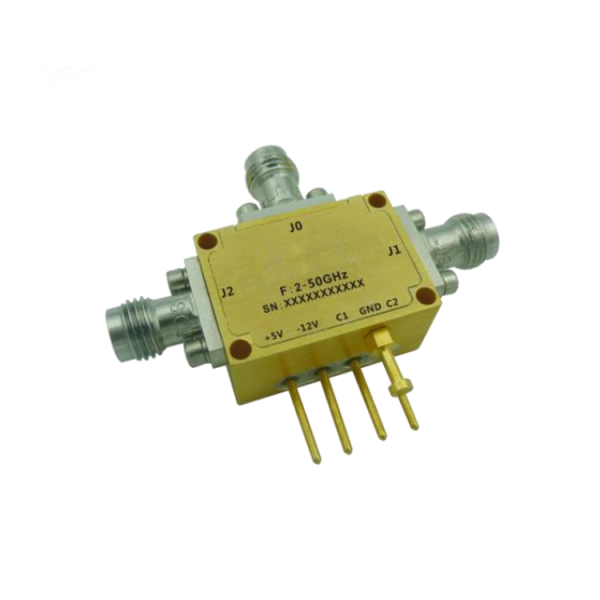

Absorptive Coaxial SP2T Switch from 2GHz to 50GHz .OSR0202005000A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 2GHz to 50GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSR0202005000A Categories: Active Device, Routing, SP2T, Switch

Description



PDF

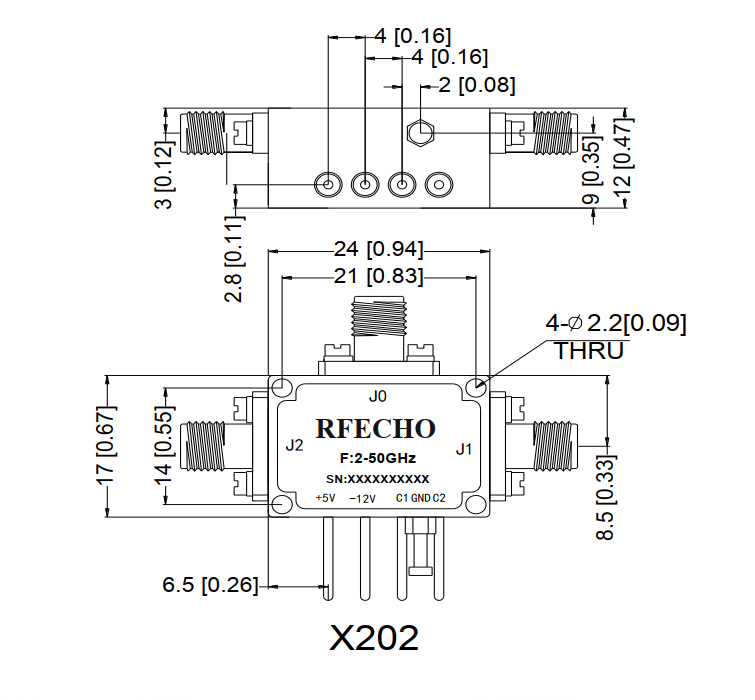

Outline



text





Additional information

Min. Frequency (GHz)

2

Max. Frequency (GHz)

50

VSWR (Max.)

2

Switch Type

SP2T

RF Input Power (W)

0.5

Insertion Loss (dB)

6
