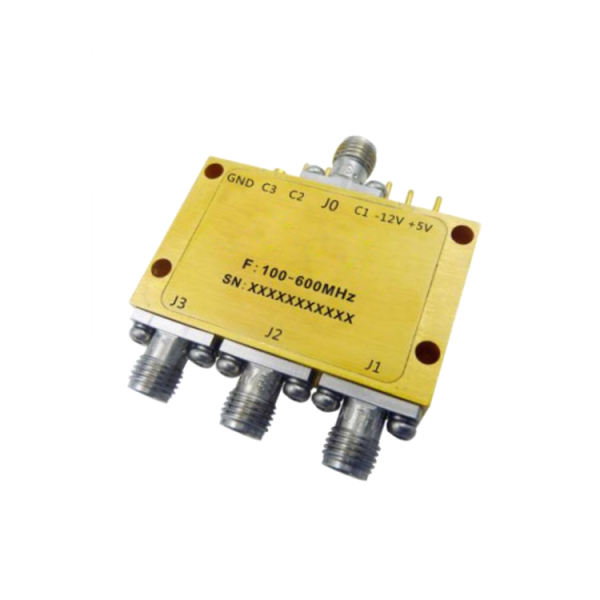

Absorptive Coaxial SP3T Switch from 0.1GHz to 0.6GHz .OSA0300100060B

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.1GHz to 0.6GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0300100060B Categories: Active Device, SP3T, Switch

Description



PDF

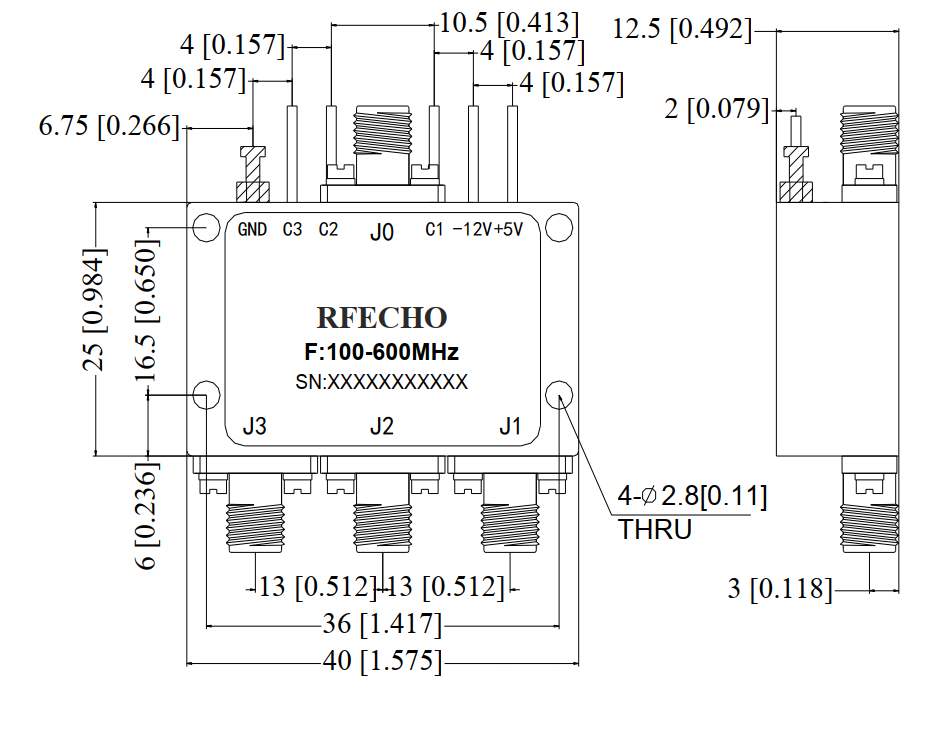

Outline



text





Additional information

Min. Frequency (GHz)

0.1

Max. Frequency (GHz)

0.6

VSWR (Max.)

1.2

Switch Type

SP3T

RF Input Power (W)

1

Insertion Loss (dB)

0.5
