Absorptive Coaxial SP3T Switch from 2GHz to 8GHz .OSA0302000800A

HOT

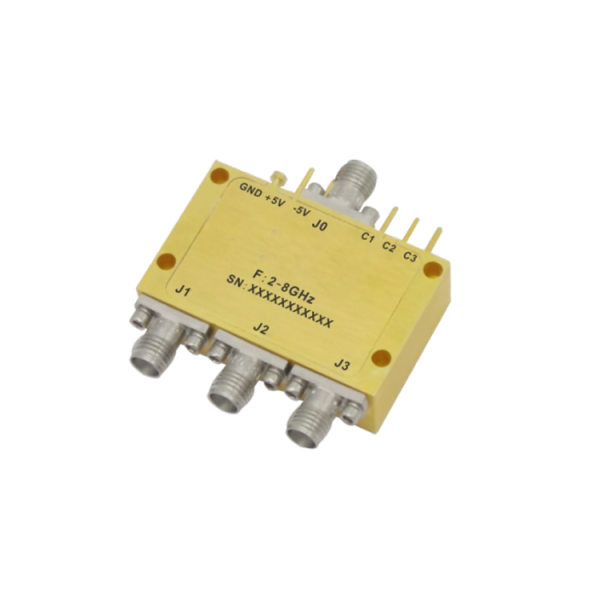

Absorptive Coaxial SP3T Switch from 2GHz to 8GHz .OSA0302000800A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 2GHz to 8GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0302000800A Categories: Active Device, SP3T, Switch

Description



PDF

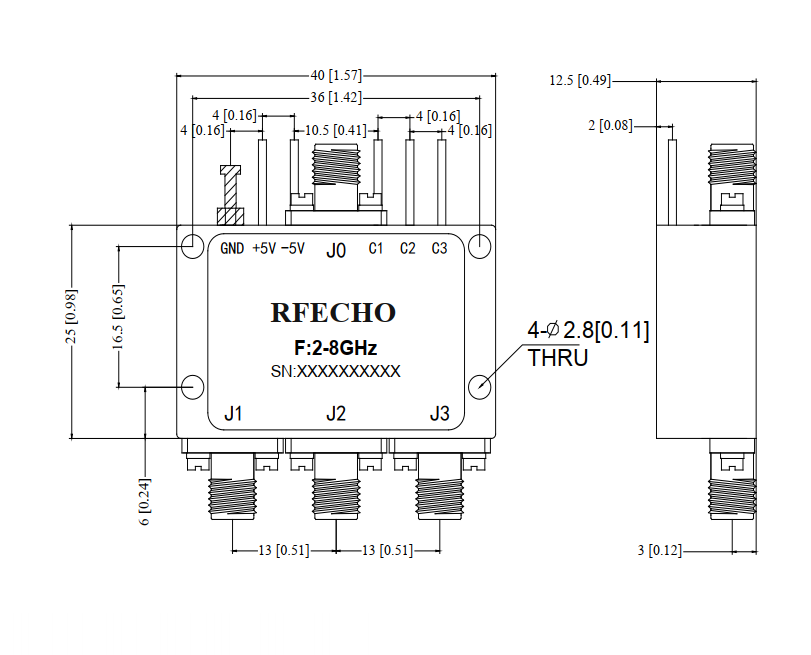

Outline



text





Additional information

Min. Frequency (GHz)

2

Max. Frequency (GHz)

8

VSWR (Max.)

1.3

Switch Type

SP3T

RF Input Power (W)

1

Insertion Loss (dB)

1.8
