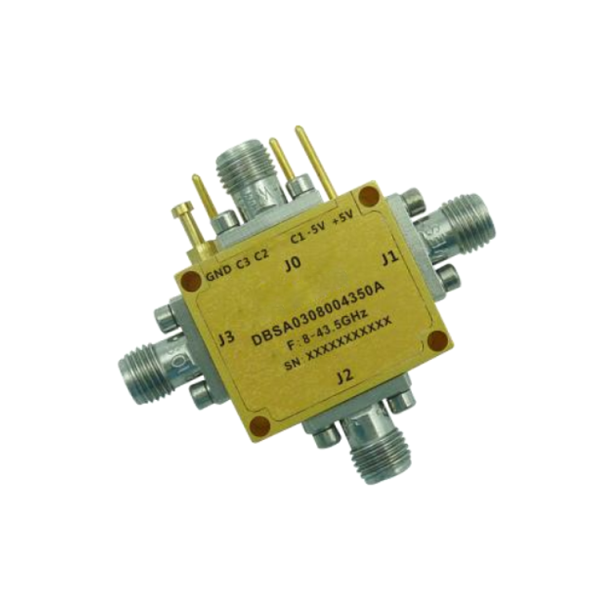

Absorptive Coaxial SP3T Switch from 8GHz to 43.5GHz .OSA0308004350A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 8GHz to 43.5GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0308004350A Categories: Active Device, SP3T, Switch

Description



PDF

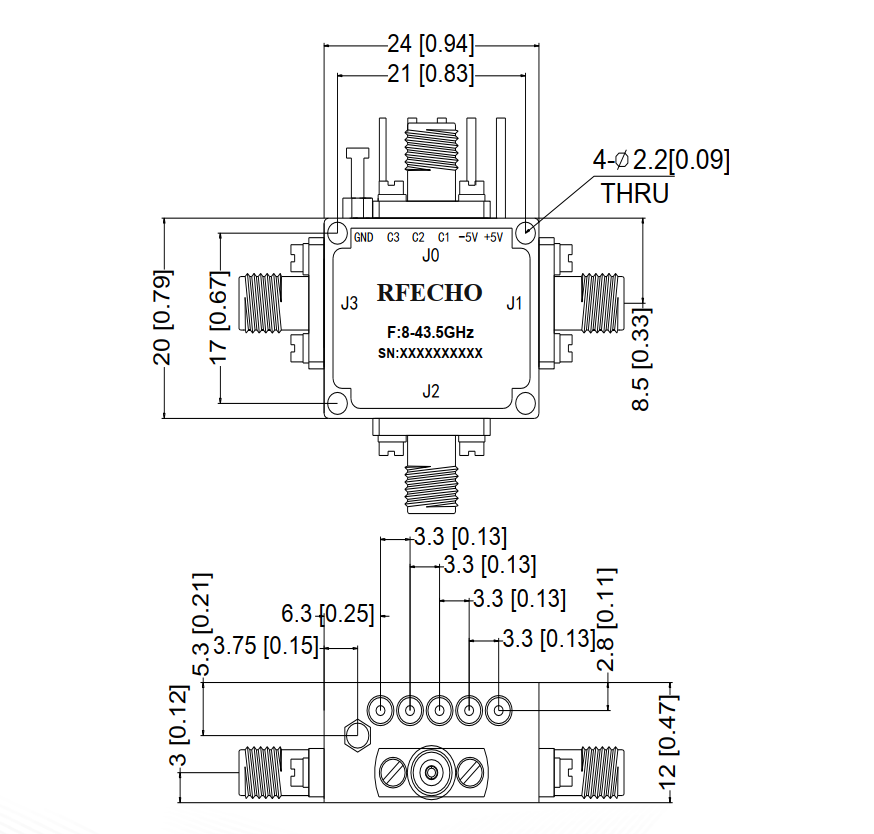

Outline



text





Additional information

Min. Frequency (GHz)

8

Max. Frequency (GHz)

43.5

VSWR (Max.)

2

Switch Type

SP3T

RF Input Power (W)

23dBm

Insertion Loss (dB)

3
